10 Pair Telephone Cable - Coil of 90 Meter
10 Pair Telephone Cable - Coil of 90 Meter
Sold by: MA Tech

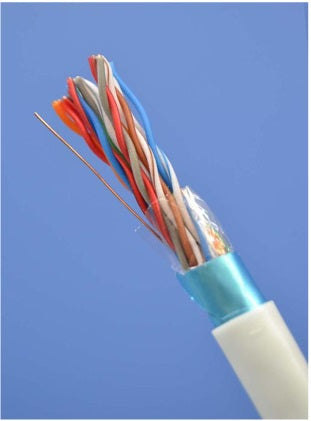

🔷 10 Pair Telephone Cable – Coil of 90 Meters
Shielded 22 AWG Solid Copper Communication Cable
Part Type: 10 Pair | F/UTP | 22 AWG | PVC Jacket | 90M Coil
📘 Product Overview
The 10 Pair Shielded Telephone Cable is a high-quality communication cable designed for reliable voice and low-frequency signal transmission. Constructed with solid 22 AWG bare copper conductors, double shielding (Mylar + Aluminium Foil), and a dedicated drain wire, this cable ensures low crosstalk, excellent noise immunity, and signal integrity in complex installations.
Ideal for use in PBX systems, intercoms, data networks, and control wiring, the cable comes in a durable PVC sheath with an integrated rip cord for easy and clean installation.
10 Pair Shielded Telephone Cable aik high-quality communication cable hai jo reliable voice aur low-frequency signal transmission ke liye design ki gayi hai. Is cable mein solid 22 AWG bare copper conductors, double shielding (Mylar + Aluminium Foil), aur ek dedicated drain wire shamil hai, jo low crosstalk, behtareen noise immunity, aur signal integrity ko ensure karta hai — khaaskar un jagahon par jahan wiring complex hoti hai.
Yeh cable PBX systems, intercoms, data networks, aur control wiring ke liye ideal hai. Isay ek mazboot PVC sheath mein pack kiya gaya hai jisme integrated rip cord bhi hoti hai, jo installation ko asaan aur saf banata hai.
✅ Key Features
- Solid Bare Copper Conductors – 22 AWG (0.6 mm)
- Double Shielding – Mylar + Aluminium Foil
- 24 AWG Drain Wire (0.4 mm)
- Grey PVC Jacket with Rip Cord
- Minimal Crosstalk & Signal Interference
- All Pairs Usable Simultaneously
- Supplied in 90-Meter Coils or optional 1000M Drums
- Suitable for voice, data, alarm, and telecom applications
📊 Technical Specifications
Attribute | Specification |
Number of Pairs | 10 (20 Conductors) |
Conductor Material | Solid Bare Copper |
Conductor Diameter | 0.6 mm (22 AWG) |
Insulation Material | General PVC |
Insulation Diameter | 1.0 mm ± 0.10 mm |
Shield Type | Spiral Mylar + Spiral Aluminium Foil |
Drain Wire | 0.4 mm Solid Bare Copper (24 AWG) |
Jacket Material | Grey PVC with Rip Cord |
Outer Jacket Diameter | 8.4 mm ± 0.20 mm |
Operating Temperature | Up to 60°C |
Rated Voltage | 30 V |
Conductor DC Resistance (20°C) | < 7.31 Ω / 100 m |
Insulation Resistance (20°C) | > 200 MΩ·m |
Approx. Cable Weight (90m) | ~11 – 12 kg |
Packaging | Coil – 90 Meters (or Drum – 1000M) |
🧪 Electrical Characteristics
Parameter | Value |
Conductor DC Resistance | < 7.31 Ω / 100 m |
Insulation Resistance | > 200 MΩ·m |
Voltage Rating | 30V |
Temperature Rating | 60°C |
Crosstalk | Minimal |
Shielding Efficiency | High (Dual Shielding) |
📦 Packing Information
Details | Specification |
Packing Type | Coil or Drum |
Coil Length | 90 meters |
Optional Drum Length | 1000 meters |
Approximate Weight | 11 – 12 kg (90M) |
Jacket Color | Grey |
Meter Marking | Yes |
🎯 Applications
- Telephone System Wiring
- PBX and Voice Communication
- Intercoms and Paging Systems
- Access Control and Security
- Industrial Control Wiring
Design
🔧 PONY CABLES – Engineered for Communication Clarity
📦 Ready in 90M Coils or 1000M Drums | RoHS Compliant | Dual Shielded for Signal Reliability
