🔷 10 Pair Telephone Cable – Sold by the Meter (Drum Packaging)
Category: Indoor Telephone/Data Cable | Shielded | PVC Jacket
📘 Product Overview

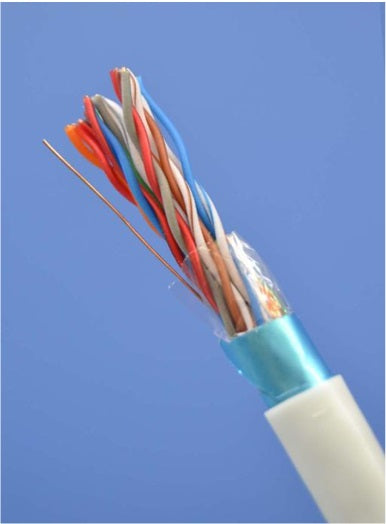

The 10 Pair Telephone Cable is a robust and reliable solution for multi-line voice communication and analog signal transmission. Engineered with solid bare copper 22 AWG conductors, this cable ensures high signal integrity, low crosstalk, and excellent noise protection.
It includes dual shielding (Mylar + Aluminium Foil), a tinned copper drain wire, and a grey PVC outer jacket with a nylon rip cord for quick and easy installation—making it ideal for internal telecom infrastructure and PBX systems.
10 Pair Telephone Cable aik mazboot aur reliable hal hai multi-line voice communication aur analog signal transmission ke liye. Yeh cable 22 AWG solid bare copper conductors ke sath design ki gayi hai jo high signal integrity, low crosstalk, aur behtareen noise protection provide karti hai.
Is cable mein dual shielding (Mylar + Aluminium Foil), tinned copper drain wire, aur grey PVC outer jacket hoti hai. Nylon rip cord bhi shamil hai jo installation ko asaan aur tez banata hai — isay internal telecom infrastructure aur PBX systems ke liye ideal banata hai.
✅ Key Features
- Solid Bare Copper Conductors – 22 AWG (0.6 mm)
- Dual Shielding: Mylar Tape + Aluminium Foil
- PVC Insulated and Sheathed
- Nylon Rip Cord for Easy Installation
- Low Crosstalk and Stable Signal Performance
- Ideal for Voice, Analog, and Signal Communication
- Drum Packaging – Sold by the Meter
📊 Technical Specifications
| Attribute | Specification |
| Number of Pairs | 10 (20 Conductors) |
| Conductor Diameter | 0.6 mm ± 0.01 mm |
| Conductor Material | Solid Bare Copper |
| Insulation Diameter | 1.0 mm ± 0.10 mm |
| Insulation Material | General PVC |
| Shielding (1) | Spiral Mylar Transparent Tape |
| Shielding (2) | Spiral Aluminium Foil |
| Drain Wire | 1 x 0.4 mm Solid Bare Copper (24 AWG) |
| Outer Sheath Material | Grey PVC with Rip-Cord |
| Outer Jacket Diameter | 8.4 mm ± 0.20 mm |
| Operating Temperature | Up to 60°C |
| Rated Voltage | 30 V |
| DC Conductor Resistance | < 7.31 Ω / 100 m (at 20°C) |
| Insulation Resistance | > 200 MΩ·m (at 20°C) |
| Packaging | Drum (Available per meter) |
🎯 Applications
- Internal Telephone Lines
- PBX and Multi-line Phone Systems
- Intercom & Analog Signaling
- Security and Surveillance Wiring
- Structured Cabling in Commercial Buildings
Design
🛠️ Engineered by PONY CABLES – The Ultimate Choice for Cabling
💼 Trusted for structured telecom wiring in offices, hotels, campuses, and residential complexes.
