🔷 100 Pair Telephone Cable – Sold by the Meter (Drum Packaging)
Category: Indoor Telephone/Data Cable | Shielded | PVC Jacket
📘 Product Overview
The 100 Pair Telephone Cable is a high-capacity solution designed for large-scale telecommunication and signal distribution systems. It offers exceptional signal integrity, low crosstalk, and superior shielding—perfect for PBX systems, telecom infrastructure, and multi-line voice/data setups.

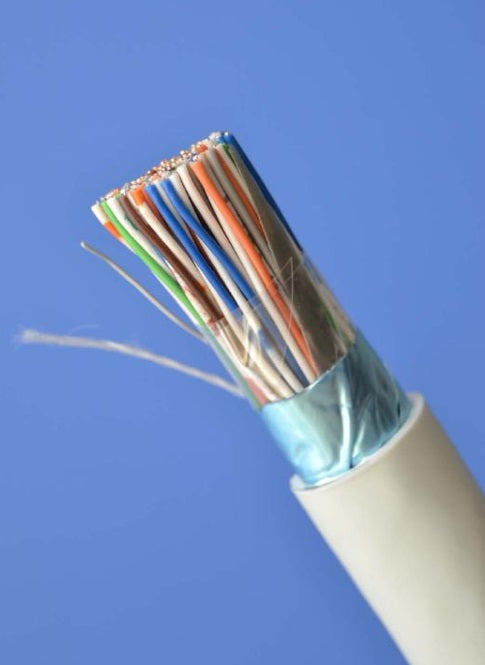

This cable features solid bare copper conductors (22 AWG), spiral Mylar and Aluminium Foil shielding, PP color tape to identify pair groups, and a nylon rip cord for easy jacket removal. Built with a durable grey PVC jacket, it ensures long-lasting indoor performance.
100 Pair Telephone Cable aik high-capacity solution hai jo baray scale ki telecommunication aur signal distribution systems ke liye design kiya gaya hai. Yeh behtareen signal integrity, kam crosstalk, aur superior shielding provide karta hai—jo PBX systems, telecom infrastructure, aur multi-line voice/data setups ke liye bilkul munasib hai.
Is cable mein solid bare copper conductors (22 AWG) hain, spiral Mylar aur Aluminium Foil shielding mojood hai, pair groups ki pehchan ke liye PP color tape lagi hui hai, aur jacket asaani se utarne ke liye nylon rip cord bhi hai. Mazboot grey PVC jacket ke sath bana hua, yeh cable indoor use ke liye lambi muddat tak reliable performance deta hai.
✅ Key Features
- Solid Bare Copper Conductors – 22 AWG (0.6 mm)
- Triple Shielding: PP Color Tape (Every 10 Pairs) + Mylar + Aluminium Foil
- PVC Insulated and Sheathed
- Nylon Rip Cord for Easy Installation
- Low Crosstalk and High Signal Fidelity
- Supports All Pairs Simultaneously
- Drum Packaging – Sold by the Meter
📊 Technical Specifications
| Attribute | Specification |
| Number of Pairs | 100 (200 Conductors) |
| Conductor Diameter | 0.6 mm ± 0.01 mm |
| Conductor Material | Solid Bare Copper |
| Insulation Diameter | 1.0 mm ± 0.10 mm |
| Insulation Material | General PVC |
| Shielding (1) | Spiral PP Color Tape (Each 10 Pairs) |
| Shielding (2) | Spiral Mylar Transparent Shield |
| Shielding (3) | Spiral Aluminium Foil |
| Drain Wire | 1 x 0.4 mm Solid Bare Copper (24 AWG) |
| Outer Sheath Material | Grey PVC with Rip-Cord |
| Outer Jacket Diameter | 16.5 mm ± 0.20 mm |
| Operating Temperature | Up to 60°C |
| Rated Voltage | 30 V |
| DC Conductor Resistance | < 7.31 Ω / 100 m (at 20°C) |
| Insulation Resistance | > 200 MΩ·m (at 20°C) |
| Packaging | Drum (500 or 1000 Meters, sold per meter) |
🎯 Applications
- Central PBX & Multi-Line Telephone Networks
- Intercom & Security Communication Systems
- Analog Signal and Low Voltage Data Transmission
- Large-Scale Commercial or Industrial Installations
Design
🛠️ Engineered by PONY CABLES – The Ultimate Choice for Cabling
💼 Built for structured cabling systems in telecom rooms, network closets, and backbone connections in high-density environments.
