2 Pair PE 24 AWG Jelly Filled Cable
2 Pair PE 24 AWG Jelly Filled Cable
Sold by: MA Tech

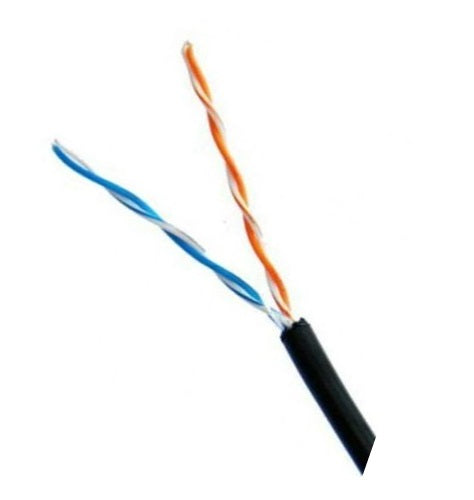

🔷 2 Pair PE 24 AWG Jelly Filled Outdoor Telephone Cable – Coil of 305 Meters
Part #: 3102
Category: Outdoor Telephone Cable | Jelly Filled | Shielded | 305M Coil
📘 Product Overview
The 2 Pair PE Jelly Filled Cable is designed specifically for outdoor telecom and data signal transmission where moisture resistance and durability are critical. Built with 24 AWG solid bare copper conductors, filled with water-blocking jelly, and wrapped in a robust black PE sheath, it delivers reliable performance even in harsh environmental conditions.
This cable is ideal for underground and direct burial applications, providing superior protection against water ingress, corrosion, and external interference.
2 Pair PE Jelly Filled Cable ko khas tor par outdoor telecom aur data signal transmission ke liye design kiya gaya hai jahan moisture resistance aur durability bohot zaroori hoti hai. Yeh cable 24 AWG solid bare copper conductors par mabni hai, jo water-blocking jelly se filled hoti hai aur mazboot black PE sheath mein lapeti hoti hai, jo harsh environmental conditions mein bhi reliable performance deti hai.
Yeh cable underground aur direct burial applications ke liye ideal hai, aur paani ke raster, corrosion, aur external interference se behtareen protection faraham karti hai.
✅ Key Features
- Solid Bare Copper Conductors – 24 AWG (0.5 mm)
- Jelly-Filled for Water Resistance
- Shielded with Aluminium Foil and Mylar Tape
- Black UV-Resistant PE Outer Jacket
- Resistant to Weather, Moisture, and Rodents
- Minimal Crosstalk – High Signal Integrity
- All Pairs Usable Simultaneously
- Supplied in a 305 Meter Coil
- RoHS Compliant
📊 Technical Specifications
Attribute | Specification |
Number of Pairs | 2 (4 Conductors) |
Conductor Diameter | 0.5 mm ± 0.01 mm (24 AWG) |
Conductor Material | Solid Bare Copper |
Insulation Diameter | 1.0 mm ± 0.10 mm |
Insulation Material | PVC |
Filling Compound | Jelly Filled (Water Blocking) |
Shielding | Spiral Aluminium Foil + Mylar Tape |
Drain Wire | Yes – Tinned Copper |
Outer Sheath Material | Black Polyethylene (PE) |
Outer Jacket Diameter | 5.6 mm ± 0.20 mm |
Temperature Rating | 60°C |
Voltage Rating | 30V |
DC Conductor Resistance (20°C) | < 7.31 Ω / 100 m |
Insulation Resistance (20°C) | > 200 MΩ·m |
UV & Moisture Resistance | Excellent |
Packaging | Coil – 305 Meters |
Approximate Weight | ~9 – 10 kg per coil |
🧪 Electrical Characteristics
Parameter | Value |
Conductor Resistance (20°C) | < 7.31 Ω / 100 m |
Insulation Resistance (20°C) | > 200 MΩ·m |
Voltage Rating | 30 V |
Operating Temperature | Up to 60°C |
📦 Packing Information
Details | Specification |
Packing Type | Coil |
Coil Length | 305 meters |
Jacket Color | Black |
Outer Sheath Type | PE (Polyethylene) |
Cable Type | Jelly Filled (Outdoor Use) |
Approx. Weight | ~9 – 10 kg |
🎯 Applications
- Outdoor Telephone Networks
- Intercom Systems
- Data Transmission in Damp Areas
- Underground and Direct Burial Use
- PBX & Analog Communication Systems
Design

🔧 Engineered by PONY CABLES – The Ultimate Choice for Cabling
🛡️ Designed for outdoor durability, performance, and long service life.
