20 Pair Telephone Cable - Coil of 90 Meter

20 Pair Telephone Cable - Coil of 90 Meter

Sold by: MA Tech

Regular price PKR 116,811
Regular price Sale price PKR 116,811
Sale Sold out
Shipping calculated at checkout.

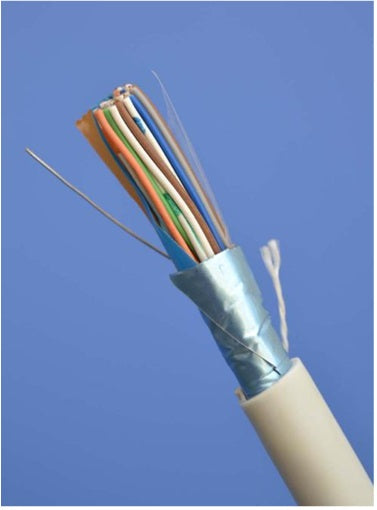

🔷 20 Pair Telephone Cable – Coil of 90 Meters

Shielded 22 AWG Solid Copper Communication Cable
Part Type: 20 Pair | F/UTP | 22 AWG | PVC Jacket | 90M Coil

📘 Product Overview

The 20 Pair Telephone Cable is designed for clear, interference-free voice and data transmission in demanding communication environments. It features solid 22 AWG bare copper conductors, dual shielding (Mylar and Aluminium Foil), and a 24 AWG drain wire for exceptional signal integrity and minimal crosstalk.

With its durable grey PVC sheath, integrated rip cord, and 90-meter coil packaging, it’s ideal for PBX systems, telecom wiring, and control applications where reliability and clean installation are essential.

Key Features

  • Solid Bare Copper Conductors – 22 AWG (0.6 mm)
  • Dual Shielding – Spiral Mylar & Aluminium Foil
  • 24 AWG (0.4 mm) Tinned Copper Drain Wire
  • General PVC Insulated Conductors
  • Durable PVC Outer Jacket with Rip Cord
  • Excellent Crosstalk & Noise Immunity
  • All Pairs Usable Simultaneously
  • Supplied in 90M Coil or 1000M Drum
  • RoHS Compliant & High Performance

📊 Technical Specifications

Attribute Specification
Number of Pairs 20 (40 Conductors)
Conductor Material Solid Bare Copper
Conductor Diameter 0.6 mm (22 AWG)
Insulation Material General PVC
Insulation Diameter 1.0 mm ± 0.10 mm
Shielding (1) Spiral Mylar Transparent Shield
Shielding (2) Spiral Aluminium Foil Shield
Drain Wire 0.4 mm Solid Bare Copper (24 AWG)
Outer Jacket Material Grey PVC with Rip Cord
Outer Jacket Diameter 10.3 mm ± 0.20 mm
Operating Temperature Up to 60°C
Rated Voltage 30 V
Conductor DC Resistance (20°C) < 7.31 Ω / 100 m
Insulation Resistance (20°C) > 200 MΩ·m
Approx. Cable Weight (90m) ~15 – 17 kg
Packaging Options Coil – 90 Meters or Drum – 1000 Meters

🧪 Electrical Characteristics

Parameter Value
Conductor DC Resistance < 7.31 Ω / 100 m
Insulation Resistance > 200 MΩ·m
Voltage Rating 30V
Temperature Rating 60°C
Crosstalk Minimal
Shielding Efficiency High (Dual Shielding)

📦 Packing Information

Details Specification
Packing Type Coil or Drum
Coil Length 90 meters
Optional Drum Length 1000 meters
Approximate Weight 15 – 17 kg (90M)
Jacket Color Grey
Meter Marking Yes

🎯 Applications

  • Telephone Exchange & PBX Systems
  • Intercom & Paging Networks
  • Access Control & Security Systems
  • Alarm Wiring & Industrial Control
  • Structured Voice Cabling Installations

Design

🔧 Engineered by PONY CABLES – Trusted for Quality and Communication Clarity

📦 Available in 90M Coils or 1000M Drums | RoHS Compliant | Optimized for Signal Protection and Longevity
