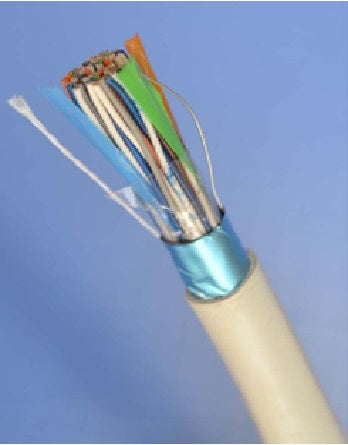

25 Pair F/UTP 24 AWG Cable - Meter (Drum)

25 Pair F/UTP 24 AWG Cable - Meter (Drum)

Sold by: MA Tech

Regular price PKR 1,452
Regular price Sale price PKR 1,452
Sale Sold out
Shipping calculated at checkout.

25 Pair F/UTP 24 AWG Networking Cable


High-Performance Shielded Multi-Pair Communication Cable
Part Type: 25 Pairs | F/UTP | PVC Jacket | 24 AWG | Drum


📘 Product Overview

This 25 Pair F/UTP Networking Cable is engineered for high-performance structured cabling systems. With 50 conductors (25 twisted pairs) made from solid bare copper, triple shielding, and a durable PVC jacket, this cable ensures minimal interference, maximum signal integrity, and long-distance reliability.

Wrapped in protective Mylar and aluminum foil shields, and integrated with a tinned copper drain wire, it’s ideal for voice, data, and control signal transmission across large-scale infrastructures such as telecom, CCTV, BMS, and industrial automation systems.


Yeh 25 Pair F/UTP Networking Cable high-performance structured cabling systems ke liye tayar ki gayi hai. Is cable mein 50 conductors (25 twisted pairs) hotay hain jo solid bare copper se banay gaye hain. Triple shielding aur mazboot PVC jacket ke sath, yeh cable interference ko kam karti hai, signal integrity ko barqarar rakhti hai, aur long-distance applications ke liye reliable hai.

Is cable ko Mylar aur aluminum foil shields se protect kiya gaya hai, jabke tinned copper drain wire bhi shamil hai taake grounding aur shielding aur behtar ho. Yeh cable voice, data, aur control signal transmission ke liye ideal hai—khaaskar telecom, CCTV, BMS, aur industrial automation jaise bade infrastructure projects mein.


Key Features

  • Category: 25 Pair F/UTP
  • Conductor: Solid Bare Copper (24 AWG / 0.5 mm)
  • Insulation: General PVC (1.0 mm Ø ± 0.10 mm)
  • Shielding:
  • Spiral PP Color Tape (each 10 pairs)
  • Transparent Mylar Tape (spiral)
  • Aluminium Foil Wrap (overall)
  • Drain Wire: 0.4 mm Tinned Copper
  • Jacket: Grey PVC with Rip Cord (Ø 11.1 mm ± 0.20 mm)
  • Resistance:
  • DC Conductor: < 7.31 Ω / 100m
  • Insulation Resistance: > 200 MΩ·m
  • Rated Temperature: 60°C
  • Rated Voltage: 30V
  • Packaging Options:
  • 500 Meters (Standard Drum)
  • 1000 Meters (Large Drum)

📊 Technical Specifications

Attribute Specification
Number of Pairs 25 (50 conductors)
Conductor Diameter 0.5 mm (24 AWG)
Insulation Diameter 1.0 mm ± 0.10 mm
Conductor Material Solid Bare Copper
Insulation Material PVC (General Purpose)
Pair Formation 2 twisted wires per pair
Shield #1 Spiral PP Color Tape (each 10 pairs)
Shield #2 Spiral Transparent Mylar Tape
Shield #3 Spiral Aluminium Foil
Drain Wire 0.4 mm Tinned Copper
Jacket Diameter 11.1 mm ± 0.20 mm
Jacket Material Grey PVC (with Nylon Rip Cord)
Cable Type F/UTP – Foiled Unshielded Twisted Pair
Cable Weight 115–125 kg/km

🧪 Electrical Characteristics (at 20°C)

Parameter Value
Conductor DC Resistance < 7.31 Ω / 100 meters
Insulation Resistance > 200 MΩ·m
Rated Voltage 30V
Rated Operating Temperature 60°C
Mutual Capacitance < 52 pF/m
Crosstalk (NEXT) Excellent (Due to shielding)

📦 Packing Details

Attribute Details
Packing Type Wooden/Plastic Drum
Available Lengths 500 meters / 1000 meters
Coil Weight ~57.5 – 125 kg (based on drum size)
Outer Markings Length markings per meter, product code
Labeling Drum sticker with part number, specs

🎯 Ideal Applications
  • PBX & Telephone Systems
  • Access Control & Intercom Networks
  • CCTV & Video Transmission
  • Structured Cabling (Analog or Digital)
  • Building Management Systems (BMS)
  • Security Alarm Systems
  • Control Signal Wiring

Design


🔧 PONY CABLES – Reliable Performance for Critical Infrastructure.

📦 Available in 500m or 1000m Drums | Foil Shielded | Low Crosstalk | RoHS Compliant
