3 Pair Telephone Cable
3 Pair Telephone Cable
Sold by: MA Tech

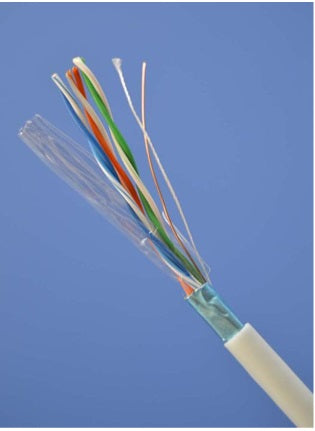

🔷 3 Pair Telephone Cable – Coil of 90 Meters
Shielded 22 AWG Solid Copper Communication Cable
Part Type: 3 Pair | Foil Shielded | 22 AWG | PVC Jacket | 90M Coil
📘 Product Overview
The 3 Pair Shielded Telephone Cable is designed for consistent voice transmission and secure low-frequency signal communication. It features solid bare copper conductors, spiral aluminium foil shielding, and a drain wire to minimize signal loss and interference.
Ideal for telephone wiring, intercoms, and access control systems, this cable ensures low crosstalk, high reliability, and a compact structure—perfect for both residential and commercial installations. The grey PVC outer jacket includes a nylon rip cord for quick stripping and easier installation.
3 Pair Shielded Telephone Cable munazzam awaz ki transmission aur mehfooz low-frequency signal communication ke liye design ki gayi hai. Is mein solid bare copper conductors, spiral aluminium foil shielding, aur drain wire mojood hai jo signal loss aur interference ko kam karta hai.
Yeh cable telephone wiring, intercoms, aur access control systems ke liye behtareen hai, jahan low crosstalk, ziada reliability, aur compact structure zaroori hota hai. Grey PVC outer jacket ke sath nylon rip cord bhi hai jo jaldi stripping aur asani se installation ko mumkin banata hai.
✅ Key Features
- Solid Bare Copper Conductors – 22 AWG (0.6 mm)
- PVC Insulated Twisted Pairs
- Spiral Aluminium Foil Shield – For EMI protection
- Tinned Copper Drain Wire – 24 AWG (0.4 mm)
- Grey PVC Jacket with Nylon Rip Cord
- All Pairs Can Be Used Simultaneously
- No Cross Talk or Signal Interference
- Mylar Protection Layer
- Supplied in 90-Meter Coils
📊 Technical Specifications
Attribute | Specification |
Number of Pairs | 3 (6 Conductors) |
Conductor Material | Solid Bare Copper |
Conductor Diameter | 0.6 mm (22 AWG) |
Insulation Material | General PVC |
Insulation Diameter | 1.0 mm ± 0.10 mm |
Shield Type | Spiral Aluminium Foil |
Drain Wire | 0.4 mm Solid Tinned Copper (24 AWG) |
Jacket Material | Grey PVC with Rip Cord |
Outer Jacket Diameter | 5.9 mm ± 0.20 mm |
Operating Temperature | Up to 60°C |
Rated Voltage | 30 V |
Conductor DC Resistance (20°C) | < 7.31 Ω / 100 m |
Insulation Resistance (20°C) | > 200 MΩ·m |
Approx. Cable Weight (90m) | ~6.0 – 7.0 kg |
Packaging | Coil – 90 Meters |
🧪 Electrical Characteristics
Parameter | Value |
Conductor DC Resistance | < 7.31 Ω / 100 m |
Insulation Resistance | > 200 MΩ·m |
Voltage Rating | 30V |
Temperature Rating | 60°C |
Crosstalk | Negligible |
Shielding Efficiency | High (Aluminium Foil) |
📦 Packing Information
Details | Specification |
Packing Type | Coil |
Coil Length | 90 meters |
Approximate Weight | 6.0 – 7.0 kg |
Marking | Meter-marked with part and batch number |
🎯 Applications
- Telephone Systems
- Access Control
- Intercom & Paging Systems
- Security and Alarm Cabling
- Low-Frequency Data Communication
Design

📦 Ready-to-use in 90M Coils | RoHS Compliant | Shielded for Signal Clarity
