30 Pair Telephone PVC Cable – Meter (Drum)
30 Pair Telephone PVC Cable – Meter (Drum)
Sold by: MA Tech
🔷 30 Pair Telephone PVC Cable – Meter (Drum)
Part #: 3030
Type: PVC Telephone Cable | Pairs: 30 | Conductor: Copper 22AWG | Packaging: 500m / 1000m Drum
📘 Product Overview

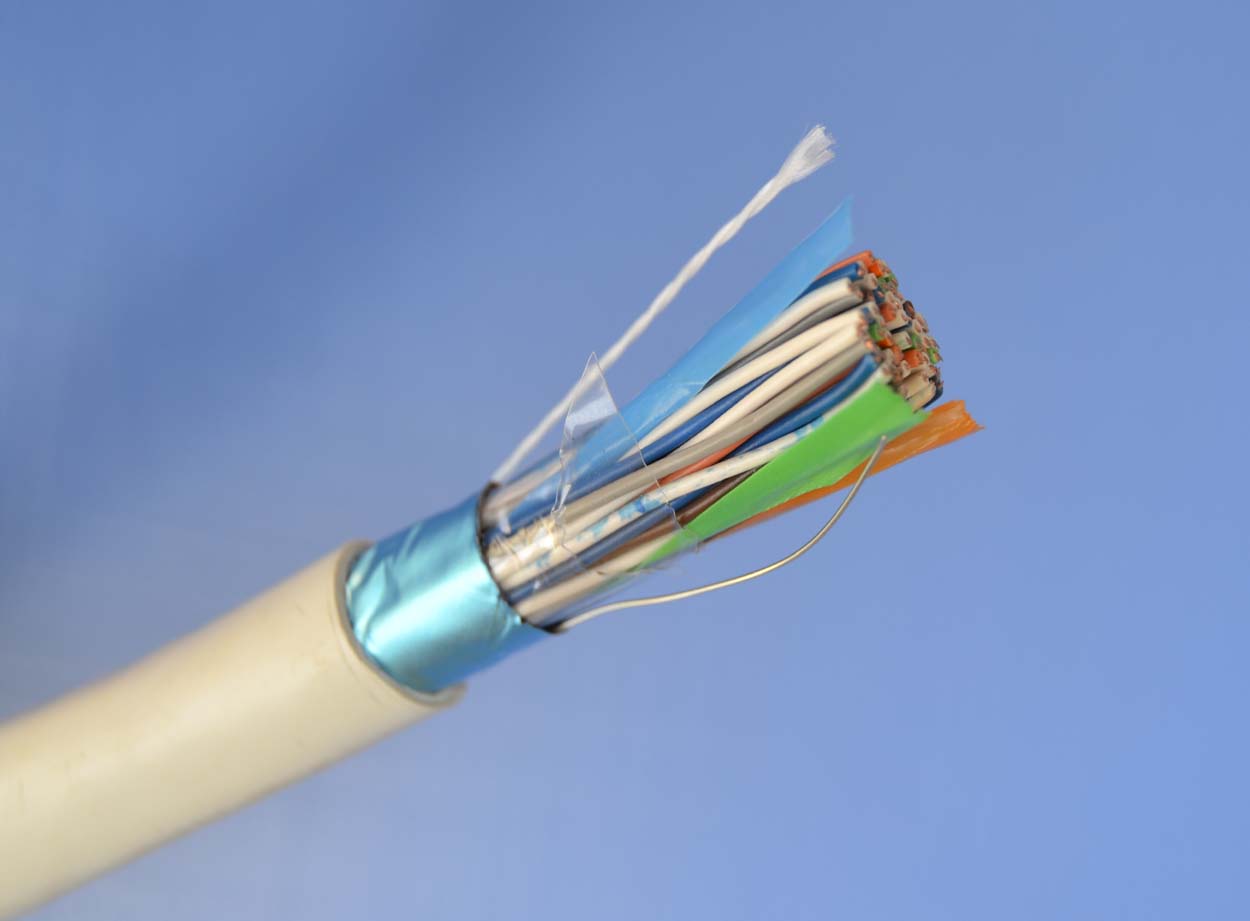

The 30 Pair Telephone PVC Cable is a high-capacity communication cable designed for telephone networks, PBX systems, and other voice/data transmission systems. Each of the 30 twisted pairs is crafted from 22AWG (0.6mm) solid copper conductors, with aluminum foil shielding and Mylar protection for maximum noise reduction.
This cable includes a 24 AWG (0.6mm) drain wire for effective grounding, a nylon rip cord for easy installation, and supports simultaneous use of all 30 pairs without crosstalk—making it ideal for demanding installations and trunk cabling.
30 Pair Telephone PVC Cable aik high-capacity communication cable hai jo telephone networks, PBX systems, aur doosri voice/data transmission applications ke liye design ki gayi hai. Is cable ke 30 twisted pairs 22AWG (0.6mm) solid copper conductors se banay gaye hain, jo aluminum foil shielding aur Mylar protection ke sath aate hain taake noise ko minimum kiya ja sake.
Ismein 24AWG (0.6mm) ka drain wire bhi shamil hai jo effective grounding provide karta hai, aur nylon rip cord installation ko asaan banata hai. Yeh cable sab 30 pairs ko ek saath bina kisi crosstalk ke use karne ki support karti hai—jo isay demanding installations aur trunk cabling ke liye ideal banata hai.
✅ Key Features
- Number of Pairs: 30
- Conductor: 22 AWG Solid Copper (0.6 mm)
- Drain Wire: 24 AWG (0.6 mm)
- Twisting: Twisted Pair Configuration
- Shielding: Aluminum Foil + Mylar Protection
- Crosstalk: Virtually Eliminated
- Simultaneous Use: All 30 Pairs
- Rip Cord: Yes (Nylon)
- Packaging: 500 meters / 1000 meters (Drum)
Design:
📊 Technical Specifications
| Parameter | Specification |
| Cable Type | Twisted Pair Telephone Cable |
| Number of Pairs | 30 |
| Conductor Size | 22 AWG (0.6 mm) |
| Drain Wire Size | 24 AWG (0.6 mm) |
| Shielding | Aluminum Foil |
| Additional Protection | Mylar Layer |
| Rip Cord | Yes (Nylon) |
| Crosstalk Protection | Yes (Low to None) |
| Simultaneous Use | All pairs supported |
| Jacket Material | PVC |
| Packaging Options | 500 meters / 1000 meters (Drum) |
| Weight | 72 kg (for 1000m drum) |
CONSTRUCTION
CHARACTERISTICS
