300/500V CU/PVC/PVC 3183Y 03 Core Flexible Cable (Coil of 90 Mtrs - 0.75mm)
300/500V CU/PVC/PVC 3183Y 03 Core Flexible Cable (Coil of 90 Mtrs - 0.75mm)
Sold by: MA Tech
🔷 300/500V CU/PVC/PVC 3183Y – 3 Core Flexible Power Cable (0.75mm²) – Coil of 90 Meters
Part #: 6103
Application: Indoor low-voltage power supply for light-duty installations including domestic appliances, lighting, and portable tools.
🛠️ Product Description

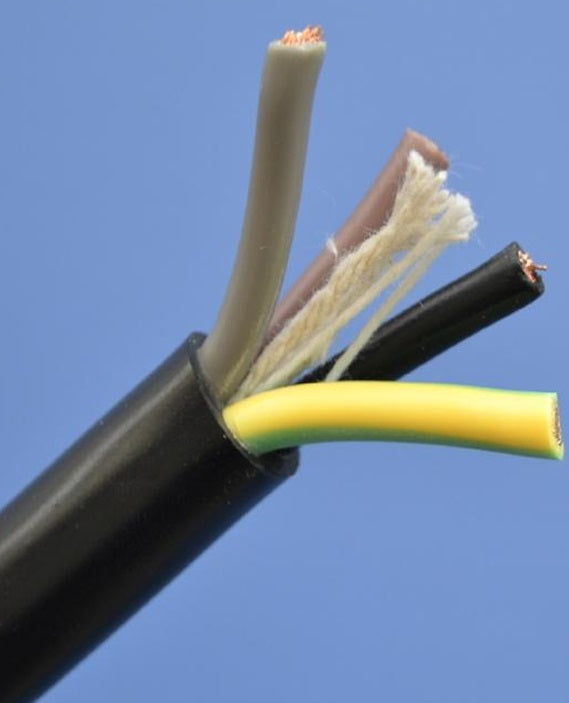

This 3183Y 3-Core Flexible PVC Cable is ideal for indoor electrical installations requiring flexibility and safety. It is constructed using fine-stranded plain annealed copper conductors, PVC insulation, and a flexible PVC outer sheath, making it highly adaptable for confined or moveable connections.
Ye 3183Y 3-Core Flexible PVC Cable un jagahon ke liye behtareen hai jahan indoor electrical installations mein flexibility aur safety zaroori hoti hai. Is cable ka tayar shuda design fine-stranded plain annealed copper conductors, PVC insulation, aur flexible PVC outer sheath par mabni hai, jo ise confined ya moveable connections ke liye ideal banata hai.
✅ Key Features
- ✔ Stranded Plain Annealed Copper Conductors
- ✔ PVC Insulated and Sheathed (CU/PVC/PVC)
- ✔ 300/500V Rated Voltage
- ✔ Highly Flexible for Easy Handling
- ✔ Color-Coded Cores (Green/Yellow, Blue, Brown)
- ✔ Heat Resistant up to 70°C
- ✔ Packaged in 90-meter Coils
- ✔ Black Outer Sheath
✅ Key Features
✔ Stranded Plain Annealed Copper Conductors – Behtar conductivity aur durability
✔ PVC Insulated aur Sheathed (CU/PVC/PVC) – Safe aur reliable insulation
✔ 300/500V Rated Voltage – Standard indoor voltage requirements ke mutabiq
✔ Highly Flexible for Easy Handling – Tang jagahon mein asaani se use hone wali
✔ Color-Coded Cores (Green/Yellow, Blue, Brown) – Asaan aur safe wiring ke liye
✔ Heat Resistant up to 70°C – Zyada temperature mein bhi kaam karta hai
✔ Packaged in 90-meter Coils – Lambi aur lagatar wiring ke liye
✔ Black Outer Sheath – Mazboot aur professional finish ke sath
📊 Technical Specifications – 3183Y Series
| Part # | Conductor Area (mm²) | Stranding (No./mm) | Insulation Thickness (mm) | Min. Ø (mm) | Max. Ø (mm) |
| 6103.75 | 0.75 | 24 / 0.20 | 0.6 | 6 | 7.6 |
| 61031 | 1 | 32 / 0.20 | 0.6 | 6.3 | 8 |
| 61031.25 | 1.25 | 40 / 0.20 | 0.7 | 6.9 | 8.7 |
| 61031.5 | 1.5 | 30 / 0.25 | 0.7 | 7.4 | 9.4 |
| 61032.5 | 2.5 | 50 / 0.25 | 0.8 | 9.2 | 11.4 |
| 61034 | 4 | 56 / 0.30 | 0.8 | 10.5 | 13.1 |
🧪 Electrical & Physical Properties
| Property | Value |
| Voltage Rating | 300/500V |
| Temperature Rating | 70°C (max continuous) |
| Conductor Material | Plain Annealed Copper |
| Conductor Type | Stranded Flexible |
| Insulation Material | PVC |
| Sheath Material | PVC |
| Sheath Color | Black |
| Core Identification | Green/Yellow, Blue, Brown |
| Packaging | 90-meter Coil |
🎯 Applications
- Domestic appliances
- Light-duty tools
- Lighting circuits
- Portable equipment
- Power extensions in offices and homes
