4 Pair F/FTP CAT 6A Networking Cable - Coil of 305 Meter
4 Pair F/FTP CAT 6A Networking Cable - Coil of 305 Meter
Sold by: MA Tech

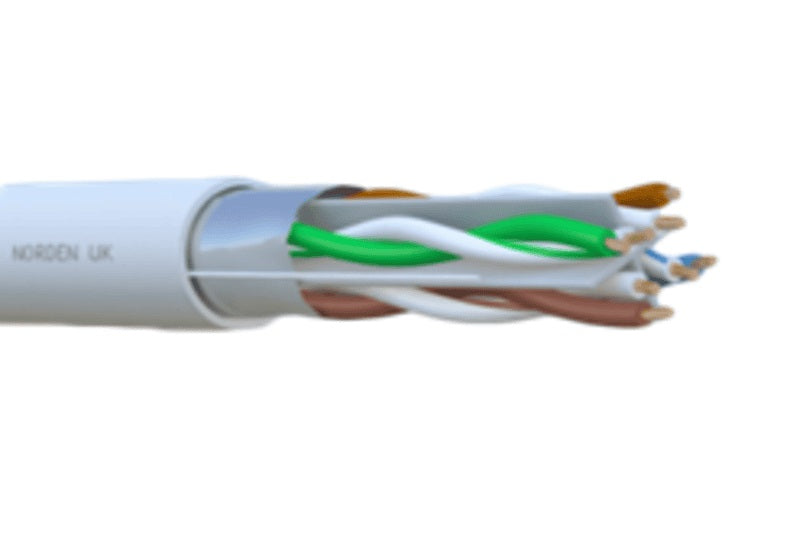

🔷 4 Pair F/FTP CAT 6A Networking Cable – 305m Coil
Part #: 24316 | CAT 6A F/FTP | 305m Coil | 23AWG Copper | PVC Jacket
📘 Product Overview
The Pony Cables 4 Pair F/FTP CAT 6A Networking Cable is a shielded high-performance cable designed to support 10 Gigabit Ethernet applications over longer distances with exceptional EMI protection. Featuring individual foil shielding on each pair (F/FTP) and an overall aluminum/Mylar screen, this cable ensures superior signal integrity, making it ideal for data centers, industrial automation, hospitals, and high-interference environments.
Supplied in a 305-meter coil, it offers low attenuation, high durability, and compliance with global safety standards, including RoHS.
Pony Cables 4 Pair F/FTP CAT 6A Networking Cable ek shielded high-performance cable hai jo 10 Gigabit Ethernet applications ko longer distances tak support karne ke liye design ki gayi hai, woh bhi exceptional EMI protection ke sath.
Is cable mein har twisted pair par individual foil shielding (F/FTP) hoti hai aur iske upar ek overall aluminum/Mylar screen bhi hoti hai — jo signal integrity ko behtareen banati hai.
Yeh cable un environments ke liye ideal hai jahan high-interference hoti hai, jaise data centers, industrial automation systems, hospitals, waghera.
305-meter coil mein supply hone wali yeh cable low attenuation, high durability, aur RoHS jaise global safety standards ke mutabiq hai.
✅ Key Features
- Category: CAT 6A – Foiled Twisted Pair (F/FTP)
- Conductor: 23 AWG Solid Bare Copper (0.57 mm)
- Insulation: Skin-Foam-Skin Polyethylene (PE) for reduced capacitance
- Shielding:
- Foil Shield on each pair (F/FTP)
- Aluminum/Mylar Tape overall
- Drain Wire for grounding
- Jacket: PVC – Clean Finish, RoHS Compliant
- Rip Cord: Nylon for easy jacket stripping
- Packaging: 305 Meter Coil
-
Weight:. 15.8 ± 0.5 kg
📊 Technical Specifications
Parameter | Specification |
Cable Type | F/FTP – Foil Shielded Twisted Pair |
Conductor Material | Solid Bare Copper |
Conductor Diameter | 0.57 ± 0.005 mm |
No. of Conductors | 8 (4 Twisted Pairs) |
Insulation Material | Skin-Foamed-Skin PE |
Insulation Diameter | 1.33 ± 0.05 mm |
Shield (Per Pair) | Aluminum Foil |
Overall Shield | Aluminum/Mylar Tape |
Jacket Material | PVC (RoHS Compliant) |
Jacket Thickness | 0.55 ± 0.05 mm |
Outer Cable Diameter | 7.5 ± 0.5 mm |
Drain Wire | Yes |
Rip Cord | Yes (Nylon) |
Surface Finish | Clean |
🧪 Physical Properties
Test Condition | Before Aging | After Aging |
Tensile Strength (MPa) | ≥ 13.5 | ≥ 12.5 |
Elongation (%) | ≥ 150 | ≥ 125 |
Aging Test Duration | — | 100°C × 24 hrs × 7 days |
Cold Bend Test (-20°C ± 2°C) | — | No Visible Cracks (8×OD Bend) |
⚡ Electrical Performance (20°C)
Parameter | Value |
Impedance | 100 ± 15 Ω (1.0 – 250 MHz) |
Impedance | 100 ± 22 Ω (250 – 500 MHz) |
Delay Skew | ≤ 45 ns / 100m |
Velocity of Propagation | 74% |
Capacitance Unbalance to Ground | Max 330 pF / 100m |
DC Resistance (Max) | 9.36 Ω / 100m |
Resistance Unbalance (Max) | ≤ 5.0% |
📦 Packing Information
Attribute | Details |
Packing Type | Shrink-Wrapped Coil |
Coil Length | 305 meters (1,000 feet) |
Gross Weight | Approx. 15.8 ± 0.5 kg |
Labeling | Product Code, Length, Barcode, Specs |
Outer Carton | Available for bulk supply |
🎯 Applications
- 10 Gigabit Ethernet (10GBASE-T) Networks
- Data Centers & Server Environments
- Industrial Automation & Manufacturing Floors
- Medical Facilities & EMI-Sensitive Installations
- Shielded LAN, CCTV, and IP Surveillance Systems
Design

INSULATION CHROMATOGRAM
MAIN TRANSMISSION CHARACTERISTICS

🌐 PONY CABLES – Shielded Excellence for High-EMI Installations
