4 Pair U/UTP PVC 23 AWG CAT 6 Networking Cable - Coil of 305 Meter

4 Pair U/UTP PVC 23 AWG CAT 6 Networking Cable - Coil of 305 Meter

Sold by: MA Tech

Regular price PKR 69,183
Regular price Sale price PKR 69,183
Sale Sold out
Shipping calculated at checkout.

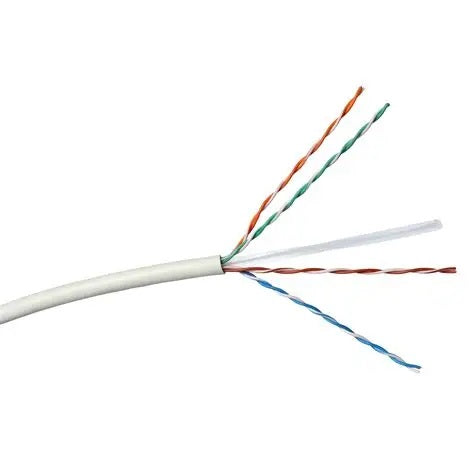

4 Pair U/UTP CAT 6 Networking Cable – 305m Coil | 23AWG Solid Bare Copper | PVC Sheath

🔖 Part #: 241061 – CAT 6 U/UTP 4 Pair | 305m Coil | 23AWG Copper


📘 Product Overview

The PONY CABLES CAT 6 U/UTP 4 Pair Networking Cable is a high-performance solution for structured cabling systems, designed to meet and exceed Gigabit Ethernet standards. Made with 23 AWG solid bare copper conductors, this unshielded twisted pair (U/UTP) cable ensures exceptional conductivity, low signal loss, and durability over long distances. It’s ideal for use in commercial, industrial, and residential environments.

Packaged in a 305-meter (1,000 feet) coil, this cable is perfect for network installations, CCTV, IP telephony, and data centers.


PONY CABLES ka CAT 6 U/UTP 4 Pair Networking Cable ek high-performance solution hai jo structured cabling systems ke liye design kiya gaya hai.
Ye cable Gigabit Ethernet standards ko meet karne ke sath sath exceed bhi karta hai. Ismein 23 AWG solid bare copper conductors use kiye gaye hain jo behtareen conductivity, low signal loss, aur long-distance durability faraham karte hain.
Commercial, industrial, aur residential environments mein use ke liye yeh cable bilkul munasib hai.

305-meter (1,000 feet) ke coil mein available, yeh cable network installations, CCTV, IP telephony, aur data centers ke liye ideal hai.


Key Features

  • Category: CAT 6 (U/UTP)
  • Conductor: 23AWG Solid Bare Copper
  • Twisted Pairs: 4 Pairs (8 Conductors)
  • Insulation: HDPE for reduced signal loss
  • Jacket: Flame-retardant PVC, RoHS Compliant
  • Rip Cord: Nylon for easy stripping
  • Separator: Cross-filler for pair separation
  • Color Coding: Standard TIA/EIA 568-B (Blue, Orange, Green, Brown + stripes)
  • Length: 305 Meters (Coil Packing)

Key Features

  • Category: CAT 6 (U/UTP)
  • Conductor: 23 AWG Solid Bare Copper
  • Twisted Pairs: 4 Pairs (Total 8 Conductors)
  • Insulation: HDPE – Signal loss ko kam karta hai
  • Jacket: Flame-retardant PVC, RoHS Compliant
  • Rip Cord: Nylon – Easy aur clean stripping ke liye
  • Separator: Cross-filler – Pair separation ke liye
  • Color Coding: Standard TIA/EIA 568-B (Blue, Orange, Green, Brown + striped wires)
  • Length: 305 Meters (Coil Packing)

📊 Technical Specifications

🔧 Construction Details

Parameter Specification
Conductor Size 23AWG (0.55 ± 0.005 mm)
Number of Conductors 8 (4 Twisted Pairs)
Conductor Material Solid Bare Copper
Insulation Material HDPE (High-Density Polyethylene)
Insulation Diameter 0.98 ± 0.03 mm
Jacket Material PVC (RoHS Compliant)
Jacket Thickness 0.55 ± 0.05 mm
Outer Cable Diameter 6.0 ± 0.4 mm
Rip Cord Yes (Nylon)
Separator Plastic Cross-Filler
Surface Finish Clean, Frap, Satiation

🧪 Physical Properties of Sheath

Test Condition Before Aging After Aging
Tensile Strength (MPa) ≥ 13.5 ≥ 12.5
Elongation (%) ≥ 150 ≥ 125
Aging Duration 100°C × 24 hrs × 7 days
Cold Bend Test (-20°C ± 2°C) No visible cracks

⚡ Electrical Characteristics (at 20°C)

Parameter Value
Characteristic Impedance 100 ± 15 Ω (1.0 – 250 MHz)
Delay Skew ≤ 45 ns / 100 m
DC Resistance (Max) 9.38 Ω / 100 m
DC Resistance Unbalance (Max) ≤ 5.0%

📦 Packing Details

Attribute Value
Packing Format Coil Wrapped (Shrink-wrapped)
Coil Length 305 Meters (1,000 Feet)
Gross Coil Weight Approx. 13.0 ± 0.5 kg
Outer Box (Optional) Available for export/bulk orders
Labeling Part No., Length, Barcode, Specs


🎯 Applications

  • Ethernet LAN (10/100/1000Base-T)
  • CCTV and IP Surveillance
  • VoIP and IP Telephony
  • Patch Panels and Data Centers
  • Commercial and Residential Network Cabling

Design

INSULATION CHROMATOGRAM

MAIN TRANSMISSION CHARACTERISTICS

🌐 PONY CABLES – Built for Performance. Trusted for Reliability.
