4 Pair U/UTP CAT 6A Networking Cable - Coil of 305 Meter
4 Pair U/UTP CAT 6A Networking Cable - Coil of 305 Meter
Sold by: MA Tech

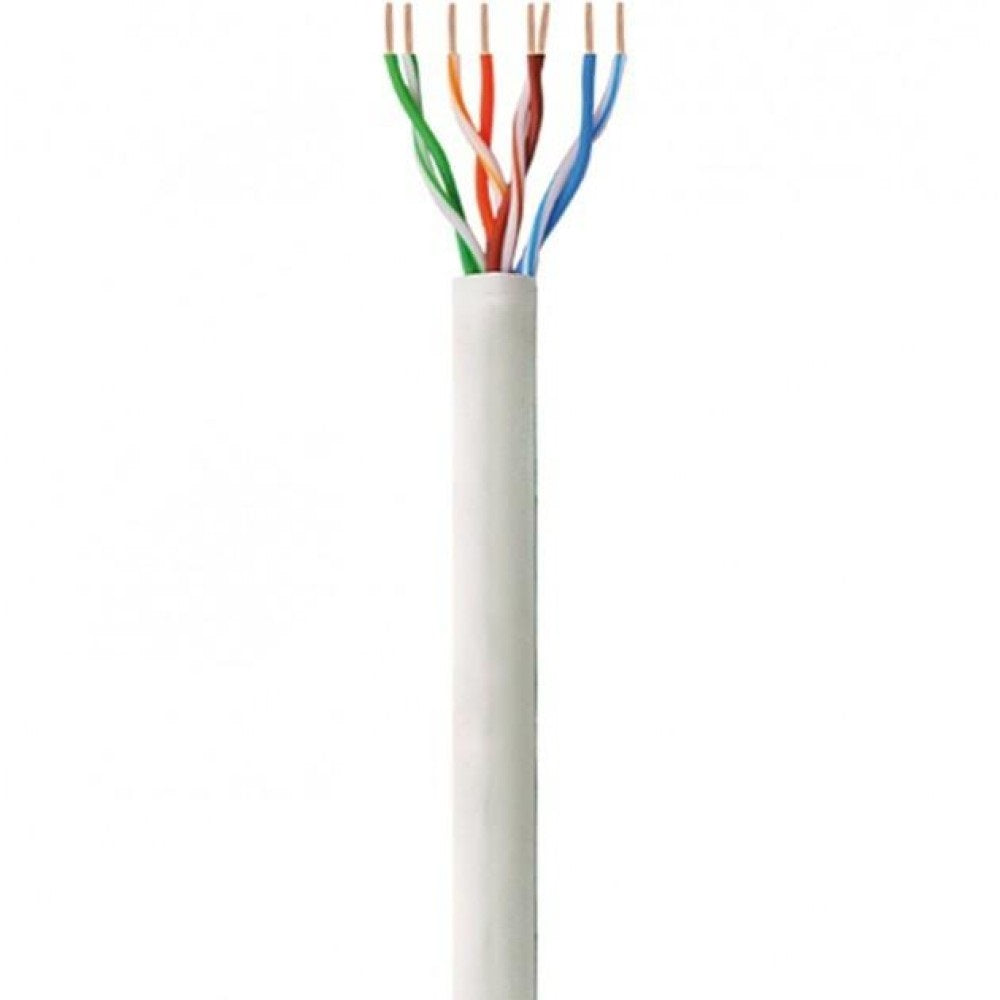

4 Pair U/UTP CAT 6A Networking Cable – 305m Coil
Part #: 24116 | CAT 6A U/UTP | 305m Coil | 23AWG Copper
📘 Product Overview
The Pony Cables CAT 6A U/UTP Networking Cable is engineered to meet high-speed 10 Gigabit Ethernet standards with enhanced performance across extended frequencies up to 500 MHz. Constructed using 23 AWG solid bare copper conductors, HDPE insulation, and a robust PVC jacket, this cable provides excellent electrical characteristics, reduced crosstalk, and increased reliability.
Supplied in a 305-meter coil, it's ideal for large-scale structured cabling, data centers, enterprise networks, and performance-driven environments.
Pony Cables CAT 6A U/UTP Networking Cable high-speed 10 Gigabit Ethernet standards ko meet karne ke liye design kiya gaya hai, jo extended frequencies tak 500 MHz tak behtareen performance deta hai.
Is cable mein 23 AWG solid bare copper conductors, HDPE insulation, aur mazboot PVC jacket use kiya gaya hai, jo electrical characteristics ko improve karta hai, crosstalk ko kam karta hai, aur reliability ko barhata hai.
Yeh cable 305-meter coil mein supply hota hai, jo large-scale structured cabling, data centers, enterprise networks, aur performance-driven environments ke liye ideal hai.
✅ Key Features
- Category: CAT 6A – Unshielded Twisted Pair (U/UTP)
- Conductor: 23AWG Solid Bare Copper (0.57 mm)
- Insulation: HDPE (High-Density Polyethylene)
- Separator: Plastic cross-filler for signal integrity
- Rip Cord: Nylon for easy sheath removal
- Jacket: Durable PVC (RoHS Compliant)
- Length: 305 Meters (Shrink-Wrapped Coil)
- Weight: 14.2 ± 0.5 kg
📊 Technical Specifications
🔧 Construction Details
Parameter | Specification |
Cable Type | U/UTP – Unshielded Twisted Pair |
Conductor Material | Solid Bare Copper |
Conductor Diameter | 0.57 ± 0.005 mm |
No. of Conductors | 8 (4 Twisted Pairs) |
Insulation Material | HDPE |
Insulation Diameter | 1.01 ± 0.02 mm |
Jacket Material | PVC (RoHS Compliant) |
Jacket Thickness | 0.65 ± 0.05 mm |
Outer Diameter | 6.9 ± 0.3 mm |
Rip Cord | Yes (Nylon) |
Separator | Yes (Plastic Cross-Filler) |
Surface Finish | Clean, Frap, Satiation |
🧪 Physical Properties
Test | Before Aging | After Aging |
Tensile Strength (MPa) | ≥ 13.5 | ≥ 12.5 |
Elongation (%) | ≥ 150 | ≥ 125 |
Aging Duration | — | 100°C × 24 hrs × 7 days |
Cold Bend (-20°C ± 2°C × 24h) | No visible cracks | — |
⚡ Electrical Characteristics (20°C)
Parameter | Value |
Characteristic Impedance | 100 ± 15 Ω (1.0 – 500 MHz) |
Delay Skew | ≤ 45 ns / 100m |
DC Resistance (Max) | 9.3 Ω / 100m |
Resistance Unbalance (Max) | ≤ 2.0% |
📦 Packing Information
Attribute | Details |
Packing Type | Shrink-Wrapped Coil |
Coil Length | 305 meters (1,000 feet) |
Gross Weight | Approx. 14.2 ± 0.5 kg |
Labeling | Product Code, Length, Barcode, Specs |
Outer Carton | Available on request |
🎯 Applications
- 10GBASE-T Ethernet & Data Transmission
- Data Centers & Server Rooms
- Patch Panels & Switch Connections
- Commercial Building Structured Cabling
- High-Performance LAN Installations
Design

INSULATION CHROMATOGRAM
![]()

MAIN TRANSMISSION CHARACTERISTICS
🌐 PONY CABLES – Precision Engineered for High-Speed Networks
