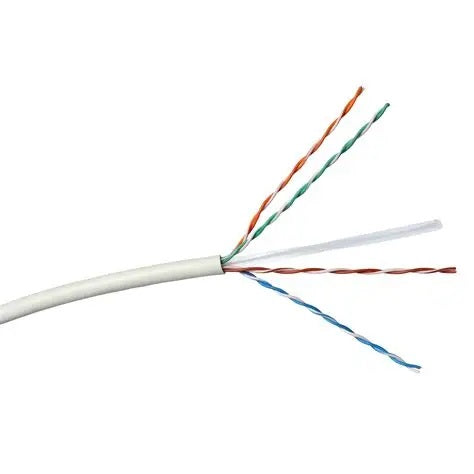

4 Pair U/UTP LSZH 23 AWG CAT 6 Networking Cable

4 Pair U/UTP LSZH 23 AWG CAT 6 Networking Cable

Sold by: MA Tech

Regular price PKR 80,456
Regular price Sale price PKR 80,456
Sale Sold out
Shipping calculated at checkout.

4 Pair U/UTP LSZH 23 AWG CAT 6 Networking Cable – 305m Coil

📦 Part #: 241061 – 305m LSZH Coil | 23AWG | CAT 6 U/UTP


📘 Product Overview

The PONY CABLES CAT 6 U/UTP 4 Pair Networking Cable with LSZH Jacket is engineered for high-speed data networks with enhanced safety in mind. Constructed with 23 AWG solid bare copper conductors, this cable features low smoke zero halogen (LSZH) sheathing for applications requiring fire safety and low-toxicity emissions, such as hospitals, commercial buildings, airports, and data centers.

This premium CAT 6 cable ensures reliable Gigabit Ethernet performance and low signal loss over long distances. It's supplied in a 305-meter coil, ideal for bulk installations.


PONY CABLES CAT 6 U/UTP 4 Pair Networking Cable with LSZH Jacket high-speed data networks ke liye specially design kiya gaya hai, jahan enhanced safety zaroori hoti hai.
Is cable mein 23 AWG solid bare copper conductors use kiye gaye hain, aur iska low smoke zero halogen (LSZH) sheath fire safety aur low-toxicity emissions ke liye banaaya gaya hai — jo ise hospitals, commercial buildings, airports, aur data centers jaise sensitive environments ke liye ideal banata hai.

Yeh premium CAT 6 cable Gigabit Ethernet performance ko reliably support karti hai aur long distances par bhi signal loss ko minimum rakhti hai.
305-meter coil packing ke sath yeh cable bulk installations ke liye perfect hai.


✅ Key Features

  • Category: CAT 6 – Unshielded Twisted Pair (U/UTP)
  • Conductor: 23AWG Solid Bare Copper
  • Insulation: HDPE for low signal attenuation
  • Jacket: LSZH (Low Smoke Zero Halogen) – safer in fire-prone areas
  • Rip Cord: Nylon for easy sheath removal
  • Separator: Plastic cross-filler for better pair isolation
  • Twisted Pair Design: Minimizes crosstalk and EMI
  • Length: 305 Meters (Shrink-Wrapped Coil)
  • Weight: Approx. 13.0 ± 0.5 kg per coil

📊 Technical Specifications

🔧 Construction

Parameter Specification
Cable Type CAT 6 U/UTP
Conductor Material Solid Bare Copper
Conductor Diameter 0.55 ± 0.005 mm (23 AWG)
No. of Conductors 8 (4 Pairs)
Insulation Material HDPE
Insulation Diameter 0.98 ± 0.03 mm
Jacket Material LSZH – RoHS Compliant
Jacket Thickness 0.55 ± 0.05 mm
Outer Cable Diameter 6.0 ± 0.4 mm
Separator Plastic Cross (Star) Filler
Rip Cord Yes (Nylon)
Surface Finish Clean, Frap, Satiation


🧪 Mechanical & Environmental Properties

Test Condition Before Aging After Aging
Tensile Strength (MPa) ≥ 13.5 ≥ 12.5
Elongation (%) ≥ 150 ≥ 125
Aging Condition 100°C × 24 hrs × 7 days
Cold Bend Test (-20°C ± 2°C) No visible cracks

⚡ Electrical Performance (at 20°C)

Parameter Value
Characteristic Impedance 100 ± 15 Ω (1.0 – 250 MHz)
Delay Skew ≤ 45 ns / 100m
DC Resistance (Max) 9.38 Ω / 100m
Resistance Unbalance (Max) ≤ 5.0%

📦 Packaging Details

Attribute Specification
Packing Format Coil (Shrink-Wrapped)
Coil Length 305 meters (1,000 feet)
Gross Weight Approx. 13.0 ± 0.5 kg
Labeling Part No., Cable Type, Length, Barcode
Outer Carton Available for bulk/wholesale orders

🎯 Applications

  • Data Centers & Structured Cabling
  • VoIP, IP Cameras & Network Switches
  • Fire-Sensitive Areas (Hospitals, Airports, Labs)
  • High-Speed LAN & Ethernet Networks
  • Commercial & Residential Installations

Design

INSULATION CHROMATOGRAM

MAIN TRANSMISSION CHARACTERISTICS


🌐 PONY CABLES – Performance That’s Fire-Safe. Built for Critical Networks.
