50 Pair F/UTP 24 AWG Cable - Meter (Drum)
50 Pair F/UTP 24 AWG Cable - Meter (Drum)
Sold by: MA Tech
🔷 50 Pair F/UTP 24 AWG Networking Cable – Drum of 500/1000 Meters
High-Density Shielded Multi-Pair Communication Cable
Part Type: 50 Pairs | F/UTP | PVC Jacket | 24 AWG | Drum
📘 Product Overview

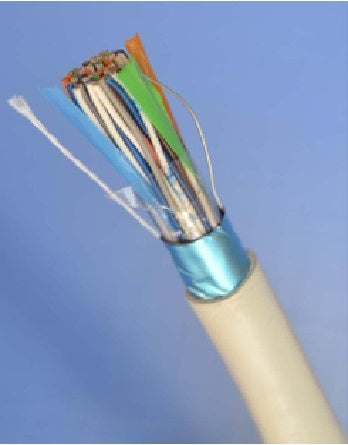

The 50 Pair F/UTP 24 AWG Networking Cable is built for high-capacity voice and data applications in structured cabling systems. Featuring 100 conductors (50 twisted pairs) of solid bare copper, along with robust Mylar and aluminum foil shielding, and a durable PVC jacket, this cable is engineered for reliability, noise immunity, and easy installation.
With spiral shielding layers and a tinned copper drain wire, this cable supports efficient signal transmission with no crosstalk, making it ideal for PBX systems, voice backbones, industrial networks, and control wiring.
50 Pair F/UTP 24 AWG Networking Cable aik high-capacity networking cable hai jo voice aur data applications ke liye specially design ki gayi hai, khas tor par structured cabling systems mein. Is cable mein 100 conductors (yaani 50 twisted pairs) hote hain jo solid bare copper se banaye gaye hain. Saath hi Mylar aur aluminum foil shielding aur mazboot PVC jacket iska hissa hain, jo ise reliable, noise-resistant aur aasani se install hone wala cable banate hain.
✅ Key Features
- Solid Bare Copper Conductors – 24 AWG (0.5mm)
- PVC Insulated Twisted Pairs – Clear signal separation
- Triple Shielded – Mylar, Spiral Foil & PP Tapes
- Drain Wire – Tinned Copper, 24 AWG (0.4mm)
- Rip Cord – For quick and safe jacket removal
- Grey PVC Jacket – Robust and easy to install
- High Signal Integrity – No cross-talk or interference
- Supplied in Wooden/Plastic Drum – 500 or 1000 meters
📊 Technical Specifications
Attribute | Specification |
Number of Pairs | 50 (100 Conductors) |
Conductor Material | Solid Bare Copper |
Conductor Diameter | 0.5 mm (24 AWG) |
Insulation Material | General PVC |
Insulation Diameter | 1.0 mm ± 0.10 mm |
Shield Layer 1 | Spiral Mylar Transparent Tape |
Shield Layer 2 | Spiral Aluminium Foil |
Shield Layer 3 | Spiral PP Color Tape (Each 10 Pairs) |
Drain Wire | 0.4 mm Tinned Copper (24 AWG) |
Outer Jacket Diameter | 11.1 mm ± 0.20 mm |
Outer Jacket Material | Grey PVC with Rip Cord |
Operating Temperature | Up to 60°C |
Rated Voltage | 30 V |
Conductor DC Resistance (20°C) | < 7.31 Ω / 100 m |
Insulation Resistance (20°C) | > 200 MΩ·m |
Cable Weight | ~140–160 kg/km (varies by drum size) |
Packaging | Drum – 500m / 1000m |
🧪 Electrical Characteristics
Parameter | Value |
Conductor DC Resistance | < 7.31 Ω / 100 meters |
Insulation Resistance | > 200 MΩ·m |
Voltage Rating | 30V |
Temperature Rating | 60°C |
Crosstalk | Negligible |
Drain Wire | 24 AWG Tinned Copper |
📦 Packing Information
Details | Specification |
Drum Type | Wooden / Plastic Drum |
Available Lengths | 500m / 1000m per drum |
Cable Weight (Approx) | 70–160 kg (based on length) |
Marking | Meter-by-meter length marking with part number & batch code |
🎯 Applications
- Large PBX/Voice Distribution Systems
- Security & Access Control Networks
- Control Wiring in Industrial Automation
- Backbone Cabling in Commercial Buildings
- Structured Cabling for Intercom/Alarm Systems
Design

🔧 PONY CABLES – Built for Performance, Trusted for Reliability.
📦 Available in 500m and 1000m Drums | RoHS Compliant | Triple Shielded | No Crosstalk
