8-Zone Expander that can be linked with the fire alarm system to trigger alert
8-Zone Expander that can be linked with the fire alarm system to trigger alert
Sold by: MA Tech

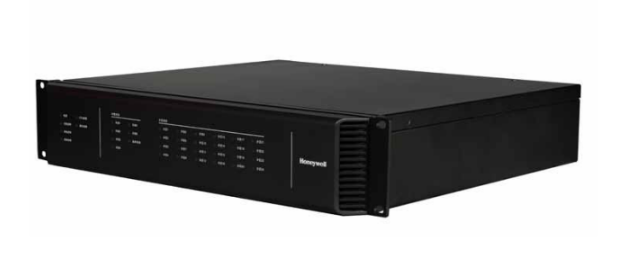

🔈 Honeywell INTEVIO HEX-8 – 8-Zone Expander
Part of the INTEVIO Public Address & Voice Alarm System
Ideal for small to mid-sized buildings requiring scalable, reliable emergency audio broadcasting.
INTEVIO Public Address & Voice Alarm System ka hissa hai, jo chhoti se darmiyani size ki buildings ke liye munasib hai jahan scalable aur reliable emergency audio broadcasting ki zarurat hoti hai.
📌 Key Features
- Adds 8 speaker zones, 8 monitored contact inputs, and 8 contact outputs to an INTEVIO system
- Supports connection to 4 amplifiers (3 for CH1/CH2, 1 backup)
- Plug-and-play integration with HCU-2000 controller
- Supports single and dual audio channel modes
- Supports amplifier redundancy (one-for-all backup)
- Automatic fault diagnosis for enhanced safety
- Broadcast continues even if the controller CPU fails via external line input
- INTEVIO system mein 8 speaker zones, 8 monitored contact inputs, aur 8 contact outputs add karta hai
- 4 amplifiers se connection support karta hai (3 CH1/CH2 ke liye, 1 backup ke taur par)
- HCU-2000 controller ke saath plug-and-play integration
- Single aur dual audio channel modes ko support karta hai
- Amplifier redundancy provide karta hai (one-for-all backup)
- Automatic fault diagnosis jo safety ko behtari banata hai
- Agar controller CPU fail bhi ho jaye, to broadcast external line input ke zariye jari rehta hai
🔧 Technical Specifications
🔌 Power
Parameter | Value |
Main Power Supply | AC 100–240V, 50/60Hz |
Backup Power Supply | AC 100–240V, 50/60Hz |
Fuse | T2AL 250V |
Rated Power | 35W |
DC Power Output | 24V / 1A |
🎚️ Audio Input / Output
Parameter | Value |
Line Input | 1V (0dBV), 20 kΩ impedance |
Frequency Response | 80Hz–18kHz |
Signal-to-Noise Ratio | >85dB, A-weighted |
Audio Output Channels | CH1, CH2 |
Output Signal | 1V (0dBV) |
Total Harmonic Distortion (THD) | <0.1% |
🔊 Power Amplifier Control
Parameter | Value |
Channels Supported | CH1, CH2, Spare |
Output Signal | 1.4V |
Functions | Self-testing, amplifier fault, power save control |
🔉 Loudspeaker Circuit
Output Channels | 8 (Group A & B) |
Max Load per Channel | 500W |
🔁 Contact I/O
Parameter | Value |
Contact Inputs | 8 monitored inputs |
Contact Outputs | 8 (NO/NC + COM) |
Max Output Voltage | AC 250V / DC 30V |
Max Output Current | 2.5A |
🌡️ Environmental Ratings
Parameter | Value |
Operating Temp | -10°C to +55°C (14°F to +131°F) |
Storage Temp | -40°C to +70°C (-40°F to +158°F) |
Humidity | < 95%, non-condensing |
📏 Physical Specifications
Parameter | Value |
Dimensions (W×H×D) | 482 × 88 × 407 mm |
Package Dimensions | 580 × 235 × 552 mm |
Net Weight | 7.5 kg |
Gross Weight | 10.3 kg |
✅ Certifications
Region | Certification |
Europe | CE |
Global | CB |
📦 Ordering Info
Model | Description |
HEX-8 | 8-Zone Expander |
📚 Application Use Cases
- Fire Alarm Voice Evacuation
- Emergency Announcements
- Public Address in Schools, Hotels, Retail Stores, Commercial Buildings
🔗 System Integration
- Compatible with HCU-2000 INTEVIO Controller
- Scalable up to 15 HEX-8 units per system
- Can connect with 3rd-party amplifiers
- External audio still functional during CPU failure — ensures emergency audio redundancy
