Armoured 10 Pairs Telephone Cable - (0.4mm)Mtr
Armoured 10 Pairs Telephone Cable - (0.4mm)Mtr
Sold by: MA Tech

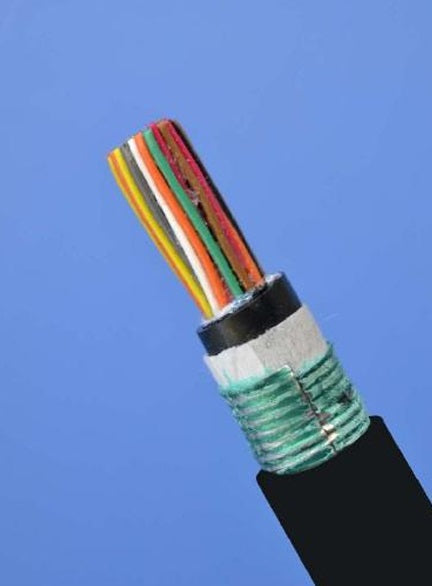

🔷 Armoured 10 Pair Telephone Cable – 0.4mm (Sold by the Meter, Drum Packaging)
Category: Outdoor Telephone Cable | Jelly Filled | Armoured | LDPE Jacket
📘 Product Overview
The Armoured 10 Pair Telephone Cable is purpose-built for demanding outdoor voice and low-frequency data communication systems. Engineered with solid annealed copper conductors, jelly-filled waterblocking cores, multiple shielding layers, and inner/outer LDPE sheaths, it delivers long-lasting performance, even in harsh environments.
With corrugated steel tape, non-corrugated aluminum tape, and grease filling, the cable offers superior protection against moisture, mechanical damage, and signal interference—making it ideal for underground, conduit, or industrial telecom applications.
Armoured 10 Pair Telephone Cable khaas tor par outdoor voice aur low-frequency data communication systems ke liye design kiya gaya hai. Yeh solid annealed copper conductors, jelly-filled water-blocking cores, kai shielding layers, aur inner/outer LDPE sheaths ke sath bana hai, jo sakht mahol mein bhi lambi muddat tak behtareen performance deta hai.
Is cable mein corrugated steel tape, non-corrugated aluminum tape, aur grease filling shamil hai, jo moisture, mechanical damage, aur signal interference se behtareen hifazat karta hai—jis ki wajah se yeh underground, conduit, ya industrial telecom applications ke liye ideal hai.
✅ Key Features
- Solid Annealed Bare Copper Conductors – 22 AWG (0.4 mm)
- Jelly-Filled Core for Waterblocking
- Triple-Layer Armouring: Mylar, Aluminium Tape, Corrugated Steel
- HDPE Insulation + LDPE Inner and Outer Sheath
- Color-Coded Pairs (PP Tape Spiraled in Groups of 10)
- Excellent Crosstalk and Capacitance Control
- Moisture Proof & Suitable for Direct Burial
- Available in 500 or 1000 Meter Drums
📊 Technical Specifications
Attribute | Specification |
Number of Pairs | 10 (20 Conductors) |
Conductor Diameter | 0.4 mm |
Conductor Material | Solid Bare Annealed Copper |
Insulation Diameter | 1.0 mm |
Insulation Material | High Density Polyethylene (HDPE) |
Shielding (1) | Spiral PP Color Tape (Grouped Every 10 Pairs) |
Shielding (2) | Polyester Tape Wrap |
Shielding (3) | Spiral Non-Corrugated Aluminium Tape (0.25 mm) |
Inner Sheath | Black LDPE (1.1 mm) |
Armouring | Corrugated Steel Tape (0.25 mm) |
Outer Sheath | Black LDPE (1.6 mm) |
Core Filling | Petroleum Jelly Grease |
Jacket Diameter | Approx. varies by shielding layers |
Packaging | Drum (500 or 1000 Meters) |
📈 Electrical Characteristics
Property | Value |
DC Resistance (Max) | 65.1 Ω/km |
DC Resistance Unbalance (Max) | 5.00% |
Insulation Resistance (500V DC) | >3000 MΩ/km |
Working Capacitance (800Hz) | ≤ 58 nF/km (10 Pairs) |
Pair-to-Pair Capacitance Unbalance (800Hz/300m) | ≤ 250 pF/km |
Electrical Strength (1 min) - Conductor to Conductor | 1 KV |
Electrical Strength (1 min) - Conductor to Shield | 3 KV |
🎨 Color Code Chart (Chromatogram)
Pair No. | Color Combination | Pair No. | Color Combination |
1 | White - Blue | 6 | Red - Blue |
2 | White - Orange | 7 | Red - Orange |
3 | White - Green | 8 | Red - Green |
4 | White - Brown | 9 | Red - Brown |
5 | White - Grey | 10 | Red - Grey |
🎯 Applications
- Direct Burial and Underground Telecom Lines
- Outdoor Telephone Cabling for Industrial Facilities
- Long-Distance Analog Signal Transmission
- PBX, Intercom, and Low-Voltage Data Installations
- Moisture-Prone Installations (Grease-Filled for Waterproofing)
Design
INSULATION CHROMATOGRAM
CHARACTERISTICS
🛠️ Engineered by PONY CABLES – The Ultimate Choice for Cabling
💼 Built for performance in harsh environments where reliability and protection are critical.
