Armoured 10 Pairs Telephone Cable - (0.6mm)Mtr
Armoured 10 Pairs Telephone Cable - (0.6mm)Mtr
Sold by: MA Tech

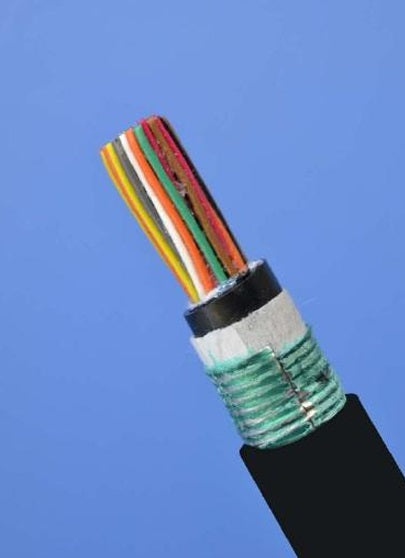

Armoured 10 Pair Telephone Cable – 0.6mm (Sold by the Meter, Drum Packaging)
Category: Outdoor Telephone Cable | Jelly Filled | Armoured | LDPE Jacket
📘 Product Overview
The 10 Pair Armoured Telephone Cable (0.6mm) is a rugged, jelly-filled, moisture-resistant solution for outdoor telephone and communication lines. Designed with high-strength steel and aluminum shielding, and a dual LDPE sheath, this cable offers excellent protection against environmental elements and mechanical damage.
Perfect for underground, conduit, or direct burial applications where high durability and signal reliability are essential.
10 Pair Armoured Telephone Cable (0.6mm) ek mazboot, jelly-filled, aur moisture-resistant cable hai jo outdoor telephone aur communication lines ke liye banaaya gaya hai. Ismein high-strength steel aur aluminum shielding lagi hoti hai, saath hi dual LDPE sheath hota hai, jo environmental asraat aur mechanical damage se behtareen tahaffuz faraham karta hai.
Yeh cable underground, conduit, ya direct burial applications ke liye perfect hai jahan high durability aur signal reliability zaroori hoti hai.
✅ Key Features
- 22 AWG (0.6 mm) Solid Bare Annealed Copper Conductors
- Core Waterblocking Jelly Filling
- PP Spiral Color Tape for Pair Grouping
- Triple Shielding: Aluminium + Polyester + Corrugated Steel
- HDPE Insulation + Dual LDPE Sheathing
- High Signal Integrity and Crosstalk Immunity
- Packaging Available: 500 or 1000 Meters per Drum
- All Pairs Usable Simultaneously
📊 Technical Specifications
|
Attribute
|
Specification |
| Number of Pairs | 10 (20 Conductors) |
| Conductor Diameter | 0.6 mm |
| Conductor Material | Solid Bare Annealed Copper |
| Insulation Diameter | 1.0 mm |
| Insulation Material | High Density Polyethylene (HDPE) |
| Shielding (1) | Spiral PP Color Tape (10 Pairs Grouped) |
| Shielding (2) | Polyester Tape Wrap (x2 layers) |
| Shielding (3) | Spiral Aluminium Tape – 0.25 mm |
| Inner Sheath | Black LDPE – 1.1 mm |
| Armouring Layer | Corrugated Steel Tape – 0.25 mm |
| Outer Sheath | Black LDPE – 1.6 mm |
| Grease Filling | Full Waterblocking Jelly Filling |
| Packaging | Drum (500 or 1000 Meters) |
📈 Electrical Characteristics
| Property | Value |
| DC Resistance (Max) | 65.1 Ω/km |
| DC Resistance Unbalance (Max) | 5.00% |
| Insulation Resistance (500V DC) | > 3000 MΩ/km |
| Working Capacitance (800Hz) | ≤ 58 nF/km |
| Pair-to-Pair Capacitance Unbalance (800Hz/300m) | ≤ 250 pF/km |
| Electrical Strength (1 min) - Conductor to Conductor | 1 KV |
| Electrical Strength (1 min) - Conductor to Shield | 3 KV |
🎯 Applications
- Outdoor Telephone and Intercom Systems
- Duct and Underground Installation
- Small Office or Building PBX Distribution
- Analog Data/Voice Transmission in Harsh Conditions
- Security, Gate, and Entry Systems
Design
INSULATION CHROMATOGRAM
CHARACTERISTICS
🛠️ Engineered by PONY CABLES – The Ultimate Choice for Cabling
💼 Built to perform reliably in critical telecom infrastructure projects and harsh field environments.
