Armoured 20 Pairs Telephone Cable - (0.4mm)Mtr
Armoured 20 Pairs Telephone Cable - (0.4mm)Mtr
Sold by: MA Tech
🔷 Armoured 20 Pair Telephone Cable – 0.4mm (Sold by the Meter, Drum Packaging)
Category: Outdoor Telephone Cable | Jelly Filled | Armoured | LDPE Jacket
📘 Product Overview
The Armoured 20 Pair Telephone Cable is engineered for robust outdoor voice and signal transmission across long distances and challenging environments. Designed with solid annealed copper conductors, HDPE insulation, and core waterblocking jelly filling, this cable offers exceptional electrical performance and long-term durability.

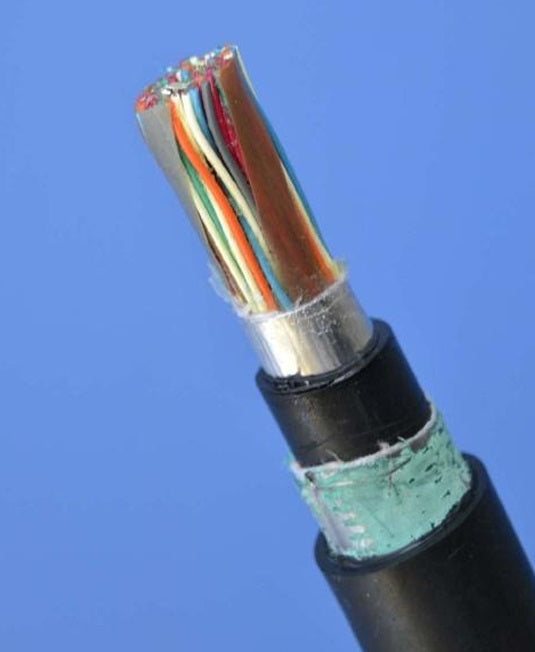

Its multilayer armoured construction—with spiraled aluminum tape, corrugated steel, and dual-layer LDPE sheathing—protects against moisture, physical stress, rodents, and interference. Ideal for direct burial and industrial telecom infrastructure.
Armoured 20 Pair Telephone Cable ek mazboot aur dependable cable hai jo outdoor voice aur signal transmission ke liye specially design ki gayi hai, khas tor par un jagahon ke liye jahan long-distance aur harsh conditions hoti hain. Is cable mein solid annealed copper conductors, HDPE insulation, aur core waterblocking jelly shamil hai jo excellent electrical performance aur long-term durability faraham karte hain.
Iski multilayer armoured construction — jisme spiral aluminium tape, corrugated steel, aur dual-layer LDPE sheathing hoti hai — cable ko moisture, physical stress, rodents, aur signal interference se bachata hai. Yeh cable direct burial aur industrial telecom infrastructure ke liye ideal hai.
✅ Key Features
- 22 AWG (0.4 mm) Solid Bare Copper Conductors
- Waterblocking Jelly-Filled Core
- Triple Shielded: Mylar, Aluminum Tape, Corrugated Steel Tape
- High-Density Polyethylene (HDPE) Insulation
- Black LDPE Inner and Outer Sheaths
- Moisture-Proof Belt & Anti-Corrosion Armouring
- No Crosstalk – All Pairs Usable Simultaneously
- Available in 500 or 1000 Meter Drums
📊 Technical Specifications
| Attribute | Specification |
| Number of Pairs | 20 (40 Conductors) |
| Conductor Diameter | 0.4 mm |
| Conductor Material | Solid Bare Annealed Copper |
| Insulation Diameter | 1.0 mm |
| Insulation Material | High Density Polyethylene (HDPE) |
| Shielding (1) | Spiral PP Color Tape (Grouped Every 20 Pairs) |
| Shielding (2) | Polyester Tape Wrap |
| Shielding (3) | Non-Corrugated Aluminium Tape – 0.25 mm |
| Inner Sheath | Black LDPE – 1.2 mm |
| Armouring Layer | Corrugated Steel Tape – 0.25 mm |
| Outer Sheath | Black LDPE – 1.8 mm |
| Grease Filling | Petroleum Jelly (Full Core) |
| Jacket Diameter | Approx. varies by shielding and sheathing |
| Packaging | Drum (500 or 1000 Meters) |
📈 Electrical Characteristics
| Property | Value |
| DC Resistance (Max) | 65.1 Ω/km |
| DC Resistance Unbalance (Max) | 5.00% |
| Insulation Resistance (500V DC) | > 3000 MΩ/km |
| Working Capacitance (800Hz) | ≤ 57 nF/km |
| Pair-to-Pair Capacitance Unbalance (800Hz/300m) | ≤ 250 pF/km |
| Electrical Strength (1 min) - Conductor to Conductor | 1 KV |
| Electrical Strength (1 min) - Conductor to Shield | 3 KV |
🎯 Applications
- Direct Burial Telephone Lines
- Underground Telecom Installations
- Long-Distance Analog & Voice Transmission
- PBX and Intercom Networks
- Harsh Environment Signal Cabling
Design
INSULATION CHROMATOGRAM
CHARACTERISTICS
🛠️ Engineered by PONY CABLES – The Ultimate Choice for Cabling
💼 Built to perform reliably in the most demanding telecom environments.
