Armoured 30 Pairs Telephone Cable - (0.4mm)Mtr
Armoured 30 Pairs Telephone Cable - (0.4mm)Mtr
Sold by: MA Tech
🔷 Armoured 30 Pair Telephone Cable – 0.4mm (Sold by the Meter, Drum Packaging)
Category: Outdoor Telephone Cable | Jelly Filled | Armoured | LDPE Jacket
📘 Product Overview
The Armoured 30 Pair Telephone Cable is built to deliver high-performance voice and signal transmission for outdoor and underground applications. With solid annealed copper conductors, HDPE insulation, and core waterblocking jelly filling, this cable offers durability, insulation reliability, and protection in harsh environments.

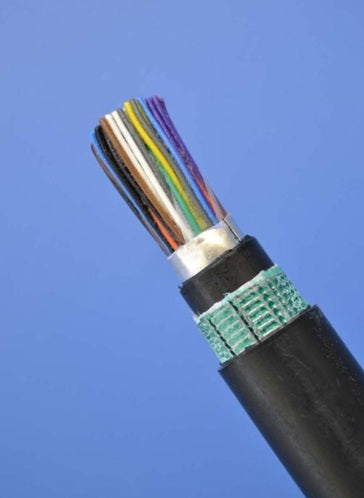

The rugged construction includes multi-stage shielding, corrugated steel armor, and dual-layer LDPE sheathing, making it suitable for direct burial, moisture-prone, and industrial telecom installations.
Armoured 30 Pair Telephone Cable specially design ki gayi hai taake outdoor aur underground applications mein high-performance voice aur signal transmission ensure ki ja sake. Is cable mein solid annealed copper conductors, HDPE insulation, aur core waterblocking jelly filling shamil hai, jo ise harsh environments ke liye durable aur reliable banata hai.
Iski rugged construction mein multi-stage shielding, corrugated steel armor, aur dual-layer LDPE sheathing shamil hoti hai — jo ise direct burial, moisture-prone areas, aur industrial telecom installations ke liye perfect choice banata hai.
✅ Key Features
- 22 AWG (0.4 mm) Solid Bare Copper Conductors
- Waterblocking Jelly-Filled Core
- Triple Shielding: PP Tape, Aluminium Tape, Corrugated Steel Tape
- High-Density Polyethylene (HDPE) Insulation
- Black LDPE Inner and Outer Sheaths
- Moisture-Proof Construction & Anti-Rodent Armoring
- Low Crosstalk – All Pairs Can Operate Simultaneously
- Available in 500 or 1000 Meter Drums
📊 Technical Specifications
| Attribute | Specification |
| Number of Pairs | 30 (60 Conductors) |
| Conductor Diameter | 0.4 mm |
| Conductor Material | Solid Bare Annealed Copper |
| Insulation Diameter | 1.0 mm |
| Insulation Material | High Density Polyethylene (HDPE) |
| Shielding (1) | Spiral PP Color Tape (Grouped: 9 + 5 + 8×2 Pairs) |
| Shielding (2) | Polyester Tape Wrap |
| Shielding (3) | Non-Corrugated Aluminium Tape – 0.25 mm |
| Inner Sheath | Black LDPE – 1.2 mm |
| Armouring Layer | Corrugated Steel Tape – 0.25 mm |
| Outer Sheath | Black LDPE – 1.8 mm |
| Grease Filling | Core Filled with Waterblocking Jelly |
| Jacket Diameter | Varies based on build layers |
| Packaging | Drum (500 or 1000 Meters) |
📈 Electrical Characteristics
| Property | Value |
| DC Resistance (Max) | 65.1 Ω/km |
| DC Resistance Unbalance (Max) | 5.00% |
| Insulation Resistance (500V DC) | > 3000 MΩ/km |
| Working Capacitance (800Hz) | ≤ 58 nF/km (≤ 10 Pairs), ≤ 57 nF/km (>10 Pairs) |
| Pair-to-Pair Capacitance Unbalance (800Hz/300m) | ≤ 250 pF/km |
| Electrical Strength (1 min) - Conductor to Conductor | 1 KV |
| Electrical Strength (1 min) - Conductor to Shield | 3 KV |
🎯 Applications
- Long-Distance Analog and Voice Transmission
- Underground and Direct Burial Telephone Lines
- PBX, Intercom, and Security Systems
- Moisture and Rodent-Prone Environments
- Harsh Industrial Outdoor Installations
Design
INSULATION CHROMATOGRAM
CHARACTERISTICS
🛠️ Engineered by PONY CABLES – The Ultimate Choice for Cabling
💼 Trusted for reliability and durability in extreme field conditions.
