Armoured 50 Pairs Telephone Cable - (0.4mm)Mtr
Armoured 50 Pairs Telephone Cable - (0.4mm)Mtr
Sold by: MA Tech

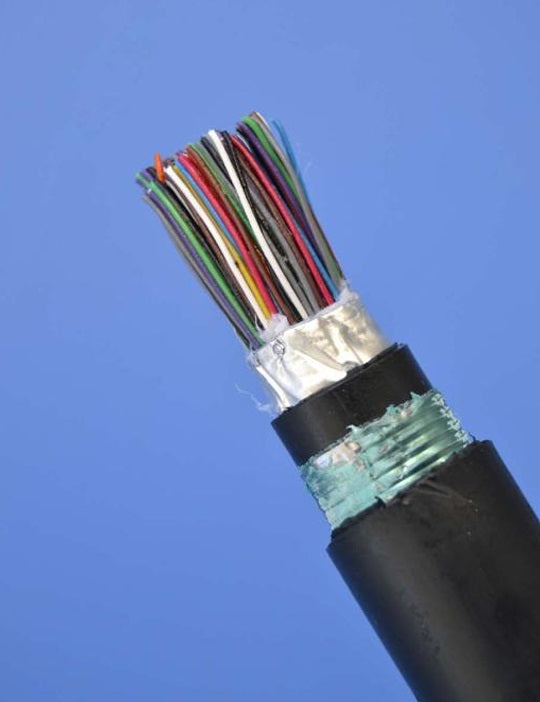

🔷 Armoured 50 Pair Telephone Cable – 0.4mm (Sold by the Meter, Drum Packaging)
Category: Outdoor Telephone Cable | Jelly Filled | Armoured | LDPE Jacket
📘 Product Overview
The Armoured 50 Pair Telephone Cable is engineered for long-distance outdoor telecommunication where rugged durability and moisture resistance are essential. With HDPE insulation, waterblocking grease filling, and triple-layer shielding including corrugated steel armor, this cable offers excellent mechanical and environmental protection.
Suitable for underground installations and high-density PBX wiring, it’s a top choice for reliability in commercial and industrial telecom systems.
Armoured 50 Pair Telephone Cable ko khas taur par long-distance outdoor telecommunication ke liye design kiya gaya hai jahan mazbooti aur moisture resistance zaroori ho. Is cable mein HDPE insulation, grease-filled waterblocking core, aur teen-layer shielding (jisme corrugated steel armor bhi shamil hai) mojud hai jo ise mechanical aur environmental protection mein behtareen banata hai.
Yeh cable underground installations aur high-density PBX wiring ke liye ideal hai – ek reliable solution jo commercial aur industrial telecom systems mein barah-e-raast kaam karta hai.
✅ Key Features
- 22 AWG (0.4 mm) Solid Bare Annealed Copper Conductors
- Waterblocking Grease-Filled Core
- Multiple Shields: PP Tape, Aluminium Tape, Corrugated Steel Tape
- HDPE Insulation for Improved Electrical Stability
- Black LDPE Inner and Outer Jackets
- Superior Crosstalk Isolation
- Designed for Harsh, Moist, and Rodent-Prone Environments
- Available in 500 or 1000 Meter Drums
📊 Technical Specifications
| Attribute | Specification |
| Number of Pairs | 50 (100 Conductors) |
| Conductor Diameter | 0.4 mm |
| Conductor Material | Solid Bare Annealed Copper |
| Insulation Diameter | 1.0 mm |
| Insulation Material | High Density Polyethylene (HDPE) |
| Shielding (1) | Spiral PP Color Tape (Grouped 12×2 + 13×2 Pairs) |
| Shielding (2) | Polyester Tape Wrap |
| Shielding (3) | Non-Corrugated Aluminium Tape – 0.25 mm |
| Inner Sheath | Black LDPE – 1.2 mm |
| Armouring Layer | Corrugated Steel Tape – 0.25 mm |
| Outer Sheath | Black LDPE – 1.8 mm |
| Grease Filling | Full Waterblocking Jelly Filling |
| Packaging | Drum (500 or 1000 Meters) |
📈 Electrical Characteristics
| Property | Value |
| DC Resistance (Max) | 65.1 Ω/km |
| DC Resistance Unbalance (Max) | 5.00% |
| Insulation Resistance (500V DC) | > 3000 MΩ/km |
| Working Capacitance (800Hz) | ≤ 58 nF/km (≤ 10 Pairs), ≤ 57 nF/km (>10 Pairs) |
| Pair-to-Pair Capacitance Unbalance (800Hz/300m) | ≤ 250 pF/km |
| Electrical Strength (1 min) - Conductor to Conductor | 1 KV |
| Electrical Strength (1 min) - Conductor to Shield | 3 KV |
🎯 Applications
- Underground Telephone Cabling
- External PBX and Multi-Line Voice Systems
- Direct Burial in Wet/Industrial Areas
- Long-Distance Analog Transmission
- Data/Voice in Harsh Outdoor Environments
Design
INSULATION CHROMATOGRAM
CHARACTERISTICS
🛠️ Engineered by PONY CABLES – The Ultimate Choice for Cabling
💼 Superior performance where protection, reliability, and quality matter most.
