4 Pair U/UTP PVC 24 AWG CAT 6 Networking Cable (Blue)
4 Pair U/UTP PVC 24 AWG CAT 6 Networking Cable (Blue)
Sold by: MA Tech

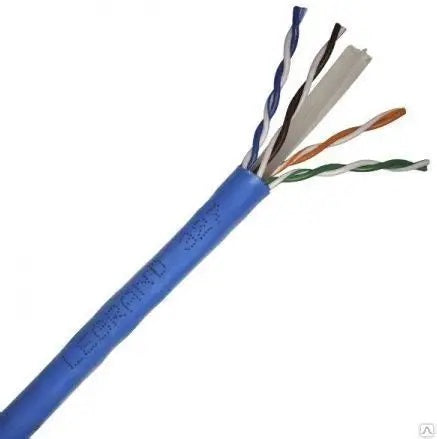

Cat6 U/UTP 4 Pair Networking Cable – 305m Coil | Solid Bare Copper | PVC Sheath
📦 Part #2410614 – Cat6 U/UTP Cable, 305m Coil
📘 Product Description
The PONY CABLES Cat6 U/UTP Networking Cable is designed for superior signal transmission and reliable performance in high-speed networking environments. This 305-meter coil of 4-pair twisted cable features 24AWG solid bare copper conductors, HDPE insulation, and a durable RoHS-compliant PVC outer sheath.
Built for both performance and durability, it includes a plastic separator for enhanced crosstalk protection and a nylon rip cord for faster, cleaner installations. Suitable for indoor structured cabling, LAN systems, CCTV, IP phones, and broadband internet distribution.
PONY CABLES ka Cat6 U/UTP Networking Cable high-speed networking environments ke liye specially design kiya gaya hai, jahan superior signal transmission aur reliable performance ki zarurat hoti hai.
Ye 305-meter coil 4-pair twisted cable par mushtamil hai jismein 24AWG solid bare copper conductors, HDPE insulation, aur ek mazboot RoHS-compliant PVC outer sheath shamil hai.
Is cable ko performance aur durability dono ko madde nazar rakh kar banaya gaya hai. Ismein plastic separator hota hai jo crosstalk ko kam karta hai, aur nylon rip cord jo installation ko asaan aur tezi se complete karne mein madad deta hai.
Yeh cable indoor structured cabling, LAN systems, CCTV, IP phones, aur broadband internet distribution ke liye bilkul munasib hai.
✅ Key Features & Attributes
- Category: CAT6 U/UTP (Unshielded Twisted Pair)
- Conductor: 24 AWG, Solid Bare Copper
- No. of Conductors: 8 (4 twisted pairs)
- Conductor Diameter: 0.50 mm
- Insulation: HDPE (High Density Polyethylene), Ø 0.98 ± 0.03 mm
- Jacket: PVC Sheath, RoHS Compliant
- Jacket Thickness: 0.55 ± 0.05 mm
- Outer Cable Diameter (O.D): 6.0 ± 0.4 mm
- Cable Structure: 4 Pair, U/UTP, color-coded
- Color Code: Blue, Orange, Green, Brown with corresponding white-striped pairs
- Separator: Plastic Cross Separator for reduced crosstalk
- Rip Cord: Nylon rip cord for quick stripping
- Flame Retardant: Yes
- Temperature Range: -20°C to +75°C
- Cold Bend Test: No visible cracks at -20°C ± 2°C
- Aging Test: 100°C x 24 hrs x 7 days
- Sheath Strength Before Aging:
- Tensile Strength: ≥ 13.5 MPa
- Elongation: ≥ 150%
- Sheath Strength After Aging:
- Tensile Strength: ≥ 12.5 MPa
- Elongation: ≥ 125%
✅ Key Features & Attributes
- Category: CAT6 U/UTP (Unshielded Twisted Pair)
- Conductor: 24 AWG, Solid Bare Copper
- No. of Conductors: 8 (4 twisted pairs)
- Conductor Diameter: 0.50 mm
- Insulation: HDPE (High Density Polyethylene), Ø 0.98 ± 0.03 mm
- Jacket: PVC Sheath, RoHS Compliant
- Jacket Thickness: 0.55 ± 0.05 mm
- Outer Cable Diameter (O.D): 6.0 ± 0.4 mm
- Cable Structure: 4 Pair, U/UTP, color-coded
- Color Code: Blue, Orange, Green, Brown (with white-striped pairs)
- Separator: Plastic Cross Separator – Crosstalk ko reduce karta hai
- Rip Cord: Nylon rip cord – Fast aur clean stripping ke liye
- Flame Retardant: Haan
- Temperature Range: -20°C se +75°C tak
- Cold Bend Test: -20°C ± 2°C par koi visible cracks nahi
- Aging Test: 100°C × 24 ghante × 7 din
- Sheath Strength (Before Aging):
- Tensile Strength: ≥ 13.5 MPa
- Elongation: ≥ 150%
- Sheath Strength (After Aging):
- Tensile Strength: ≥ 12.5 MPa
- Elongation: ≥ 125%
📊 Technical Specifications
| Item | Specification |
| Cable Type | Category 6 (Cat6), U/UTP (Unshielded) |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 24AWG (0.50 mm) |
| Number of Conductors | 8 (4 Pairs) |
| Insulation Material | High-Density Polyethylene (HDPE) |
| Insulation Diameter | 0.98 ± 0.03 mm |
| Separator | Plastic Cross Separator |
| Rip Cord | Yes (Nylon) |
| Jacket Material | PVC (RoHS Compliant) |
| Jacket Thickness | 0.55 ± 0.05 mm |
| Outer Diameter | 6.0 ± 0.4 mm |
| Color Coding | Blue, Orange, Green, Brown (with Tracers) |
⚡ Electrical Characteristics @ 20°C
| Parameter | Specification |
| Characteristic Impedance | 100 ± 15 Ω (1.0–250.0 MHz) |
| Delay Skew | ≤ 45 ns / 100m |
| DC Resistance (Max) | 9.38 Ω / 100m |
| Conductor Resistance Unbalance | ≤ 5.0% |
📦 Packing & Logistics
| Item | Specification |
| Packaging Type | Coil Packing (Plastic Wrapped) |
| Length per Coil | 305 meters (1,000 feet) |
| Packaging Form | Compact Round Coil (Shrink Film) |
| Gross Weight per Coil | ≈ 12.5 kg ± 0.5 kg |
| Label Information | Part Number, Length, Barcode, Specs |
| Outer Box (Optional) | Available for bulk/export orders |
🎯 Applications
- LAN / Ethernet Networks
- CCTV Camera Installations
- VoIP & IP Telephony
- Data Centers & Patch Panels
- Structured Cabling in Offices & Homes
Design:
INSULATION CHROMATOGRAM
MAIN TRANSMISSION CHARACTERISTICS
🌐 PONY CABLES – Trusted for Quality, Built for Speed
