Configurable Network Paging Station transmitting audio and control signal through the Ethernet
Configurable Network Paging Station transmitting audio and control signal through the Ethernet
Sold by: MA Tech

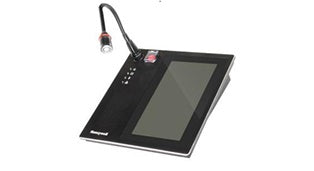

Configurable Network Paging Station with 7” Touchscreen, Built-in Speaker, and Intercommunication
(Each Unit Individually Box Packed)
X-NPMS
CONFIGURABLE NETWORK PAGING STATION
• Easy touch screen operation with 7’’ TFT LCD screen and simple user interface
• Optional gooseneck microphone or PTT microphone
• Built-in loudspeaker for audio monitoring and intercommunication function
• Configurable keys for audio task delivery, zoning and grouping
• Manual emergency broadcast
• Normal broadcast control
• Zoning and grouping broadcast
• Monitoring function
• Internal communication
• Faults monitoring
• Automatic record
• Quick and simple broadcast
• Recording audio in advance and broadcasting
• Broadcasting the audio file of U-disk
• Daily record
- 7” TFT LCD Touch Screen – Asaan aur intuitive operation ke liye
- Optional Microphone – Gooseneck ya Push-to-Talk (PTT) mic ka intekhaab
- Built-in Loudspeaker – Audio monitoring aur intercom ke liye
- Configurable Keys – Audio task delivery, zoning, aur grouping ke liye customize kiya ja sakta hai
- Manual Emergency Broadcast – Haalat-e-iztirar mein dastī transmission
- Normal aur Scheduled Broadcast Control
- Zoning, Grouping & Monitoring Functionality
- Internal Communication Support
- Fault Monitoring System
- Automatic Recording & Daily Logs
- Pre-recorded Audio File Se Broadcasting (USB/U-Disk Support)
DESCRIPTION
The X-NPMS connects to the X-618 system, transmitting audio and control signal through the Ethernet. It is used for live paging, audio task delivery, audio monitoring zones, and intercommunication.
X-NPMS, X-618 Public Address System ke sath Ethernet ke zariye connect hota hai aur audio ke sath control signals bhi transmit karta hai. Yeh unit live paging, audio task delivery, zone monitoring, aur intercommunication ke liye use hota hai.
FEATURES
Indicators
- POWER Indicator: Green means normal power supply
- RUNNING Indicator: Flashing green indicates normal operation
- FAULT Indicator: Flashing or steady yellow for system faults
- NETWORK Indicator: Green = normal, Yellow = disconnected or communication error
- MIC WORKING STATUS: Green = working, Yellow = fault, Flashing green = broadcasting tone
- POWER (Green): Normal power supply
- RUNNING (Flashing Green): System theek chal raha hai
- FAULT (Yellow): Fault ya error status
- NETWORK (Green/Yellow): Green = network theek, Yellow = disconnect ya error
- MIC STATUS (Green/Yellow/Flashing Green): Mic ka real-time status show karta hai
Touch Screen
- Innovative 7-inch color LCD
- No extra key module needed
- Supervise system, select zones, assign groups
- Configure broadcast playlists and timings
- 7-inch color LCD display ke sath asaan navigation
- Extra key modules ki zarurat nahi
- Zones select karna, groups assign karna, aur broadcast playlists/timing configure karna mumkin
- Complete system supervision via screen
Connections
- Up to 250 X-NPMS can be connected via Ethernet
- Can act as a node on any existing network (with adequate bandwidth)
- Detachable gooseneck mic for real-time broadcasting
- Built-in speaker for monitoring and full-duplex intercom
Audio Transmission
- Digitized audio eliminates distortion
- Supports fail-safe operation – can broadcast via other DCS units in case of failure
Connectivity & Audio Transmission
- 250 tak X-NPMS units ko Ethernet ke zariye connect kiya ja sakta hai
- Existing network per as a node operate karta hai (agar bandwidth sufficient ho)
- Detachable gooseneck mic real-time broadcasting ke liye
- Built-in speaker zone monitoring aur full-duplex intercom ke liye
- Digitized audio signal distortion ko eliminate karta hai
- Fail-safe operation: Agar ek unit fail ho jaye to dusri DCS unit se broadcast possible hai
SPECIFICATIONS
| Specification | Details |
| Model | X-NPMS |
| Type | Configurable Network Paging Station |
| Touchscreen | 7-inch TFT LCD |
| Power Supply | DC 24V |
| Audio Transmission | Digital |
| Microphone Options | Gooseneck / PTT (detachable) |
| Speaker | Built-in for monitoring and intercom |
| Network Protocol | Ethernet (RJ45) |
| Sampling Rate | Supported (Exact value not specified) |
| Supported Devices | Up to 250 X-NPMS via X-618 system |
| Backup Capability | Supports fail-safe operation |
| Weight | 2.5 kg. |
| Packing | Each Unit Individually Box Packed |
| Brand | Honeywell |
TECHNICAL SPECIFICATIONS:
ORDERING INFORMATION:
