Electronic, 2 C #20 Str TC, PO Ins, OS, PVC Jkt, CM 20 AWG (Mtr)
Electronic, 2 C #20 Str TC, PO Ins, OS, PVC Jkt, CM 20 AWG (Mtr)
Sold by: MA Tech

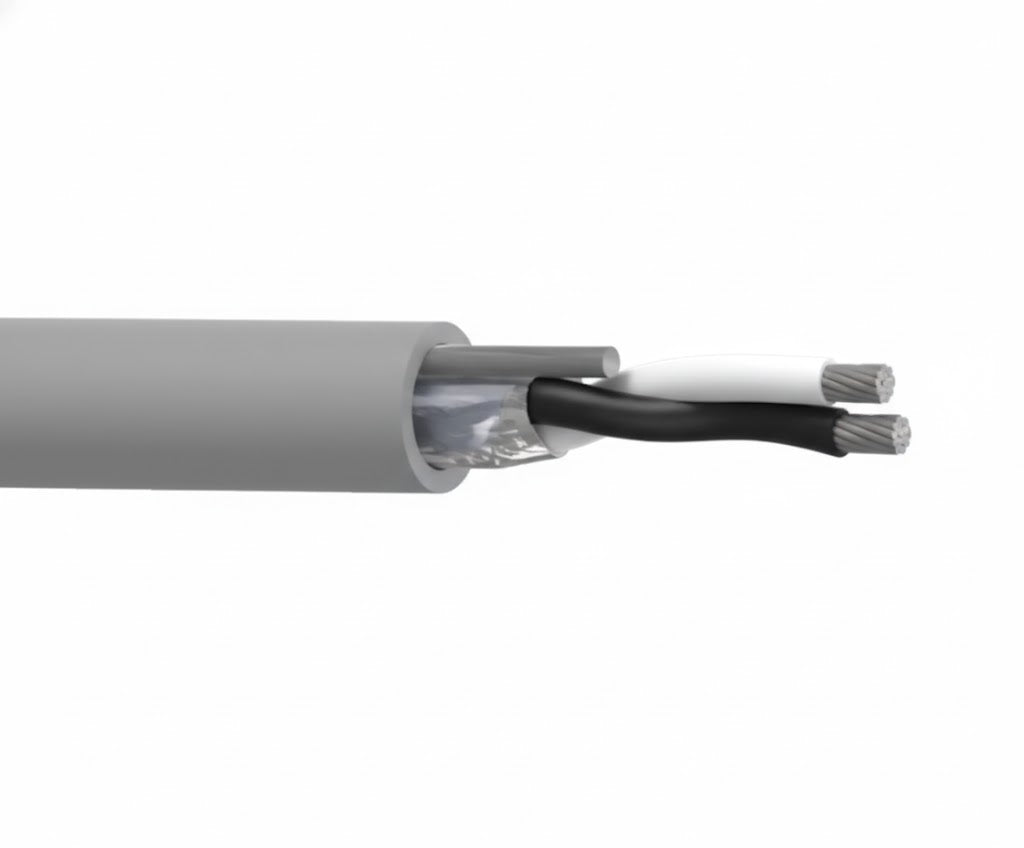

Belden 8762 Electronic, 2 C #20 Str TC, PO Ins, OS, PVC Jkt, CM 20 AWG
🧾 Product Description
Electronic Cable | 20 AWG | 2-Conductor | Shielded | CM Rated
Belden 8762 is a 2-conductor shielded cable constructed with 20 AWG tinned copper conductors, polyethylene insulation, and an overall Beldfoil® shield. It features a rugged PVC jacket and is ideal for audio, control, and instrumentation applications in indoor commercial environments. It is UL CM rated and RoHS compliant.
Belden 8762 aik shielded electronic cable hai jo 20 AWG ke 2 tinned copper conductors par مشتمل hoti hai. Is cable mein polyethylene insulation diya gaya hai aur poori cable ko Beldfoil® overall shield se cover kiya gaya hai, jo EMI/RFI interference se protection deta hai.
Cable ka mazboot PVC jacket ise durable aur long-lasting banata hai, especially audio, control, aur instrumentation applications ke liye jo indoor commercial environments mein use hoti hain.
Ye cable UL CM rated hai (Communications Multipurpose) aur RoHS compliant bhi hai, yani ye environmentally safe hai aur international standards ko follow karti hai.
🔧 Technical Specifications
Conductor & Cable Construction
Attribute | Value |
Conductor Count | 2 (1 Pair) |
Conductor Size | 20 AWG |
Stranding | 7x28 Stranded |
Material | Tinned Copper (TC) |
Lay Direction | Left-hand lay |
Twists | 6 twists/ft |
Color Code | Black & Clear |
Insulation & Jacket
Attribute | Value |
Insulation Material | Polyethylene (PO) |
Insulation Thickness | 0.017 in |
Jacket Material | PVC (Polyvinyl Chloride) |
Jacket Thickness | 0.028 in |
Outer Diameter | 0.204 in |
Color | Chrome |
Shielding
Attribute | Value |
Shield Type | Beldfoil® (100% Aluminum/Polyester Tape) |
Drain Wire | 20 AWG, 7x28 Stranded Tinned Copper |
⚡ Electrical Characteristics
Attribute | Value |
DC Resistance (20°C) | 9.5 Ohms/1000 ft |
Capacitance (Cond–Cond) | 27 pF/ft |
Capacitance (Cond–Shield) | 49 pF/ft |
Inductance | 0.18 µH/ft |
Impedance | 56 Ohms |
Max. Voltage Rating | 300 V RMS (UL AWM Style 2092) |
Max. Current Rating | 3.9 Amps per conductor @ 25°C |
🌡️ Mechanical & Environmental Ratings
Attribute | Value |
Operating Temp Range | -20°C to +60°C |
UL Temp Rating | 60°C |
Bulk Cable Weight | 21 lbs/1000 ft |
Max. Pulling Tension | 46 lbs |
Min. Bend Radius (Install) | 2.25 in |
Indoor Use | Yes |
Plenum Rated | No |
✅ Compliance & Standards
Standard / Directive | Compliant |
NEC Article | 800 |
UL/NEC Specification | CM |
UL AWM Style | 2092 (300 V, 60°C) |
CPR Euroclass | Eca |
UL Flame Test | UL1685 UL Loading |
CSA Flame Test | FT1 |
IEC Flame Test | IEC 60332-1-2 |
EU RoHS / RoHS II / 2015/863 | Yes |
EU WEEE (2012/19/EU) | Yes |
EU ELV / BFR / CE | Yes |
China RoHS (MII Order #39) | Yes |
CA Prop 65 | Yes |
📦 Available Variants
Item # | Length | Color | UPC | Notes |
8762 060100 | 100 ft | Chrome | 6.12825E+11 | — |
8762 060250 | 250 ft | Chrome | 6.12825E+11 | — |
8762 060500 | 500 ft | Chrome | 6.12825E+11 | Crate Reel (C) |
8762 0601000 | 1,000 ft | Chrome | 6.12825E+11 | Crate Reel (C) |
8762 0602000 | 2,000 ft | Chrome | 6.12825E+11 | Crate Reel (C) |
8762 06010000 | 10,000 ft | Chrome | 6.12825E+11 | Crate, Y |
8762 060U500 | 500 ft | Chrome | 6.12825E+11 | — |
8762 060U1000 | 1,000 ft | Chrome | 6.12825E+11 | — |
8762.00U152 | 152 m | Chrome | — | Metric Length |
8762.00U305 | 305 m | Chrome | — | Metric Length |
8762.0161 | 610 m | Chrome | — | Metric Length |
Notes:
- C = Crate reel put-up
- Y = Final length may vary ±10–20%; may include 2 pieces (min. 1500 ft each)
