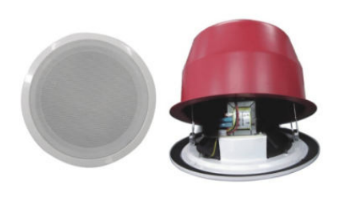

Fire proof ceiling speaker 6/3/1.5/0.75W L-VCM6A/EN(C)
📝 Product Overview
The Honeywell L-VCM6A/EN(C) is a fireproof ceiling loudspeaker specifically designed for voice alarm systems. Ideal for installations in suspended ceilings, it ensures even sound distribution and system integrity during fire emergencies. With built-in fire protection components (in variant "C"), this speaker continues to function in critical situations — maintaining life-safety audio delivery even when other areas of the circuit are compromised.
The speaker comes with a flush-mounting mechanism using spring clamps, and the fire dome can be easily fixed via sliding brackets and wing nuts, allowing for quick installation.
Honeywell L-VCM6A/EN(C) ek fireproof ceiling loudspeaker hai jo khas tor par voice alarm systems ke liye design kiya gaya hai. Yeh suspended ceilings mein install karne ke liye perfect hai aur fire emergencies ke dauran awaaz ko barabar tareeke se phailata hai aur system ki integrity ko barkarar rakhta hai.
Variant "C" mein built-in fire protection components bhi hotay hain, jo critical situations mein speaker ko chalata rehta hai — yani jab circuit ke doosre hisson mein masla ho, tab bhi yeh life-safety audio delivery continue karta hai.
Is speaker mein flush-mounting mechanism hota hai jo spring clamps ke zariye hota hai, aur fire dome ko sliding brackets aur wing nuts se asani se fix kiya ja sakta hai, jis se installation tez aur asaan ho jati hai.
🌟 Key Features
- 🔥 Fireproof construction with steel fire dome (variant "C")
- 📢 High SPL (99 dB @ 1m at 6W) for clear emergency communication
- 🎵 Excellent sound reproduction over a wide frequency range
- 🧯 Thermal fuse (150°C) ensures circuit protection during fires
- 💡 DC blocking capacitor (in "C" model) maintains system continuity
- 🧩 Flush mount design for suspended ceilings
- 🛠️ Ceramic terminal block for reliable and heat-resistant wiring
- ✅ EN54-24 certified for voice alarm system use (safety critical)
- 🎨 Available in Red (RAL3000) dome & White (RAL9003) grille
📊 Technical Specifications
🔌 Electrical
| Parameter | Value |
| Model | L-VCM6A/EN / L-VCM6A/EN(C) |
| Rated Power | 6 W |
| Max Power | 9 W |
| Power Taps @ 100V | 6 / 3 / 1.5 / 0.75 W |
| Power Taps @ 70V | 3 / 1.5 / 0.75 / 0.375 W |
| Input Voltage | 100 V / 70 V |
| Impedance (@ 100V) | 1.7k / 3.3k / 6.7k / 13k ohms |
| Frequency Response (-10 dB) | 170 Hz – 20 kHz |
| SPL @ 1m (100 Hz – 10 kHz) | 99 dB / 91 dB |
| SPL @ 4m (100 Hz – 10 kHz) | 87 dB / 79 dB |
| Dispersion Angle (1 kHz / -6 dB) | 170° |
⚙️ Mechanical
| Parameter | Value |
| Speaker Diameter | 6.5” |
| Dimensions (Φ × H) | 222 mm × 129 mm |
| Hole Cutout Size | Φ 195 mm |
| Weight | 1.57 kg |
| Front Grill Color | White (RAL9003) |
| Dome Color | Red (RAL3000) |
| Fire Dome Material | Steel |
🔥 Fire Safety Components
| Component | Model Variant |
| Thermal Fuse (150°C) | Present in both models |
| DC Blocking Capacitor | Present in L-VCM6A/EN(C) only |
| Ceramic Terminal | Yes |
🏢 Applications
This loudspeaker is suitable for:
- 🧯 Voice evacuation systems in commercial buildings
- 🏢 Corporate offices
- 🏫 Schools and universities
- 🛍️ Shopping malls
- 🏨 Hotels and hospitality venues
- 🏭 Industrial sites
Especially useful in life safety systems where maintaining communication during emergencies is critical.
📦 Ordering Information
| Model | Description |
| L-VCM6A/EN | Fireproof ceiling speaker without capacitor |
| L-VCM6A/EN(C) | Fireproof ceiling speaker with capacitor and ceramic fuse |
