300W Compact amplifier solution featuring with integrated audio source, 5 zone selectors
300W Compact amplifier solution featuring with integrated audio source, 5 zone selectors
Sold by: MA Tech

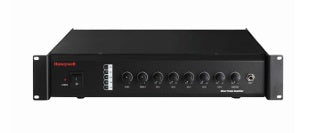

300W Compact Class-D Mixer Amplifier with Integrated Audio Source & 5-Zone Selector (HN-5300R)
(Each Unit Individually Box Packed)
Product Overview:
The HN-5300R is a 300W compact Class-D mixer amplifier featuring an integrated audio source, 5-zone selector, and a full suite of audio control tools. Designed to meet the demands of medium-to-large audio installations, this model offers volume control for each input, 7-band graphic equalizer, and 5-zone paging support.
Built with efficiency and reliability in mind, the HN-5300R delivers stable performance, enhanced durability, and flexible expandability, making it ideal for schools, offices, houses of worship, commercial buildings, and public venues.
HN-5300R ek 300W ka compact Class-D mixer amplifier hai jo integrated audio source, 5-zone selector, aur mukammal audio control tools ke sath aata hai.
Ye model medium se le kar large audio installations tak ke liye design kiya gaya hai, jahan har input ke liye alag volume control, 7-band graphic equalizer, aur 5-zone paging support ki zarurat hoti hai.
Efficiency aur reliability ko madde nazar rakhte hue banaya gaya, HN-5300R stable performance, enhanced durability, aur flexible expandability offer karta hai — jo ise schools, offices, masajid, commercial buildings, aur public venues ke liye ideal banata hai.
Key Features:
- 300W Class-D Power Output – High power in a compact frame
- Integrated Audio Source – No need for external media input
- 5-Zone Audio Selector – Direct sound distribution control
- 7-Band Graphic Equalizer – Fine-tune sound quality (125 Hz – 8 kHz)
- 5-Zone Remote Paging Microphone Compatibility – Smooth announcements
- 3-Level Priority with Mute – Prioritize emergency paging or overrides
- Telephone Paging Input + Chime Trigger (Dry Contact)
- Expandable – Connect to external mixers and amplifiers via LINK and PRE-AMP
- Advanced Protection – Current limiting, thermal, and overload protection
- Compact & Lightweight Design – Easy to install, easy to handle
- Each Unit Comes Individually Boxed
Connection Diagram HN-5300R
Specifications:
| Parameter | Specification |
| Model | HN-5300R |
| Rated Power Output | 300W |
| Output Voltage | 49V (8Ω), 70V (33.3Ω), 100V (16.3Ω) |
| Input Sensitivity | Mic: -50 dB / Line: -6 dB / RCA: -50 to -6 dB |
| Frequency Response | 100 Hz ~ 10 kHz (±1.5 dB / -3 dB) |
| Graphic Equalizer | 7 Bands (125 Hz to 8 kHz, ±12 dB) |
| Signal-to-Noise Ratio | > 75 dB |
| Total Harmonic Distortion (THD) | < 0.5% |
| Crosstalk | -60 dB @ 1 kHz |
| Phantom Power | 15 VDC |
| Paging Zones | 5 |
| Telephone Paging Input | Yes |
| Chime Trigger | Dry Contact |
| Cooling | Convection Cooled |
| Dimensions (W x H x D) | 420 x 88 x 320 mm |
| Net Weight | 10.93 kg |
| Operating Temperature/Humidity | 0°C ~ 40°C / up to 95% RH (non-condensing) |
Technical Specification
