240 Watts IP Amplifier
240 Watts IP Amplifier
Sold by: MA Tech
Honeywell KB-D1240IP 1×240 IP Amplifier
🔊 KB-D1240IP – 1×240 IP Network Audio Amplifier
The KB-D1240IP is a high-performance IP-based digital amplifier designed to integrate with advanced public address, paging, and emergency broadcast systems. Built under the Honeywell Audiovisuals brand, it delivers 240W of rated power with digital control, remote management, and versatile connectivity features, making it suitable for large-scale public, commercial, industrial, and institutional audio systems.
KB-D1240IP ek high-performance IP-based digital amplifier hai jo advanced public address, paging, aur emergency broadcast systems ke saath integrate karne ke liye design kiya gaya hai. Honeywell Audiovisuals ke brand ke tehat banaya gaya yeh amplifier 240W ka rated power deta hai, aur is mein digital control, remote management aur versatile connectivity mojood hai – jo ise public, commercial, industrial, aur institutional audio systems ke liye ideal banata hai.
📝 Detailed Product Description
The KB-D1240IP combines network-based audio distribution with robust amplification, offering seamless integration into IP-based PA systems. As a 1-channel, 240-watt digital IP amplifier, it supports a wide range of functions including network multicast, remote control, audio playback, and system protection mechanisms.
This amplifier is designed with both local and network control options, supporting SD card and USB playback, remote IR control, and Ethernet-based control and streaming. It is engineered to deliver clear, high-fidelity audio output, even in demanding environments, while providing flexible audio input/output interfaces and intelligent system protection.
📝 Tafseelat (Product Description)
KB-D1240IP network-based audio distribution ko powerful amplification ke saath combine karta hai. Yeh ek 1-channel, 240-watt digital IP amplifier hai jo network multicast, remote control, audio playback, aur system protection jaise multiple features support karta hai.
Amplifier local aur network dono control options provide karta hai – SD card, USB playback, remote IR control, aur Ethernet ke zariye full streaming aur control ki sahulat deta hai. High-quality audio output deliver karta hai – chahe environment tough ho – aur smart protection system iski reliability ko barhata hai.
🔧 Key Features
✅ High Power Output
- Rated power of 240W suitable for driving 100V speaker lines in large zones.
- Supports maximum power output up to 320W without distortion.
✅ Flexible Audio Inputs/Outputs
- Microphone input, line input, and line output options.
- Audio signal can be routed to an external amplifier or monitored via line outputs.
- SD card port allows direct local media playback.
✅ Network-Enabled
- Equipped with a 10/100M adaptive RJ45 Ethernet port.
- Supports IP multicast, on-demand control, and paging through the network.
- Can be controlled via central software or compatible network terminals.
✅ User-Friendly Front Panel
- LCD display shows real-time device status and program information.
- Signal, clipping, and protection indicators provide visual feedback.
- Dedicated knobs for MIC, line input, and output volume control.
- IR receiver enables remote control of core functions.
✅ Comprehensive Remote Control
- Infrared remote control supports:
- Source selection (Local/Network/USB)
- Navigation through menus
- Volume, playback, and system settings
- On-demand audio selection and paging (reserved)
✅ Built-In Safety and Protection
- Automatic protection from:
- Over-temperature
- Over-voltage
- Under-voltage
- Over-current conditions
- Protection indicator light warns users of system anomalies.
- Ensures system longevity and continuous performance.
✅ Versatile Installation Options
- Can be integrated into rack-mount PA systems.
- Comes with complete accessories including power cable, network cable, and wiring terminals for easy deployment.
🧰 Installation and Maintenance
The KB-D1240IP is designed for simple installation with clearly labeled front and rear panels. Basic tools such as a Phillips screwdriver and multimeter are sufficient for mounting and connection. The included wiring terminals support dry contact integration and speaker line outputs, ensuring compatibility with other professional-grade audio systems.
The system can be maintained easily via its intuitive interface, while remote monitoring and diagnostics can be performed through the network.
🔧 Key Features – Numaya Khususiyaat
✅ High Power Output
- 240W ka rated output – 100V speaker lines ko drive karne ke liye
- 320W tak distortion-free maximum output support karta hai
✅ Flexible Audio Inputs/Outputs
- Microphone input, line input aur line output available
- SD card se media playback ka option
- External amplifier ya monitoring ke liye audio route kiya ja sakta hai
✅ Network-Enabled
- 10/100M RJ45 Ethernet port ke zariye full network compatibility
- IP multicast aur on-demand control
- Central software ya network terminal se operate kiya ja sakta hai
✅ User-Friendly Front Panel
- LCD display jo device status aur current program show karta hai
- Signal, clipping, aur protection indicators
- MIC, line input aur output ke volume knobs
- IR receiver for remote control
✅ Remote Control Functions
- Source selection: Local, Network, USB
- Menu navigation
- Volume aur playback control
- Audio aur paging system ke options (future use ke liye reserved)
✅ Built-In Protection System
- Over-temperature, over-voltage, under-voltage, aur over-current se automatic protection
- Protection indicator light system error batata hai
- System ko lambe waqt tak chalne ke laayak banata hai
✅ Easy Installation
- Rack-mount systems mein asaani se install ho sakta hai
- Complete accessories ke saath: power cable, network cable, aur terminals
- Front aur rear panels par clear labeling for easy wiring
🧰 Installation aur Maintenance
KB-D1240IP ki installation asaan hai – sirf basic tools chahiye jaise Phillips screwdriver aur multimeter. Wiring terminals dry contact aur speaker line outputs ke liye compatible hain. Remote monitoring aur fault diagnostics network ke through perform ki ja sakti hai, jo system ko hassle-free banata hai.

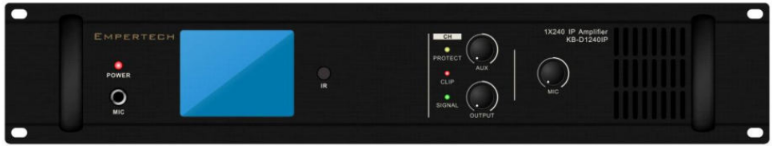

🔹 Front Panel Components
| No. | Name | Description |
| 1 | MIC | MIC input port (for condenser mic) |
| 2 | POWER | Power indicator (Red LED) |
| 3 | LCD | Displays system status & programs |
| 4 | IR | Infrared receiver (for remote control) |
| 5 | CH CLIP | Peak clipping indicator (Red) |
| 6 | CH SIGNAL | Signal status indicator (Green) |
| 7 | CH PROTECT | Amplifier protection indicator (Yellow) |
| 8 | CH OUTPUT | Output volume control knob |
| 9 | CH AUX | Line input volume control knob |
| 10 | MIC | Microphone volume control knob |
🔹 Rear Panel Components
| No. | Port | Description |
| 1 | 10/100M LAN | Ethernet connection port |
| 2 | Contact Input/Output | Dry contact (input reserved, output 3-line controller) |
| 3 | SD CARD | SD card slot |
| 4 | INPUT | Audio line input (e.g. PC, DVD) |
| 5 | OUTPUT | Audio output to external amplifier |
📊 Technical Specifications
| Parameter | Value |
| Power Supply Voltage | ~100–120V AC, 60Hz |
| Rated Output Power | 1×240W |
| Max Power Consumption | ≤320W |
| Speaker Output | 100V |
| Input Sensitivity | 1.4 VRMS |
| Input Impedance | 20 KΩ |
| Microphone Input | -42 dB ± 2 dB |
| Frequency Response | 70Hz – 18kHz (+1dB / -3dB) |
| Signal-to-Noise Ratio | ≥85 dB |
| Total Harmonic Distortion (THD) | ≤1% |
🧩 Ports and Interfaces
| Port | Quantity | Function |
| RJ45 Network Port | 1 | Network control and streaming |
| Speaker Line Output Port | 1 | Connects to speakers (100V) |
| MIC Input Port | 1 | Condenser microphone input |
| Line Input Port | 1 | Audio source input (PC/DVD) |
| Line Output Ports | 2 | External amplifier output |
| Standby Amplifier Input Port | 1 | For backup amplifier |
| Dry Contact Input Port | 1 | Reserved |
| Dry Contact Output Port | 1 | 3-wire controller |
| SD Card Port | 1 | Local media playback |
🌡️ Environmental & Physical Specifications
| Parameter | Value |
| Working Temperature | 0°C to +40°C |
| Storage Temperature | -10°C to +55°C |
| Humidity | <95%, non-condensing |
| Dimensions (W×H×D) | 370 × 484 × 88 mm |
| Packing Dimensions | 542 × 472 × 207 mm |
| Net Weight | 12.80 kg |
| Gross Weight | 14.46 kg |
🛠️ What’s in the Box
- 1× KB-D1240IP IP Amplifier
- 1× Remote Control
- 1× AC Power Cable
- 1× Fuse (3.15A)
- 1× Network Cable
- 1× Dry Contact Wiring Terminal (3.81-8P)
- 1× Speaker Output Terminal (5.08-8P)
- 1× User Manual
🎛️ Remote Control Functions
- Navigation: Direction keys (up/down/left/right), OK, Cancel
- Audio Control: Mute, Volume +/-, Play/Pause, Stop, Prev/Next Song
- Modes: Local, On-demand, USB, Paging (reserved), Extend (reserved)
- Settings: System settings, backlight, channel selection, password entry
