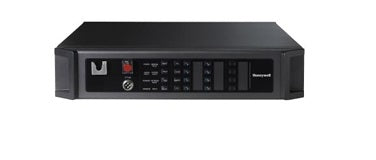

Honeywell X-DCS2000/EN Digital Integrated System Manager | Zone Expansion | Multiple Audio Source Support | Each Unit Individually Box Packed
Model: X-DCS2000
Packing: Each Unit Individually Box Packed
Description:
The Honeywell X-DCS2000/EN Digital Integrated System Manager (DCS) is the foundational unit of the X-618 Public Address and Voice Alarm System, combining multiple advanced functions into a single, reliable solution. This system manager supports zone expansion, multi-source audio input, broadcasting, monitoring, diagnostics, and file storage—all controlled via the powerful X-SMART management software.
With support for automatic volume adjustment, network-based expansion, and emergency broadcasting, it’s an ideal solution for mission-critical environments requiring high flexibility and robust control.
Honeywell X-DCS2000/EN ek digital integrated system manager hai jo X-618 Public Address aur Voice Alarm System ka core unit hai.
Yeh multiple advanced functions ko ek hi reliable solution mein combine karta hai — jisme zone expansion, multi-source audio input, broadcasting, monitoring, diagnostics, aur file storage shamil hain.
Yeh sab kuch powerful X-SMART management software ke zariye control kiya jata hai.
Automatic volume adjustment, network-based expansion, aur emergency broadcasting support ke sath, yeh system manager un mission-critical environments ke liye ideal hai jahan flexibility aur robust control zaroori hota hai.
Key Features:
-
Zone Expansion
Extend audio zones via software and Ethernet network integration. -
Multiple Audio Sources
Compatible with CD/DVD, FM tuner, cassette, and internet audio; supports remote paging and live announcements. -
Advanced Input/Output
Includes 8 dry-contact inputs/outputs, 8 speaker line outputs, record out, auxiliary inputs, and network audio inputs. -
Built-in Diagnostics & Redundancy
Real-time error detection across power, amplifiers, and speakers. Redundant amplifier and power switching for increased safety. -
Emergency Mode Shortcut
One-click emergency activation with red button triggers fire alarm broadcast and visual indicators. -
Broadcasting & Scheduling
Supports up to 4 audio streams concurrently. Includes timer broadcast scheduling and up to 255 priority levels. -
Audio File Storage
Built-in 1GB flash memory for storing announcements and playback files. -
Monitoring & Control
Internal speaker for zone/audio source monitoring; remote supervision possible over network.
Key Features:
-
Zone Expansion
Audio zones ko software aur Ethernet network ke zariye expand karna mumkin hai. -
Multiple Audio Sources
CD/DVD, FM tuner, cassette, aur internet audio ke sath compatible. Remote paging aur live announcements bhi supported hain. -
Advanced Input/Output
8 dry-contact inputs/outputs, 8 speaker line outputs, record out, auxiliary inputs, aur network audio inputs included hain. -
Built-in Diagnostics & Redundancy
Real-time error detection across power supply, amplifiers, aur speakers. Redundant amplifier aur power switching se system ki safety barhti hai. -
Emergency Mode Shortcut
Ek red button se one-click emergency activation. Fire alarm broadcast aur visual indicators ko turant trigger karta hai. -
Broadcasting & Scheduling
Ek waqt mein 4 audio streams tak support karta hai. Timer-based broadcast scheduling aur 255 tak priority levels available hain. -
Audio File Storage
Built-in 1GB flash memory announcements aur playback files store karne ke liye. -
Monitoring & Control
Internal speaker ke zariye zone ya audio source monitoring. Remote supervision bhi network ke zariye mumkin hai.
Applications:
- Airports and Transit Terminals
- Hospitals and Universities
- Corporate Buildings
- Large Shopping Malls
- Industrial Complexes
- Emergency Control Centers
Specifications:
| Specification | Details |
| Brand | Honeywell |
| Model | X-DCS2000/EN |
| Functions | Zone control, multi-source input, monitoring, diagnostics, emergency mode |
| Audio Input Ports | 4 Network Audio + 4 Auxiliary Inputs + 4 Ambient Volume Control Inputs |
| Audio Output Ports | 8 Loudspeaker Line Outputs, Record Out |
| Contact Inputs/Outputs | 8 Dry-Contact Inputs / 8 Dry-Contact Outputs |
| Audio Sources Supported | CD/DVD, Cassette, FM Tuner, Internet Audio, PTT Microphone, NPMI Paging |
| Built-in Memory | 1GB Flash Memory |
| Volume Control | Automatic via HN-D32N Noise Detector |
| Network Connectivity | 4 Ethernet Ports (10M/100M adaptable) |
| Broadcasting Capability | 4 Simultaneous Audio Streams |
| Priority Levels | Supports up to 255 |
| Monitoring Speaker | Yes |
| Redundant Amplifier Support | Yes (1:1, 2:1, 3:1, 2:2 backup configurations) |
| Emergency Broadcast Button | Yes (Front Panel) |
| Control Software | X-SMART and X-618 Config Software |
| Safety Features | Built-in fuse, short-circuit detection, auto switch to backup power/amplifier |
| Weight | 12.5 kg |
| Packing | Each Unit Individually Box Packed |
Components:
Interfaces:
Certification and Standard:
Indicator Lights:
Ordering Information:
Technical Specifications:
