4 Pair U/UTP PVC 24 AWG CAT 6 Networking Cable (Grey)

4 Pair U/UTP PVC 24 AWG CAT 6 Networking Cable (Grey)

Sold by: MA Tech

Regular price PKR 53,472
Regular price Sale price PKR 53,472
Sale Sold out
Shipping calculated at checkout.

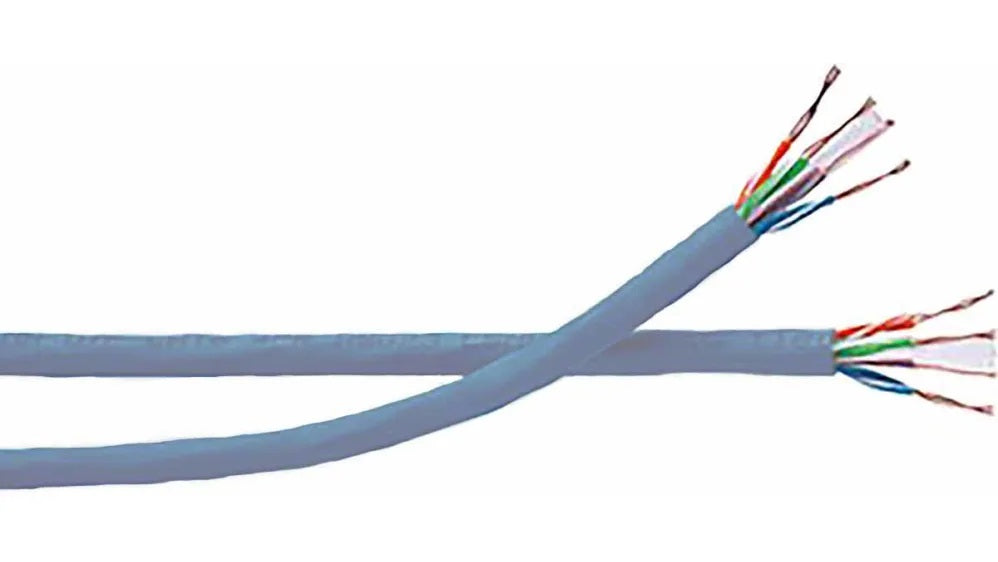

04 Pair U/UTP Category 6 PVC Sheath Networking Cable – 305m Coil (Grey)

Part #: 2410614 | 24AWG Solid Bare Copper | RoHS Compliant | High-Performance LAN Cable

📘 Product Description

The Pony Cables Cat6 U/UTP Networking Cable is designed for high-speed, high-integrity data transmission over long distances. Engineered with solid bare copper conductors, HDPE insulation, and a durable PVC outer sheath, it meets the stringent performance requirements of Category 6 for Gigabit Ethernet and beyond.

Each coil includes 305 meters of cable with color-coded twisted pairs, a plastic separator for enhanced crosstalk isolation, and a nylon rip cord for fast and easy stripping. Built to endure challenging environments, it passes cold bend tests at -20°C and maintains excellent tensile strength before and after aging.


📘 Product Description

Pony Cables Cat6 U/UTP Networking Cable high-speed aur high-integrity data transmission ke liye design ki gayi hai, jo lambi doori tak behtareen performance deti hai. Is mein solid bare copper conductors, HDPE insulation, aur mazboot PVC outer sheath use hui hai, jo Category 6 ke sakht performance standards ko poora karti hai — Gigabit Ethernet aur us se zyada ke liye munasib.

Har coil mein 305 meters cable hoti hai, jis mein rangon se code kiye hue twisted pairs hote hain, saath hi plastic separator hota hai jo crosstalk ko kam karta hai, aur nylon rip cord hota hai jo cable stripping ko asaan aur tezi se karta hai. Yeh cable mushkil mahaul mein bhi kaam karne ke liye banayi gayi hai, -20°C par cold bend tests pass karti hai, aur aging ke baad bhi apni tensile strength barkarar rakhti hai.


Key Features

  • Category: CAT6 U/UTP – Unshielded Twisted Pair
  • Conductor: 24AWG (0.50 mm), Solid Bare Copper
  • Insulation: High-Density Polyethylene (HDPE), 0.98 ± 0.03 mm
  • Outer Jacket: PVC Sheath (RoHS Compliant)
  • Cable Diameter: 6.0 ± 0.4 mm
  • Separator: Internal plastic cross separator for reduced crosstalk
  • Rip Cord: Integrated nylon rip cord for easier installation
  • Color Code: Blue, Orange, Green, Brown (with white stripe pairings)
  • Packaging: 305-meter coil (shrink-wrapped)
  • Weight: ~12.5 kg per coil

Key Features

  • Category: CAT6 U/UTP – Unshielded Twisted Pair
  • Conductor: 24AWG (0.50 mm), Solid Bare Copper
  • Insulation: High-Density Polyethylene (HDPE), 0.98 ± 0.03 mm
  • Outer Jacket: PVC Sheath (RoHS Compliant)
  • Cable Diameter: 6.0 ± 0.4 mm
  • Separator: Internal plastic cross separator jo crosstalk ko kam karta hai
  • Rip Cord: Integrated nylon rip cord jo installation ko asaan banata hai
  • Color Code: Blue, Orange, Green, Brown (white stripe pairings ke saath)
  • Packaging: 305-meter coil (shrink-wrapped)
  • Weight: Taqariban 12.5 kg har coil

⚙️ Construction Details

Component Specification
No. of Pairs 4 (8 conductors total)
Conductor Dia 0.50 mm
Insulation Dia 0.98 ± 0.03 mm
Shielding None (U/UTP)
Outer Diameter 6.0 ± 0.4 mm
Sheath Surface Clean, Frap, Satiation PVC

Electrical Specifications (20°C)

Parameter Value
Impedance 100 ± 15 Ω (1.0–250 MHz)
DC Resistance (Max) 9.38 Ω / 100m
Conductor Resistance Unbalance ≤ 5.0%
Delay Skew ≤ 45 ns / 100m

🎯 Applications

  • Local Area Networks (LAN)
  • IP Cameras & VoIP
  • Data Centers & Patch Panels
  • High-Speed Internet Distribution
  • CCTV & Telecommunication Cabling

Design

INSULATION CHROMATOGRAM

MAIN TRANSMISSION CHARACTERISTICS

🔧 Built for Performance. Engineered for Reliability.
PONY CABLES – The Ultimate Choice for Cabling Excellence


🔧 Performance ke liye Bana, Reliability ke liye Designed.
PONY CABLES – Cable banane ka Behtareen Intikhab.
