4 Pair U/UTP PVC 24 AWG CAT 6 Networking Cable (Green)

4 Pair U/UTP PVC 24 AWG CAT 6 Networking Cable (Green)

Sold by: MA Tech

Regular price PKR 53,472
Regular price Sale price PKR 53,472
Sale Sold out
Shipping calculated at checkout.

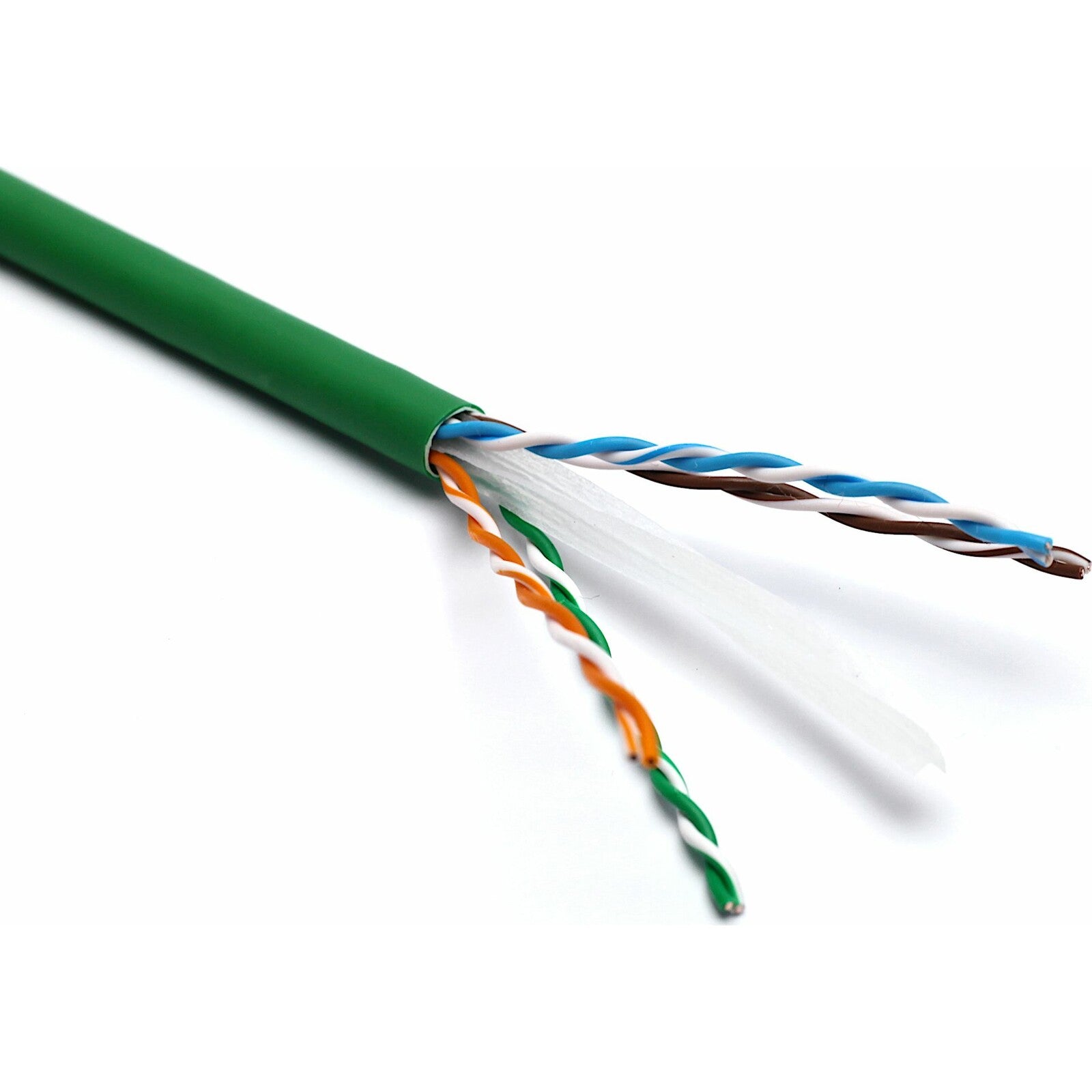

PONY CABLES – CAT6 U/UTP NETWORKING CABLE

Part #: 2410614
“The Ultimate Choice for High-Speed Networking”

📦 Product Overview:

Elevate your network infrastructure with Pony Cables’ 04 Pair U/UTP Category 6 Cable, crafted for superior performance, durability, and compliance with international standards. Designed with precision, this cable is ideal for high-speed data transmission, structured cabling, and future-proof networking environments.

🔑 Key Features:

Category 6 U/UTP (Unshielded Twisted Pair)
24 AWG Solid Bare Copper Conductors
HDPE (High-Density Polyethylene) Insulation
PVC Sheath – RoHS Compliant
Built-in Plastic Separator & Nylon Rip Cord for Easy Stripping
Color-coded Pairing for Quick Identification
Supplied in 305-meter Packaging
Cold Bend Test Passed – Crack-Free at -20°C


🛠️ Construction Details:

Component Specification
Conductor 8 x 0.50mm Solid Bare Copper
Insulation 0.98 ± 0.03mm HDPE
Shielding None (U/UTP)
Sheath O.D 6.0 ± 0.4mm PVC
Rip Cord Included for Quick Jacket Removal
Surface Smooth, Clean, Flexible, Non-Tacky


📐 Sheath Physical Properties:

Property Before Aging After Aging
Tensile Strength (MPa) ≥ 13.5 ≥ 12.5
Elongation (%) ≥ 150 ≥ 125
Cold Bend Test No Cracks @ -20°C


⚡ Electrical Characteristics (20°C):

Parameter Specification
Characteristic Impedance 100 ± 15 Ω
DC Resistance ≤ 9.38 Ω/100m
Resistance Unbalance ≤ 5.0%
Delay Skew ≤ 45 ns/100m


🎨 Color Coding (Chromatogram):

Pair Color 1 Color 2
1 White-Blue Blue
2 White-Orange Orange
3 White-Green Green
4 White-Brown Brown


📊 Main Transmission Characteristics:

📦 Packing Details:

Item Specification
Packaging Type Plastic-Wrapped Coil (Shrink Film)
Length per Coil 305 meters (1,000 feet)
Weight per Coil ~12.5 kg (±1 kg)


💡 Applications:

  • Local Area Networks (LAN)
  • Voice/Data transmission
  • IP Cameras
  • High-speed internet & telecom
  • Patch panels and keystone jacks

Design

🔰 Why Choose Pony Cables?

  • ✔️ Industry Certified
  • ✔️ RoHS Compliant Materials
  • ✔️ Long-Life Durability
  • ✔️ Consistent Signal Integrity
  • ✔️ Flexible & Easy to Install

📞 Pony Cables – Engineering Connectivity, Delivering Excellence.
