Security & Sound, 2 Conductor 16 AWG, BC, CMR (Mtr)
Security & Sound, 2 Conductor 16 AWG, BC, CMR (Mtr)
Sold by: MA Tech

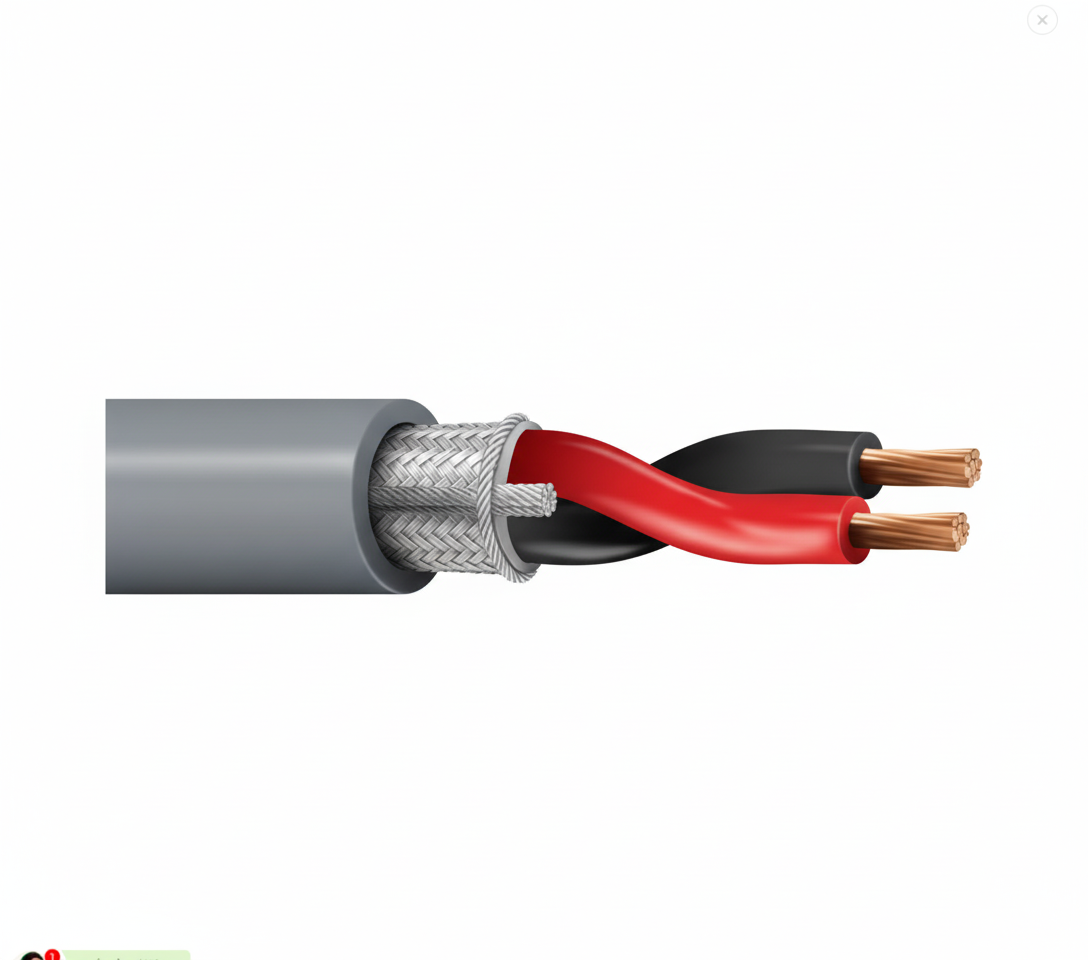

Belden 5200FE – Security & Sound Cable
2-Conductor, 16 AWG, Shielded, Riser Rated (CMR)
📄 Product Description
Belden 5200FE is a riser-rated (CMR) security and commercial audio cable designed for indoor applications such as security systems, intercoms, PA systems, and speaker connections — especially in noisy environments where shielding is essential.
Belden 5200FE aik riser-rated (CMR) security aur commercial audio cable hai jo indoor use ke liye design ki gayi hai, jaise ke security systems, intercoms, PA systems, aur speaker connections ke liye — khaas tor par un jagahon par jahan noise zyada hoti hai aur shielding zaroori hoti hai.
📊 Technical Specifications
| Parameter | Specification |
| Part Number | 5200FE |
| Application | Security, Intercom, PA, Audio/Speaker |
| Conductor Count | 2 |
| Conductor Size | 16 AWG (19x29) stranded bare copper |
| Insulation Material | Polypropylene (PP) |
| Insulation Colors | Black, Red |
| Shield Type | Beldfoil® (100% foil + 24 AWG TC drain wire) |
| Outer Jacket Material | PVC (with ripcord) |
| Jacket Diameter | 0.188 in |
| Voltage Rating | 300 V |
| Nom. Conductor DCR | 4 Ω/1000 ft |
| Shield DCR | 14.4 Ω/1000 ft |
| Capacitance (C-C) | 58 pF/ft |
| Capacitance (C-Shield) | 114 pF/ft |
| Max Current (25°C) | 6.25 A per conductor |
| Temperature Rating (Operating) | -20°C to +75°C |
| UL Rating | 75°C, UL1666 Vertical Shaft (CMR) |
| NEC Article | 800 (CMR) |
| CE Mark / RoHS / WEEE | Yes – Fully Compliant |
| China RoHS | Yes |
| Bulk Cable Weight | 24 lbs/1000 ft |
| Pull Tension (Max) | 85.5 lbs |
| Minimum Bend Radius | 2.0 in (stationary) / 1.9 in (installation) |
| Plenum Version | 6200FH |
✅ Key Features
- Low capacitance for clean audio signal transmission
- Shielded for noise immunity in high-interference environments
- CMR rated for riser use (vertical shafts between floors)
- Includes ripcord for easy jacket stripping
- RoHS II, CE, WEEE, China RoHS compliant
