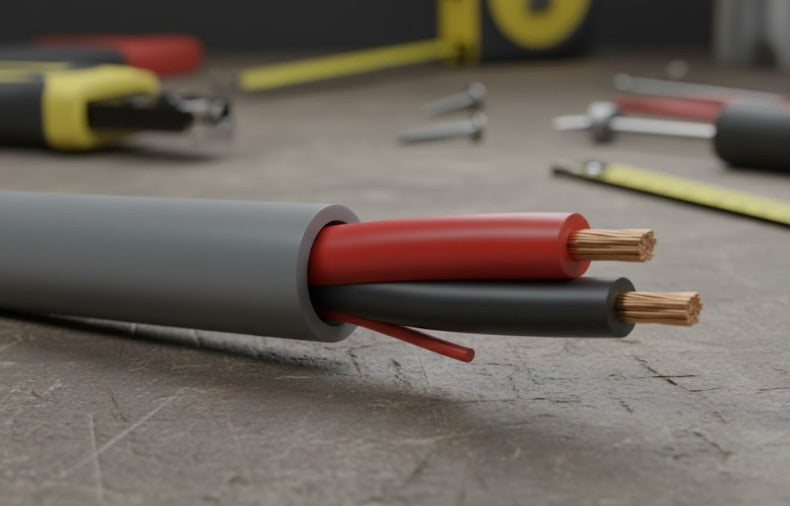

Belden 5300UE – Security & Sound Cable
2-Conductor, 18 AWG, Unshielded, Riser Rated (CMR)
📄 Product Description
Belden 5300UE is a CMR-rated (riser) unshielded cable designed for low-voltage security and audio applications in indoor environments. Its lightweight and compact design make it ideal for control circuits, alarm initiating circuits, and notification appliances in structured cabling systems.
Belden 5300UE aik CMR-rated (riser) unshielded cable hai jo low-voltage security aur audio applications ke liye indoor environments mein use hoti hai. Iska halka aur compact design isay control circuits, alarm initiating circuits, aur notification appliances ke liye munasib banata hai, khaas tor par structured cabling systems mein.
📊 Technical Specifications
| Parameter | Specification |
| Part Number | 5300UE |
| Application | Security systems, fire alarm, control wiring |
| Conductor Count | 2 |
| Conductor Size | 18 AWG (7x26) stranded bare copper |
| Insulation Material | Polypropylene (PP) |
| Insulation Colors | Black, Red |
| Shielding | ❌ None (Unshielded) |
| Outer Jacket Material | PVC (with ripcord) |
| Jacket Diameter (Nominal) | 0.158 in |
| Voltage Rating | 300 V |
| Nominal Conductor DCR | 6.5 Ω/1000 ft |
| Capacitance (C-C) | 21.5 pF/ft |
| Max Current @ 25°C | 5 A per conductor |
| Temperature Rating (UL) | 75°C |
| Operating Temp Range | -20°C to +75°C |
| Minimum Bend Radius | 1.5 in (stationary) / 1.6 in (installation) |
| Max Pulling Tension | 45 lbs |
| Cable Weight | 15 lbs/1000 ft |
✅ Key Features
- Unshielded design: Ideal for environments with minimal electrical noise
- Compact and flexible for tight installation spaces
- Riser-rated (CMR) for vertical shaft installations
- UL 1666 flame rating, RoHS & CE compliant
- Cost-effective solution for general-purpose security and audio wiring
