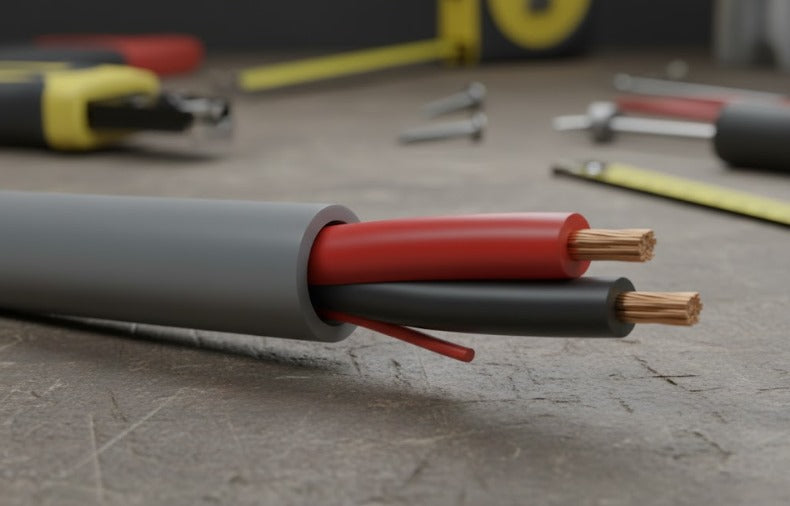

Security & Sound, 3 Conductor 18 AWG, BC, CMR (Mtr)
Security & Sound, 3 Conductor 18 AWG, BC, CMR (Mtr)
Sold by: MA Tech
Belden 5301UE – Security & Sound Cable
3-Conductor, 18 AWG, Unshielded, Riser Rated (CMR)
📄 Product Description
Belden 5301UE is a CMR-rated, unshielded low-voltage cable designed for addressable fire systems, alarm circuits, monitoring, and data/control applications in indoor riser installations. The third conductor makes it ideal for circuits requiring an additional signal or reference wire.
Belden 5301UE aik CMR-rated, unshielded low-voltage cable hai jo indoor riser installations mein addressable fire systems, alarm circuits, monitoring, aur data/control applications ke liye design ki gayi hai. Is cable ka teesra conductor usay un circuits ke liye behtareen banata hai jahan ek extra signal ya reference wire ki zarurat hoti hai.
📊 Technical Specifications
| Parameter | Specification |
| Part Number | 5301UE |
| Application | Fire alarm, detection, notification, data, control |
| Conductor Count | 3 |
| Conductor Size | 18 AWG (7x26) stranded bare copper |
| Insulation Material | Polypropylene (PP) |
| Insulation Colors | Black, Red, White |
| Shielding | ❌ None (Unshielded) |
| Outer Jacket Material | PVC (with ripcord) |
| Jacket Diameter (Nominal) | 0.167 in (4.24 mm) |
| Voltage Rating | 300 V |
| Nominal Conductor DCR | 6.5 Ω/1000 ft (21 Ω/km) |
| Capacitance (C-C) | 20.25 pF/ft (66.44 pF/m) |
| Max Current @ 25°C | 5 A per conductor |
| Temperature Rating (UL) | 75°C |
| Operating Temp Range | -20°C to +75°C |
| Minimum Bend Radius | 1.7 in (stationary & installation) |
| Max Pulling Tension | 67 lbs (30 kg) |
| Cable Weight | 22 lbs/1000 ft (33 kg/km) |
✅ Key Features
- 3-conductor format ideal for addressable fire alarms or systems requiring common return
- Unshielded design for use in environments with minimal EMI
- Riser-rated (CMR): UL1666 flame rating for vertical installations
- Meets UL, NEC, CE, and RoHS standards
