TC-C320N (AK/I3W/E/Y/2.8mm/V2.0) 2MP Color Maker Turret AK Series Fixed 2.8mm (New Arrival)

TC-C320N (AK/I3W/E/Y/2.8mm/V2.0) 2MP Color Maker Turret AK Series Fixed 2.8mm (New Arrival)

Sold by: MA Tech

Regular price PKR 9,781
Regular price Sale price PKR 9,781
Sale Sold out
Shipping calculated at checkout.

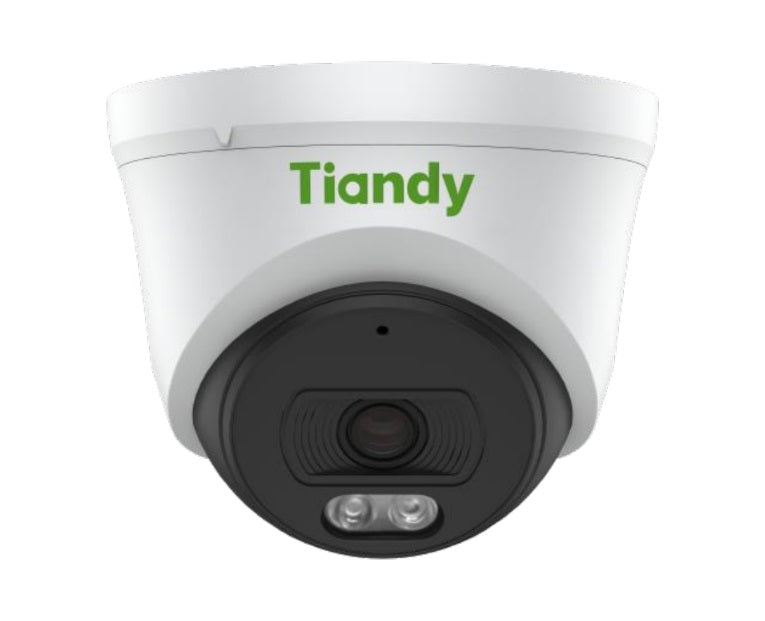

Tiandy TC-C320N (AK/I3W/E/Y/2.8mm/V2.0)


2MP Color Maker Turret AK Series Fixed 2.8mm – New Arrival


📦 Product Description

The Tiandy TC-C320N is a high-performance 2MP fixed turret camera from the AK Series, designed to deliver superior image quality and reliable performance in all lighting conditions. With a 2.8mm fixed lens, built-in microphone, and support for smart IR up to 30m, this compact yet powerful device is perfect for indoor and outdoor surveillance. Its robust metal + plastic housing, DWDR, and S+265 compression ensure long-lasting performance and efficient storage.


Tiandy TC-C320N aik high-performance 2MP fixed turret camera hai jo AK Series ka hissa hai, aur har tarah ki roshni mein behtareen image quality aur reliable performance faraham karta hai. Is camera mein 2.8mm ka fixed lens laga hai jo wide angle view provide karta hai, jabke built-in microphone audio recording ke liye mojood hai. Smart IR ki madad se yeh camera andheray mein bhi 30 meter tak clear surveillance deta hai.

Iska strong metal + plastic housing use outdoor aur indoor dono environments ke liye suitable banata hai. DWDR technology aur S+265 compression video ko clear aur smooth banaye rakhti hai, jabke storage aur bandwidth ko bhi efficient banata hai. Chhoti size ke bawajood, TC-C320N aik powerful aur durable security solution hai jo aapke surveillance system ko smart aur dependable banata hai.


Key Features

  • 2MP Resolution (1920×1080@30fps)
  • 2.8mm Fixed Lens with 114° Diagonal Field of View
  • Smart IR – IR Range up to 30m
  • S+265/H.265/H.264 Compression
  • POE Support (802.3af)
  • Built-in Microphone
  • Motion Detection
  • Metal + Plastic Housing
  • Weatherproof – IP-rated for -30℃ to 60℃ environments

📊 Specifications

Category Details
Image Sensor 1/3" CMOS
Resolution 1920x1080@30fps
Min. Illumination Color: 0.04Lux@F2.2, B/W: 0Lux with IR
Shutter Speed 1s to 1/100,000s
Day/Night IR-cut filter with auto switch (ICR)
WDR DWDR
S/N Ratio >37dB
Angle Adjustment Pan: 0–340°, Tilt: 0–75°, Rotate: 0–360°
Lens Type Fixed
Focal Length 2.8mm
Aperture F2.2
Field of View H: 100°, V: 53°, D: 114°
DORI Distance Detect: 40m, Observe: 15.9m, Recognize: 8m, Identify: 4m
IR LEDs 2 pcs
IR Range Up to 30m
Compression S+265, H.265, H.264B/M/H
Bit Rate 32Kbps–4Mbps
Audio Compression G.711A/G.711U
Built-in Mic Yes
BLC/HLC/3D DNR Yes
White Balance Auto/Semi-auto/Manual
Privacy Mask 4 Regions
Defog Yes
Alarm Motion Detection
Network Protocols HTTP, TCP/IP, UDP, DHCP, DNS, NTP, IPv4, Telnet, Unicast
ONVIF Profile S/T
Web Interface IE10+, Firefox, Edge, Safari, Chrome
Power Supply PoE 802.3af, Max 6W
Surge Protection 2000V; Lightning Protection: 6000V
Operating Temp. -30℃ ~ 60℃
Operating Humidity 0% ~ 95% RH
Dimensions 117(L) × 117(W) × 96(H) mm
Package Size 140(L) × 140(W) × 120(H) mm
Net Weight 0.24 kg
Gross Weight 0.34 kg

📐 Product Dimensions & Weight

  • Camera Dimensions: 117 x 117 x 96 mm
  • Packaging Dimensions: 140 x 140 x 120 mm
  • Net Weight: 0.24 kg
  • Gross Weight: 0.34 kg

DIMENSIONS (Unit: mm)


ACCESSORIES


Why Choose Tiandy TC-C320N?

  • 🔹 Innovative Color Maker Technology: Exceptional low-light performance.
    🔹 Smart IR & Built-in Mic: Enhanced night vision and audio capture.
    🔹 Reliable Build: Durable metal + plastic design suited for various environments.
    🔹 Easy Setup with POE: Simplified installation without additional power cables.
    🔹 Trusted Brand: Tiandy is a global leader in AI-based video surveillance solutions.
