TC-C320N (I3/E/Y/2.8mm/V2.0) 2MP Turret AK Series Fixed 2.8mm (New Arrival)
TC-C320N (I3/E/Y/2.8mm/V2.0) 2MP Turret AK Series Fixed 2.8mm (New Arrival)
Sold by: MA Tech

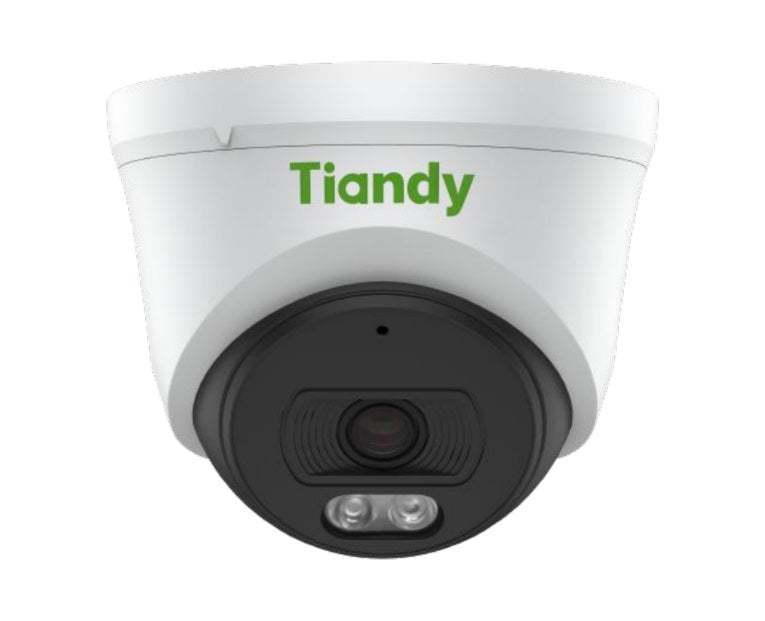

📷 Tiandy TC-C320N (I3/E/Y/2.8mm/V2.0)
2MP Fixed Turret Camera – AK Series (New Arrival)
📝 Product Description
The Tiandy TC-C320N is a 2MP fixed turret camera from the AK Series, combining advanced imaging, built-in audio, smart IR, and PoE support in a compact, durable design. It features high-efficiency S+265 compression, excellent low-light performance, and full compatibility with ONVIF protocols — making it ideal for small business, residential, and indoor/outdoor commercial surveillance.
Tiandy TC-C320N, AK Series ka aik 2MP fixed turret camera hai jo advanced imaging technology, built-in audio, smart IR aur PoE support ko aik compact aur durable design mein combine karta hai. Is camera mein high-efficiency S+265 compression shamil hai jo bandwidth aur storage dono ko optimize karta hai. Yeh kam roshni mein bhi behtareen performance deta hai aur ONVIF protocols ke saath full compatible hai, jis se yeh chhoti businesses, residential aur indoor/outdoor commercial surveillance ke liye bilkul munasib hai.
✅ Key Features
- ✅ 2MP Resolution (1920×1080 @ 30fps)
- ✅ 2.8mm Fixed Lens
- ✅ Smart IR with 30m IR Range
- ✅ S+265 / H.265 / H.264 Compression
- ✅ Built-in Microphone
- ✅ Motion Detection
- ✅ PoE (IEEE 802.3af) Support
- ✅ Metal + Plastic Housing
- ✅ Weather Resistant (IP67)
- ✅ Operating Temp: -30℃ ~ 60℃
📊 Technical Specifications
| Category | Details |
| Camera | |
| Image Sensor | 1/3" CMOS |
| Min. Illumination | Color: 0.04Lux @ F2.2 (AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s ~ 1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| WDR | DWDR |
| S/N Ratio | >37dB |
| Angle Adjustment | Pan: 0–340°, Tilt: 0–75°, Rotate: 0–360° |
| Lens | |
| Lens Type | Fixed |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture | F2.2 (Fixed) |
| Field of View (FOV) | H: 100°, V: 53°, D: 114° |
| DORI Distance | Detect: 40.0m, Observe: 15.9m, Recognize: 8.0m, Identify: 4.0m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | Up to 30m |
| IR Wavelength | 850nm |
| Video & Audio | |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate | 32Kbps ~ 4Mbps |
| Audio Compression | G.711A / G.711U |
| Audio Sampling Rate | 8kHz |
| Built-in Microphone | Yes |
| Image | |
| Max Resolution | 1920×1080 @ 30fps |
| Main Stream | PAL: 25fps / NTSC: 30fps (1080p/720p/VGA) |
| Sub Stream | PAL: 25fps / NTSC: 30fps (D1/QVGA/CIF) |
| BLC / HLC / AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto / Semi-auto / Manual |
| OSD | 1 region (16x16/32x32/48x48) |
| Privacy Mask | 4 regions |
| Defog | Yes |
| Network | |
| Protocols | HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, IPv4, Telnet, Unicast |
| ONVIF Compatibility | Profile S / T |
| Remote Connections | 1 |
| Web Access | IE10+, Firefox, Edge, Safari, Chrome |
| ANR | Not Supported |
| Interface | |
| Ethernet Port | 1 × RJ45 (10/100 Base-T) |
| General | |
| Housing Material | Metal + Plastic |
| Operating Temperature | -30℃ ~ +60℃ |
| Operating Humidity | ≤95% RH |
| Storage Conditions | -30℃ ~ +60℃, 0~95% RH (non-condensing) |
| Power Supply | PoE (IEEE 802.3af), Max. 6W |
| Protection Rating | IP67, Surge: 2000V, Lightning: 6000V |
| Language Support | English |
| Dimensions & Weight | |
| Boundary Dimensions | 117(L) × 117(W) × 96(H) mm |
| Package Dimensions | 140(L) × 140(W) × 120(H) mm |
| Gross Weight | 0.34 kg |
| Net Weight | 0.24 kg |
📐 Dimensions & Weight
- 📏 Camera Dimensions: 117 × 117 × 96 mm
- 📦 Package Dimensions: 140 × 140 × 120 mm
- ⚖️ Net Weight: 0.24 kg
- ⚖️ Gross Weight: 0.34 kg
🌟 Why Choose Tiandy TC-C320N?
🔹 Proven Performance – 2MP Full HD resolution with wide field of view for detailed surveillance.
🔹 Efficient Compression – Save storage and bandwidth with advanced S+265 encoding.
🔹 Built-in Audio – Capture both video and sound with integrated mic.
🔹 Durability – Withstands tough environments with IP67, surge, and lightning protection.
🔹 Smart Monitoring – Supports motion detection and smart IR up to 30 meters.
🔹 PoE Convenience – Single-cable solution for power and data.
🔹 Tiandy Quality – Backed by one of the global leaders in intelligent surveillance solutions.
