TC-C321N (AK/I3W/E/Y/2.8mm/V2.0) 2MP Color Maker Bullet AK Series Fixed 2.8mm IP67 (New Arrival)
TC-C321N (AK/I3W/E/Y/2.8mm/V2.0) 2MP Color Maker Bullet AK Series Fixed 2.8mm IP67 (New Arrival)
Sold by: MA Tech

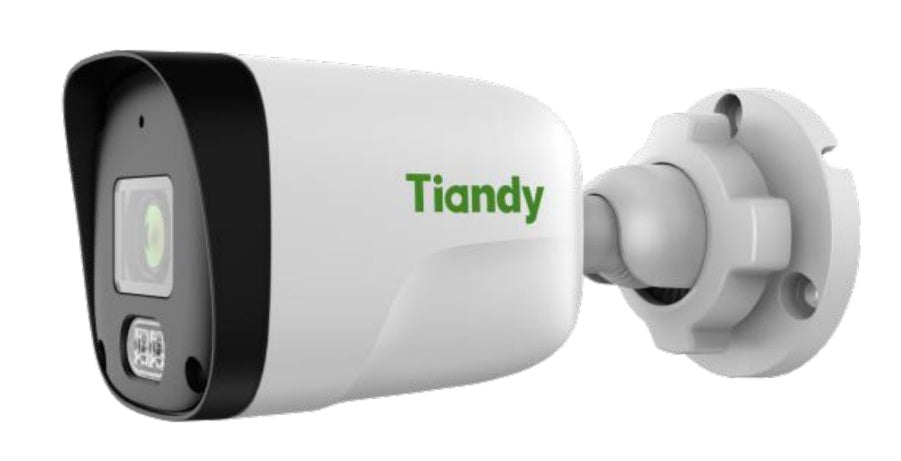

📷 Tiandy TC-C321N (I3/E/Y/2.8mm/V2.0)
2MP Fixed Bullet Camera – AK Series
📝 Product Description
The TC-C321N from Tiandy’s AK Series is a compact and reliable 2MP fixed bullet camera designed for high-efficiency video surveillance. With advanced S+265/H.265 compression, a built-in microphone, IP67 weatherproof protection, and Power over Ethernet (PoE), it is ideal for both indoor and outdoor environments. Whether for residential, commercial, or industrial security, the TC-C321N delivers exceptional image clarity and performance.
Tiandy AK Series ka TC-C321N aik compact aur reliable 2MP fixed bullet camera hai jo high-efficiency video surveillance ke liye design kiya gaya hai. Is camera mein advanced S+265 aur H.265 video compression technology shamil hai, jo video quality ko maintain karte hue storage aur bandwidth ko kam karta hai. Built-in microphone audio recording ke liye available hai, jabke IP67 weatherproof rating isay har tarah ke mausam mein outdoor ya indoor use ke liye perfect banati hai.
Power over Ethernet (PoE) ki sahulat ke zariye yeh camera asani se install ho jata hai aur alag power supply ki zarurat nahi hoti. TC-C321N residential, commercial, ya industrial security applications ke liye ek behtareen choice hai, jo aapko high image clarity aur reliable performance provide karta hai – har waqt, har jagah.
✅ Key Features
- ✅ 2MP Resolution (1920×1080 @ 30fps)
- ✅ 2.8mm Fixed Lens
- ✅ Smart IR – 30m IR Range
- ✅ S+265 / H.265 / H.264 Video Compression
- ✅ Built-in Microphone
- ✅ POE Support (IEEE 802.3af)
- ✅ Motion Detection
- ✅ Plastic Housing – Lightweight & Durable
- ✅ Weatherproof IP67 Rating
- ✅ Operating Temp: -30℃ ~ 60℃
📊 Technical Specifications
| Category | Details |
| Camera | |
| Image Sensor | 1/3" CMOS |
| Min. Illumination | Color: 0.04Lux@F2.2, B/W: 0Lux with IR |
| Shutter Time | 1s ~ 1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| WDR | DWDR |
| S/N Ratio | >37dB |
| Angle Adjustment | Pan: 0–360°, Tilt: 0–80°, Rotate: 0–360° |
| Lens | |
| Lens Type | Fixed |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F2.2 (Fixed) |
| Field of View (FOV) | H: 94.4°, V: 53.2°, D: 108.2° |
| DORI Distance | Detect: 40m, Observe: 15.9m, Recognize: 8m, Identify: 4m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | Up to 30m |
| Wavelength | 850nm |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate | 32Kbps ~ 4Mbps |
| Audio | |
| Audio Compression | G.711A / G.711U |
| Audio Sampling Rate | 8kHz |
| Built-in Microphone | Yes |
| Image | |
| Max Resolution | 1920×1080 @ 30fps |
| Main Stream | PAL: 25fps, NTSC: 30fps |
| Sub Stream | PAL/NTSC: 25/30fps |
| BLC / HLC / AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto / Semi-auto / Manual |
| Privacy Mask | 4 Regions |
| Defog | Yes |
| Network | |
| Protocols | HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, IPv4, Telnet, Unicast |
| ONVIF Support | Profile S / T |
| Web Interface | IE10+, Firefox, Edge, Safari, Chrome |
| Remote Connection | 1 |
| Interface | |
| Ethernet Port | 1 × RJ45 (10/100M) |
| General | |
| Housing Material | Plastic |
| Operating Temperature | -30℃ ~ 60℃ |
| Operating Humidity | 0 ~ 95% RH (non-condensing) |
| Storage Temperature | -30℃ ~ 60℃ |
| Storage Humidity | 0 ~ 95% RH (non-condensing) |
| Power Supply | POE (IEEE 802.3af), Max. 3W |
| Protection | Surge: 2000V, Lightning: 6000V, IP67 |
| Web Client Language | English |
| Dimensions & Weight | |
| Boundary Dimensions | 140(L) × 60(W) × 60(H) mm |
| Package Dimensions | 155(L) × 75(W) × 85(H) mm |
| Gross Weight | 0.2 kg |
| Net Weight | 0.15 kg |
📐 Dimensions & Weight
- 📏 Camera Size: 140 × 60 × 60 mm
- 📦 Package Size: 155 × 75 × 85 mm
- ⚖️ Net Weight: 0.15 kg
- ⚖️ Gross Weight: 0.2 kg
🌟 Why Choose Tiandy TC-C321N?
- 🔹 Compact Yet Capable: Lightweight and durable design, perfect for versatile mounting.
🔹 Efficient Compression: Save storage space with S+265 high-efficiency video encoding.
🔹 Audio Monitoring: Built-in mic allows synchronized video and audio.
🔹 Ready for All Conditions: IP67 rating ensures performance in rain, dust, or heat.
🔹 Plug & Play POE: Simplified installation with one cable for power and data.
🔹 Reliable Security: Backed by Tiandy’s world-class R&D and manufacturing.
