TC-C321N (I3/E/Y/2.8mm/V2.0) 2MP Bullet AK Series Fixed 2.8mm IP67 (New Arrival)
TC-C321N (I3/E/Y/2.8mm/V2.0) 2MP Bullet AK Series Fixed 2.8mm IP67 (New Arrival)
Sold by: MA Tech

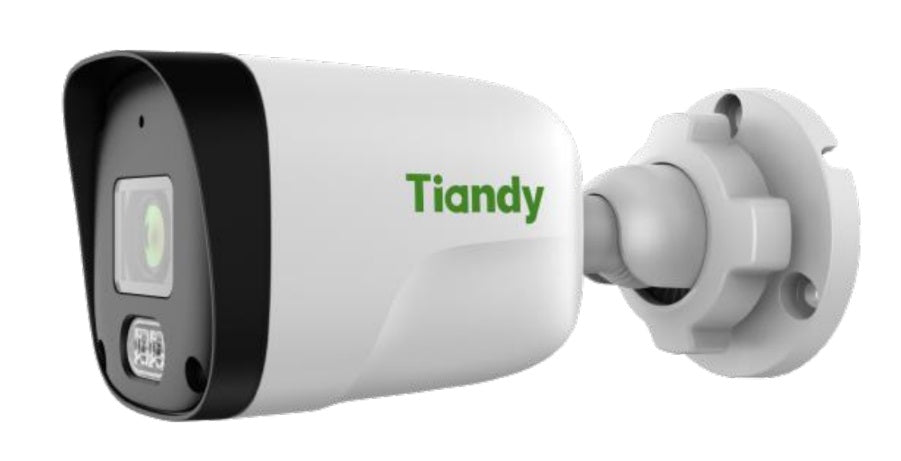

📷 Tiandy TC-C321N (I3/E/Y/2.8mm/V2.0)
2MP Fixed Bullet Camera | AK Series
🔑 Key Features
- 2MP Full HD (1920×1080@30fps) Resolution
- Plastic Housing – lightweight & durable
- S+265 / H.265 / H.264 Compression – saves bandwidth & storage
- Min. Illumination: 0.04Lux@F2.2 (Color), 0Lux (B/W with IR)
- Smart IR Range: up to 30m
- Built-in Microphone
- IP67 Weatherproof – perfect for outdoor installations
- PoE (802.3af) for easy installation
- Supports Motion Detection
- Operating Temperature: -30°C ~ +60°C
Yeh camera 2MP Full HD resolution (1920×1080@30fps) provide karta hai aur iska plastic housing lightweight aur durable hai. Ismein S+265, H.265, aur H.264 compression technology mojood hai jo bandwidth aur storage bachati hai. Iski minimum illumination 0.04Lux@F2.2 (color mode) aur 0Lux (black & white with IR) hai. Smart IR ki range takriban 30 meter tak hai jo andheray mein bhi wazeh tasveerain deta hai. Camera ke andar built-in microphone laga hua hai aur IP67 weatherproof rating ki wajah se yeh outdoor installations ke liye bilkul munasib hai. Is mein Power over Ethernet (PoE) support bhi hai jo installation ko asaan banata hai. Yeh motion detection ko bhi support karta hai aur iska operating temperature range -30°C se +60°C tak hai, jis se yeh sakht mosamati halaat mein bhi behtareen kaam karta hai.
📊 Detailed Specifications
📷 Camera | |
Parameter
|
Specification |
Image Sensor | 1/3" CMOS |
Min. Illumination | Color: 0.04Lux @ F2.2 (AGC ON), B/W: 0Lux with IR |
Shutter Time | 1s – 1/100,000s |
Day/Night | IR-cut filter with auto switch (ICR) |
WDR | DWDR |
S/N Ratio | >37dB |
Angle Adjustment | Pan: 0–360°, Tilt: 0–80°, Rotation: 0–360° |
🔍 Lens & Viewing | |
Parameter
|
Specification |
Lens Type | Fixed |
Focal Length | 2.8mm |
Aperture | F2.2, Fixed |
Mount Type | M12 |
Field of View | H: 94.4°, V: 53.2°, D: 108.2° |
🔭 DORI Distance | |
Detection Level
|
Distance |
Detect | 40.0 m |
Observe | 15.9 m |
Recognize | 8.0 m |
Identify | 4.0 m |
🌙 Illumination | |
Parameter
|
Specification |
IR LEDs | 2 pcs |
IR Distance | 30 meters |
IR Wavelength | 850nm |
🎥 Video & Audio | |
Parameter
|
Specification |
Video Compression | S+265 / H.265 / H.264 (B/M/H) |
Bitrate | 32Kbps ~ 4Mbps |
Audio Compression | G.711A / G.711U |
Audio Sampling Rate | 8kHz |
Built-in Mic | Yes |
🖼️ Image Settings | |
Feature
|
Supported |
Max. Resolution | 1920×1080 @ 30fps |
Main Stream | PAL: 25fps / NTSC: 30fps |
Sub Stream | PAL & NTSC resolutions supported |
BLC / HLC / AGC | Yes |
3D DNR | Yes |
White Balance | Auto / Semi-auto / Manual |
OSD Regions | 1 region (16×16 / 32×32 / 48×48) |
Privacy Mask | 4 regions |
Defog | Yes |
🌐 Network | |
Parameter
|
Specification |
Protocols | HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, IPv4, Telnet, Unicast |
Compatibility | ONVIF Profile S / T |
Remote Connections | 1 |
Mobile Client | Not supported |
Web Browser Support | IE10+, Chrome, Firefox, Safari, Edge |
🔌 Interfaces | |
Parameter
|
Specification |
Network Port | 1 × RJ45 (10/100 Mbps Ethernet) |
Audio | Built-in Mic |
⚙️ General | |
Parameter
|
Specification |
Web Interface Language | English |
Operating Temp | -30°C ~ +60°C |
Operating Humidity | 0–95% RH (non-condensing) |
Storage Temp | -30°C ~ +60°C |
Storage Humidity | 0–95% RH (non-condensing) |
Power Supply | PoE (802.3af), Max. 3W |
Protection | IP67, Surge: 2000V, Lightning: 6000V |
📏 Dimensions & Weight | |
Parameter
|
Specification |
Boundary Dimensions | 140 × 60 × 60 mm |
Package Dimensions | 155 × 75 × 85 mm |
Net Weight | 0.15 kg |
Gross Weight | 0.20 kg |
DIMENSIONS (Unit: mm)
ACCESSORIES
💡 Why Choose Tiandy TC-C321N?
- ✅ Uncompromised Performance
Capture crisp, clear images with 2MP resolution and advanced image enhancement features. - ✅ Reliable Day/Night Surveillance
Smart IR ensures balanced night vision up to 30 meters without overexposure. - ✅ Seamless Installation
With PoE, installation is simplified — no need for separate power cables. - ✅ Rugged Design, Built to Last
IP67 weatherproofing and 6000V lightning protection ensure the camera withstands harsh outdoor conditions. - ✅ Audio Monitoring Built-In
The integrated microphone enhances situational awareness. - ✅ Cost-Effective without Compromise
Ideal for home, office, retail, warehouse, and SMB security setups. - ✅ Global Brand Trust
Backed by Tiandy Technologies Co., Ltd., a global leader in intelligent surveillance solutions.
