TC-C321N (I3/E/Y/4mm/V2.0) 2MP Bullet AK Series Fixed 4mm IP67 (New Arrival)
TC-C321N (I3/E/Y/4mm/V2.0) 2MP Bullet AK Series Fixed 4mm IP67 (New Arrival)
Sold by: MA Tech

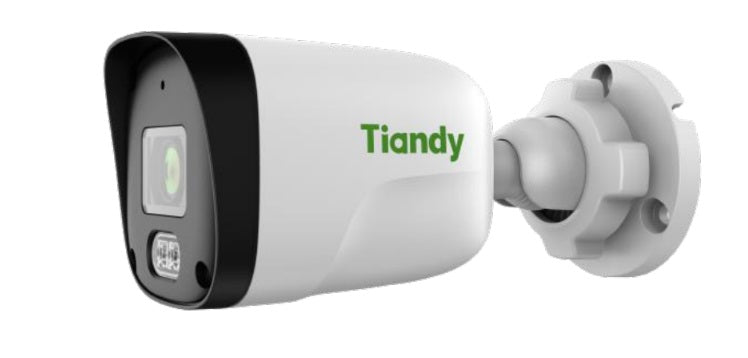

📷 Tiandy TC-C321N (I3/E/Y/2.8mm/V2.0)
2MP Fixed Bullet Camera – AK Series
📝 Product Overview
The TC-C321N is a compact, full HD bullet camera from Tiandy’s AK Series, offering excellent day/night performance, audio support, IP67 weatherproof protection, and Power-over-Ethernet (PoE) convenience. With smart IR, a 2.8mm wide-angle lens, and S+265 compression, it's optimized for reliable performance in various environments.
TC-C321N, Tiandy ke AK Series ka aik compact full HD bullet camera hai jo din aur raat dono mein behtareen performance deta hai. Is mein audio support, IP67 weatherproof protection, aur Power-over-Ethernet (PoE) ki sahulat mojood hai. Smart IR, 2.8mm wide-angle lens, aur S+265 compression ki wajah se yeh mukhtalif mahaul mein reliable aur behtareen surveillance ke liye optimize kiya gaya hai.
✅ Key Features
- 🔹 2MP Full HD Resolution (1920×1080 @ 30fps)
- 🔹 2.8mm Fixed Lens (94.4° HFOV)
- 🔹 Smart IR with 30m Range
- 🔹 Advanced Compression: S+265 / H.265 / H.264
- 🔹 Built-in Microphone for Audio Monitoring
- 🔹 Motion Detection
- 🔹 PoE Support (802.3af)
- 🔹 Plastic Housing, IP67 Rated for Outdoor Use
- 🔹 Operating Temp: -30℃ ~ +60℃
📊 Technical Specifications
Category | Details |
Camera | |
Image Sensor | 1/3" CMOS |
Min. Illumination | Color: 0.04Lux @ F2.2 (AGC ON), B/W: 0Lux with IR |
Shutter Time | 1s ~ 1/100000s |
Day & Night | IR-cut filter with auto switch (ICR) |
WDR | DWDR |
S/N Ratio | >37dB |
Angle Adjustment | Pan: 0–360°, Tilt: 0–80°, Rotate: 0–360° |
Lens | |
Lens Type | Fixed |
Focal Length | 2.8mm |
Lens Mount | M12 |
Aperture | F2.2 (Fixed) |
Field of View (FOV) | H: 94.4°, V: 53.2°, D: 108.2° |
DORI Distance | Detect: 40m, Observe: 15.9m, Recognize: 8.0m, Identify: 4.0m |
Illuminator | |
IR LEDs | 2 |
IR Distance | Up to 30m |
Wavelength | 850nm |
Video & Audio | |
Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
Video Bit Rate | 32Kbps ~ 4Mbps |
Audio Compression | G.711A / G.711U |
Audio Sampling Rate | 8kHz |
Built-in Microphone | Yes |
Image Settings | |
Max Resolution | 1920×1080 @ 30fps |
Main Stream | PAL: 25fps / NTSC: 30fps |
Sub Stream | PAL: 25fps / NTSC: 30fps |
BLC / HLC / AGC | Yes |
3D DNR | Yes |
White Balance | Auto / Semi-auto / Manual |
OSD | 1 region (16×16 / 32×32 / 48×48) |
Privacy Mask | 4 regions |
Defog | Yes |
Network | |
Protocols | HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, IPv4, Telnet, Unicast |
ONVIF Compatibility | Profile S / T |
Remote Connections | 1 |
Web Access | IE10+, Firefox, Chrome, Safari, Edge |
ANR | Not Supported |
Mobile App | Not Supported |
Interface | |
Network Port | 1 × RJ45 (10/100 Base-T) |
General | |
Housing Material | Plastic |
Operating Temperature | -30℃ ~ +60℃ |
Operating Humidity | ≤95% RH (non-condensing) |
Storage Conditions | -30℃ ~ +60℃ |
Power Supply | PoE (IEEE 802.3af), Max. 3W |
Protection Rating | IP67, Surge: 2000V, Lightning: 6000V |
Language Support | English |
Dimensions & Weight | |
Boundary Dimensions | 140 × 60 × 60 mm |
Package Dimensions | 155 × 75 × 85 mm |
Net Weight | 0.15 kg |
Gross Weight | 0.20 kg |
📐 Dimensions (Unit: mm)
- Camera Body: 140 × 60 × 60 mm
- Packaging: 155 × 75 × 85 mm
- Net Weight: 0.15 kg
- Gross Weight: 0.20 kg
DIMENSIONS (Unit: mm)
ACCESSORIES
🌟 Why Choose Tiandy TC-C321N?
- 🔸 Reliable Surveillance – High-definition 2MP resolution and wide coverage with a 2.8mm lens.
🔸 Space-Efficient Design – Slim bullet profile ideal for corners, entrances, and corridors.
🔸 PoE & Weatherproof – Simplified installation and durability with IP67 protection.
🔸 Audio Enabled – Built-in mic allows real-time audio monitoring.
🔸 Smart IR – 30m IR range adapts automatically to prevent overexposure at night.
🔸 Secure & Compatible – ONVIF Profile S/T ensures broad NVR and VMS integration.
🔸 Affordability Meets Performance – An ideal solution for SMEs, residential, and retail deployments.
