TC-C32HS Spec:I3/E/Y/C/SD/2.8mm/V4.2 Tiandy Superlite Lite Star Turret 2MP Fixed 2.8mm IP66 PoE with DC Cable
TC-C32HS Spec:I3/E/Y/C/SD/2.8mm/V4.2 Tiandy Superlite Lite Star Turret 2MP Fixed 2.8mm IP66 PoE with DC Cable
Sold by: MA Tech

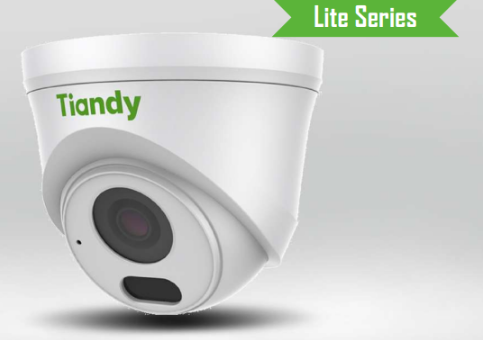

Tiandy TC-C32HS (I3/E/Y/C/SD/2.8mm/V4.2)
2MP Fixed Starlight IR Turret Camera | Lite Series
✅ Key Features
- 2MP Resolution: 1920×1080 @ 30fps
- Ultra-Low Light: 0.002Lux @ F1.6 (Color), 0 Lux with IR (B/W)
- Smart IR: Range up to 30m
- Built-in Microphone
- Video Compression: S+265 / H.265 / H.264
- Video Analytics: Tripwire & Perimeter Detection
- Weatherproof Design (IP66)
- PoE (802.3af)
- Operating Range: -30°C to +60°C, 0~95% RH
- MicroSD Slot: Up to 512GB onboard storage
📸 Camera Specs
Image Sensor | 1/2.8" CMOS |
Signal System | PAL / NTSC |
Min. Illumination | Color: 0.002Lux @ F1.6 (AGC ON) |
B/W: 0 Lux with IR | |
Shutter Speed | 1s to 1/100,000s |
Day/Night Mode | Dual IR-Cut Filter (ICR) |
Wide Dynamic Range | 120dB (True WDR) |
Angle Adjustment | Pan: 0–340° |
🔍 Lens Details
Lens Type | Fixed |
Focal Length | 2.8mm |
Aperture | F1.6 |
Mount Type | M12 |
Field of View | H: 99.7° |
💡 Illumination
IR LEDs | 1 × Smart IR |
IR Range | Up to 30m |
Wavelength | 850nm |
White LEDs | N/A |
🎞️ Video Compression & Audio
Video Compression | S+265 / H.265 / H.264 |
Bit Rate | 32Kbps ~ 6Mbps |
Audio Compression | G.711 / G.711U / ADPCM |
Audio Bit Rate | 8K ~ 48Kbps |
🖼️ Image Settings & Quality
- Adjustable: Brightness, Contrast, Saturation, Sharpness
- Enhancements: BLC / HLC / 3D DNR / Smart Defog
- Privacy Masking: 4 Zones
- OSD: Date, Time, Week – 3 configurable regions
- ROI: 8 fixed encoding regions
- Picture Overlay: Not supported
📡 Streaming & Resolution
Max Resolution | 1920 × 1080 |
Main Stream | PAL: 25fps @ 1080p / 720p / D1 |
NTSC: 30fps @ 1080p / 720p / D1 | |
Sub Stream | PAL: 704x576 / 704x288 / 640x360 / 352x288 |
NTSC: 704x480 / 704x240 / 640x360 / 352x240 | |
Third Stream | Not available |
🧠 Smart Functions
Alarm Triggers | Motion Detection, Mask Alarm, IP Conflict |
Video Analytics | Tripwire, Perimeter Detection |
Early Warning | Not supported |
🌐 Network & Integration
Protocols | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, IPv4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP |
ONVIF Compatibility | Profiles S / T / G |
Other Support | SDK, CGI, P2P (excludes Profile G), Easy DDNS |
ANR Support | Yes (with Tiandy NVR) |
Remote Connections | Up to 7 users |
Client Software | Easy7 (PC), EasyLive Plus (Mobile) |
Web Access | Web6 (IE, Chrome, Firefox, Safari, Edge) |
🔌 Interfaces
Ethernet | 1 × RJ45 (10/100 Mbps) |
Audio Input | Built-in Microphone |
Alarm I/O | Not available |
Reset Button | Not available |
Storage | MicroSD Slot (up to 512GB) |
🌦️ Environmental & Power
Operating Temp. | -30°C ~ +60°C |
Humidity | 0 ~ 95% RH |
Power Supply | PoE (802.3af) |
Power Consumption | Max. 8W |
Protection | IP66 |
Heater | Not included |

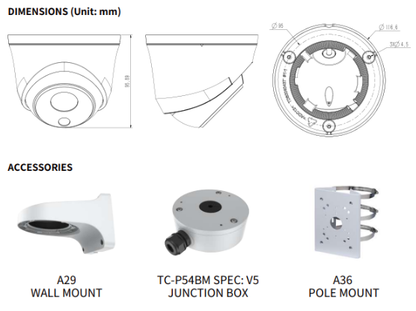

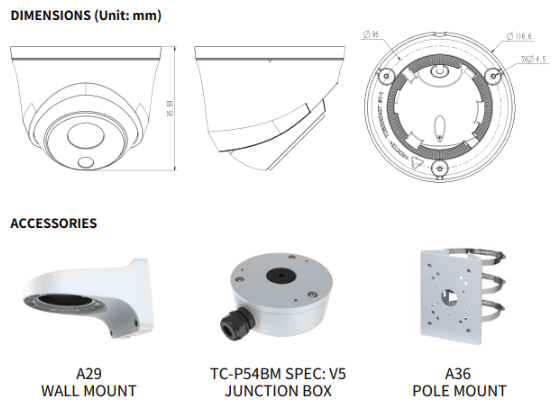

📐 Mechanical
Dimensions | 117 × 117 × 96 mm |
Net Weight | 0.3 kg (0.66 lb) |
Housing | Metal + Plastic |
🌍 Language Support
Supports 17 languages including:
English, Russian, Spanish, Korean, Italian, Turkish, Simplified Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebrew, Arabic, Vietnamese, German, Ukrainian
📦 Model Availability
TC-C32HS SPEC: I3/E/Y/C/SD/2.8MM/V4.2
🛠️ Mounting Accessories
Wall Mount | A29 |
Junction Box | TC-P54BM (Spec: V5) |
Pole Mount | A36 |
