TC-C32KN Spec:I3/A/E/Y/2.8-12mm/V4.2 Tiandy Superlite Dome 2MP Motorized Lense 2.8-12mm
TC-C32KN Spec:I3/A/E/Y/2.8-12mm/V4.2 Tiandy Superlite Dome 2MP Motorized Lense 2.8-12mm
Sold by: MA Tech

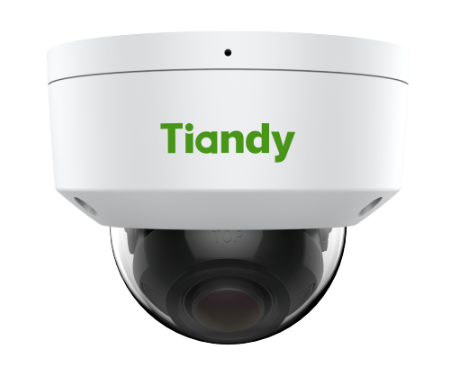

📷 Tiandy TC-C32KN – 2MP Motorized IR Dome Camera
Model: TC-C32KN Spec: I3/A/E/Y/2.8-12mm/V4.2
Series: SuperLite Series
Description:
The TC-C32KN is a cost-effective yet high-performance 2MP motorized dome camera with plastic housing, 30m IR range, and a varifocal 2.8–12mm lens. Designed for general indoor/outdoor use, it offers flexible viewing angles, IP66 protection, advanced image features, and local storage support up to 512GB. It includes built-in audio, smart IR, and supports ONVIF protocols for integration into third-party systems.
TC-C32KN aik cost-effective magar high-performance 2MP motorized dome camera hai jo indoor aur outdoor dono environments ke liye design kiya gaya hai. Iska plastic housing durable hai, aur IP66 rating ke saath yeh camera dust aur paani se bachao deta hai.
Is camera mein 2.8–12mm varifocal lens diya gaya hai jo flexible viewing angles aur zoom/focus control ki sahulat deta hai. 30 meter tak ki Smart IR range ke zariye low-light ya andhera mein bhi clear video recording hoti hai.
Built-in microphone ki wajah se audio bhi record ki ja sakti hai, jabke advanced image features aur local storage support up to 512GB ise aur bhi reliable banate hain. Camera ONVIF protocols ko support karta hai, isliye ise third-party surveillance systems mein asaani se integrate kiya ja sakta hai.
Yeh camera un logon ke liye behtareen hai jo aik affordable aur smart security solution talash kar rahe hain.
📋 Specifications Table
Category | Specification |
Model | TC-C32KN Spec: I3/A/E/Y/2.8-12mm/V4.2 |
Series | SuperLite Series |
Housing | Plastic |
Image Sensor | 1/2.8" CMOS |
Min. Illumination | Color: 0.02Lux @ (F1.6, AGC ON), B/W: 0Lux with IR |
Shutter Time | 1s ~ 1/100,000s |
Day & Night | IR-cut filter with auto switch (ICR) |
Smart IR | Yes |
WDR | DWDR |
S/N Ratio | >39dB |
Angle Adjustment | Pan: 0350°, Tilt: 070°, Rotate: 0~350° |
Lens Type | Motorized |
Focal Length | 2.8 ~ 12mm |
Lens Mount | Φ14 |
Aperture | F1.6 (Fixed) |
Field of View | H: 105.6°~29°, V: 58.8°~16.6°, D: 120.9°~33.4° |
DORI Distance (Wide) | Detect: 38.6m, Observe: 15.3m, Recognize: 7.7m, Identify: 3.8m |
DORI Distance (Tele) | Detect: 165.5m, Observe: 65.6m, Recognize: 33.1m, Identify: 16.5m |
IR LEDs | 4 |
IR Distance | Up to 30m |
IR Wavelength | 850nm |
Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
Video Bitrate | 32Kbps ~ 4Mbps |
Audio Compression | G.711A / G.711U |
Audio Sampling Rate | 8kHz |
Max. Resolution | 1920 × 1080 (2MP) |
Main Stream (PAL) | 25fps @ 1920×1080, 1280×720, 640×480, 704×576 |
Main Stream (NTSC) | 30fps @ 1920×1080, 1280×720, 640×480, 704×480 |
Sub Stream (PAL) | 25fps @ 704×576, 704×288, 640×360, 352×288 |
Sub Stream (NTSC) | 30fps @ 704×480, 704×240, 640×360, 352×240 |
BLC / HLC / AGC | Yes |
3D DNR | Yes |
White Balance Modes | Auto, Semi-Auto, Manual, Multiple Presets |
ROI | 8 static rectangular areas |
OSD | 1 region, 1 line, up to 48 characters or 16 Chinese characters; sizes: 16/32/48 |
Privacy Mask | 4 black static areas |
Defog | Yes |
Alarms (General) | Motion Detection, Mask Alarm |
Exceptions | Disk Full, Disk R/W Error, IP Conflict |
Linkage Actions | Trigger Recording, Capture, Notify Surveillance Center, Alarm Output |
ANR Support | Yes |
Protocols | HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, TLS v1.2, FTP, SSH, IPv4 |
System Compatibility | ONVIF (Profile S/T/G), SDK, CGI, P2P (exclusive with Profile G), RTSP, Milestone |
Remote Connections | ≤2 users |
Client Software | Easy7 VMS, EasyLive Plus |
Web Browsers | IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+ |
Network Interface | 1 × RJ-45 (10/100 Mbps) |
Built-in Mic | Yes |
Reset Button | Yes (Built-in) |
SD Card Support | microSD / microSDHC / microSDXC, up to 512GB |
RTC (Real Time Clock) | Yes |
Languages (Web UI) | 19 languages incl. English, Chinese, Arabic, Russian, Spanish, etc. |
Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
Operating Humidity | ≤95% RH (non-condensing) |
Storage Temperature | -30°C ~ 60°C |
Storage Humidity | 10% ~ 95% RH (non-condensing) |
Power Supply | DC12V ±25%, Max. 6.5W; PoE IEEE 802.3af, Max. 7W |
Protection | IP66, Surge: 4000V, ESD: 6000V |

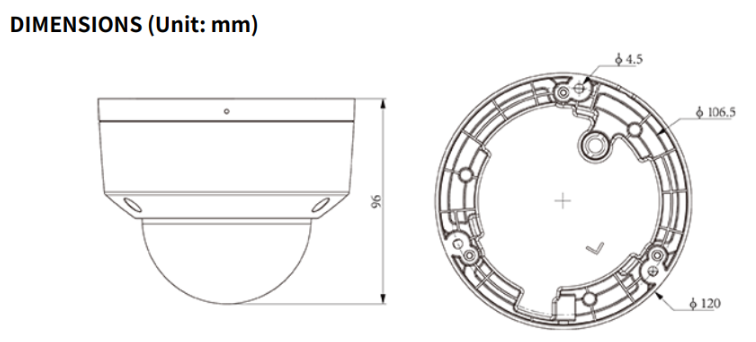

Dimensions (L×W×H) | 120 × 120 × 96 mm |
Package Dimensions | 140 × 140 × 120 mm |
Gross Weight | 0.5 kg |
