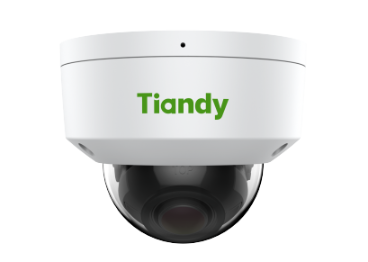

TC-C32KN Spec:I3/E/Y/C/SD/2.8mm/V4.3 Tiandy Spark, Spark-17 Dome Camera

TC-C32KN Spec:I3/E/Y/C/SD/2.8mm/V4.3 Tiandy Spark, Spark-17 Dome Camera

Sold by: MA Tech

Regular price PKR 9,088
Regular price Sale price PKR 9,088
Sale Sold out
Shipping calculated at checkout.

TC-C32KN


2MP Motorized IR Dome Camera SuperLite Series


Key Features

  • Plastic Housing
  • Up to 2MP (1920×1080) @ 30fps
  • Motorized Varifocal Lens: 2.8–12mm
  • S+265 / H.265 / H.264 Video Compression
  • 0.02Lux Color Illumination (F1.6), 0 Lux B/W with IR
  • IR Range: Up to 30m (4 LEDs)
  • Built-in Microphone
  • MicroSD Slot: Supports up to 512GB
  • IP66 Rated for Outdoor Use
  • PoE (IEEE 802.3af) & DC12V±25%
  • Operating Temp: -30°C to +60°C
  • Video Analytics: Motion, Mask, Perimeter Detection

📸 Camera

Image Sensor 1/2.8" CMOS
Min. Illumination Color: 0.02Lux @ F1.6 (AGC ON)
B/W: 0 Lux with IR
Shutter Speed 1s to 1/100,000s
Day/Night IR-Cut Filter (ICR)
Smart IR Yes
WDR DWDR
S/N Ratio >39dB
Angle Adjustment Pan: 0–350°

🔍 Lens

Lens Type Motorized
Focal Length 2.8–12mm
Aperture F1.6 (Fixed)
Lens Mount Φ14
Field of View H: 105.6°–29°
V: 58.8°–16.6°
D: 120.9°–33.4°

📏 DORI Distance

WIDE
Detect: 38.6m | Observe: 15.3m | Recognize: 7.7m | Identify: 3.8m
TELE
Detect: 165.5m | Observe: 65.6m | Recognize: 33.1m | Identify: 16.5m


💡 Illuminator

IR LEDs 4 IR LEDs
IR Distance Up to 30m
Wavelength 850nm

🎞️ Video Compression

Video Codecs S+265 / H.265 / H.264 (B/M/H)
Video Bitrate 32 Kbps ~ 4 Mbps
Audio Compression G.711A / G.711U
Audio Sampling Rate 8kHz

🖼️ Image & Display

Max. Resolution 2MP (1920×1080)
Main Stream PAL: 25fps @ 1080p / 720p / 640×480 / 704×576
NTSC: 30fps @ 1080p / 720p / 640×480 / 704×480
Sub Stream PAL: 25fps @ 704×576 / 704×288 / 640×360 / 352×288
NTSC: 30fps @ 704×480 / 704×240 / 640×360 / 352×240
Image Enhancements BLC / HLC / AGC / 3D DNR / Defog
White Balance Auto / Semi / Manual / Lock + multiple presets
Privacy Mask 4 zones
ROI 8 static zones
OSD 1 region, 1 line, up to 48 characters (or 16 Chinese characters)
Picture Overlay Not Supported

🧠 Smart Functions

Alarms Motion Detection, Mask Alarm, IP Conflict, Disk Full, Disk Error
Video Analytics Tripwire, Perimeter Detection
Linkage Options Trigger Recording / Snapshot / Notify Center / Alarm Output

🌐 Network & Compatibility

ANR Support Yes
Protocols HTTP, HTTPS, TCP/IP, UDP, FTP, UPnP, DHCP, DNS, DDNS, NTP, TLS v1.2, SSH, ICMP, QoS, IPv4
ONVIF Profiles S / T / G
Integrations P2P (excludes Profile G), SDK, CGI, Milestone, RTSP
Remote Connections Max. 2
Client Software Easy7 (PC), EasyLive Plus (Mobile)
Web Browser IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+

🔌 Interfaces

Network Port 1 × RJ45 (10/100 Mbps)
Audio Input Built-in Mic
Reset Button Yes (Built-in)
Local Storage MicroSD/SDHC/SDXC, up to 512GB
RTC Yes

🌦️ Environmental & Electrical

Operating Temp -30°C ~ +60°C (-22°F ~ 140°F)
Humidity ≤95% RH
Power Supply DC12V±25% or PoE (IEEE 802.3af)
Power Consumption Max. 6.5W (DC), Max. 7W (PoE)
Protection IP66, Surge (4KV), ESD (6KV)

📐 Mechanical & Packaging

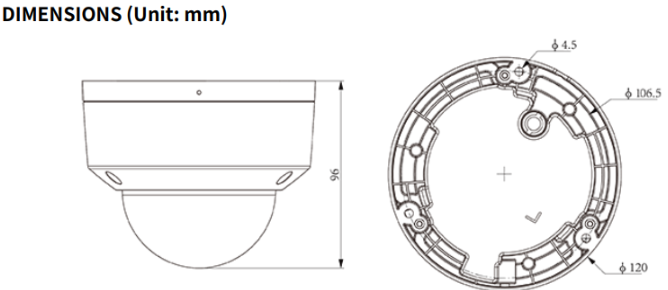

Dimensions (mm) 120 × 120 × 96
Package Size (mm) 140 × 140 × 120
Gross Weight 0.5 kg

🌍 Language Support

19 Languages:
Simplified & Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebrew, Arabic, Vietnamese, German, Ukrainian, Portuguese, Albanian
