TC-C32KN Spec: I3/Y/WIFI/2.8mm/V4.1 Tiandy Spark Wi-Fi Dome 2MP Fixed 2.8mm IP67 IK10

TC-C32KN Spec: I3/Y/WIFI/2.8mm/V4.1 Tiandy Spark Wi-Fi Dome 2MP Fixed 2.8mm IP67 IK10

Sold by: MA Tech

Regular price PKR 13,183
Regular price Sale price PKR 13,183
Sale Sold out
Shipping calculated at checkout.

📄 Product Description

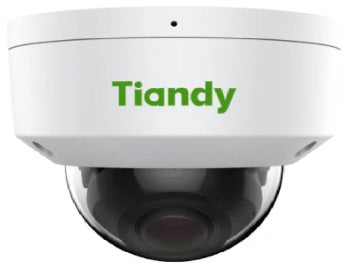

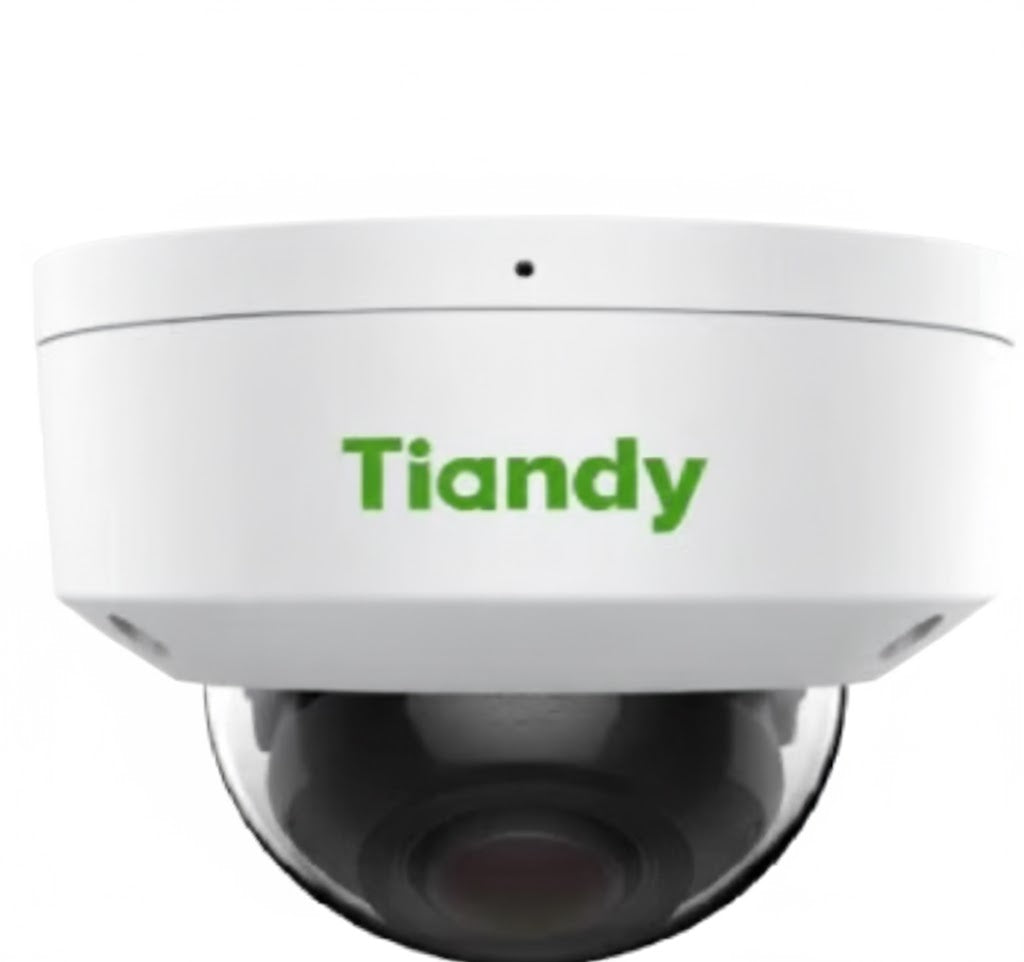

The Tiandy TC-C32KN from the SuperLite Series is a compact yet powerful 2MP motorized IR dome camera housed in a durable plastic shell. Offering high-definition video recording at up to 1920×1080@30fps, it uses advanced compression technologies (S+265/H.265/H.264) to optimize bandwidth and storage use.

Equipped with a 2.8–12mm motorized lens, this camera allows remote zoom and focus adjustment for flexible viewing. It offers excellent low-light performance with a minimum illumination of 0.02 Lux (color) and built-in Smart IR LEDs that extend visibility up to 30 meters in total darkness.

This model features built-in audio (mic), support for microSD storage up to 512GB, and is compatible with ONVIF (Profiles S/T/G), SDK, and RTSP. With an IP66 weatherproof rating, wide operating temperature tolerance, and PoE support, it’s an ideal solution for indoor and outdoor surveillance across various environments.


Tiandy TC-C32KN, jo ke SuperLite Series ka camera hai, ek chhota magar taqatwar 2MP motorized IR dome camera hai jo mazboot plastic housing mein bana hua hai.

Yeh camera 1920×1080 resolution @ 30fps par HD video record karta hai aur advanced compression technologies jaise S+265, H.265, aur H.264 use karta hai, jisse bandwidth aur storage ka behtareen istemal hota hai.

Is mein 2.8–12mm motorized lens laga hua hai, jo remote se zoom aur focus adjust karne ki sahulat deta hai, jis se viewing zyada flexible ho jati hai.

Low-light performance bohat achi hai, minimum illumination sirf 0.02 Lux (color) hai, aur built-in Smart IR LEDs ki wajah se poori tareh andheray mein bhi 30 meters tak wazeh tasveer milti hai.

Is model mein built-in microphone bhi hai, microSD card slot hai jo 512GB tak storage support karta hai, aur yeh ONVIF (Profiles S/T/G), SDK, aur RTSP ke saath compatible hai.

IP66 weatherproof rating, wide operating temperature tolerance, aur PoE support ki wajah se yeh camera indoor aur outdoor surveillance ke liye mukammal hai, har qisam ke mahaul mein asaani se install kiya ja sakta hai.


📊 Technical Specifications – TC-C32KN (SuperLite Series)

Category Specification
Model TC-C32KN Spec: I3/A/E/Y/2.8-12mm/V4.2
Series SuperLite Series
Camera Type 2MP Motorized IR Dome Camera
Housing Material Plastic
Image Sensor 1/2.8" CMOS
Min. Illumination Color: 0.02Lux @F1.6 (AGC ON), B/W: 0Lux with IR
Shutter Speed 1s to 1/100,000s
Day/Night Mode IR-cut filter with auto switch (ICR)
WDR Digital WDR (DWDR)
S/N Ratio >39dB
Angle Adjustment Pan: 0°–350°, Tilt: 0°–70°, Rotate: 0°–350°
Lens Type Motorized
Focal Length 2.8mm ~ 12mm
Lens Mount Φ14
Aperture F1.6 (Fixed)
Field of View H: 105.6°–29°, V: 58.8°–16.6°, D: 120.9°–33.4°
DORI Distance (Wide) D: 38.6m, O: 15.3m, R: 7.7m, I: 3.8m
DORI Distance (Tele) D: 165.5m, O: 65.6m, R: 33.1m, I: 16.5m
IR LEDs / Range 4 LEDs / Up to 30m
IR Wavelength 850nm
Video Compression S+265 / H.265 / H.264B / H.264M / H.264H
Video Bit Rate 32Kbps ~ 4Mbps
Audio Compression G.711A / G.711U
Audio Sampling Rate 8kHz
Max. Resolution 2MP (1920×1080 @30fps)
Main Stream PAL: 25fps; NTSC: 30fps (1920×1080 to 704×480)
Sub Stream PAL: 25fps; NTSC: 30fps (704×576 to 352×240)
BLC / HLC / AGC Yes
3D DNR / Defog Yes
White Balance Modes Auto, Semi-auto, Manual, various lighting presets
ROI 8 static rectangular areas
OSD 1 region, 1 line, up to 48 characters or 16 Chinese characters
Privacy Mask 4 black static areas
Smart Features Tripwire, Perimeter
Alarms Motion Detection, Mask Alarm, IP Conflict, Disk Full, Disk R/W Error
Alarm Linkage Trigger Recording, Capture, Alarm Output, Notify Surveillance Center
Network Protocols HTTP, HTTPS, TCP/IP, UDP, UPnP, FTP, DHCP, DNS, DDNS, NTP, TLS v1.2, SSH, IPv4
ANR Support Yes
System Compatibility ONVIF (S/T/G), P2P (excl. Profile G), SDK, CGI, RTSP, Milestone
Remote Users Up to 2
Client Software Easy7 VMS, EasyLive Plus
Web Interface IE10+, Firefox 52+, Chrome 57+, Edge 89+, Safari 11+
Audio I/O Built-in Mic only
Reset Button Yes (Built-in)
Local Storage microSD/microSDHC/microSDXC up to 512GB
RTC Yes
Languages Supported 19 (including English, Chinese, Spanish, Arabic, Russian, etc.)
Operating Temperature -30°C to 60°C (-22℉ to 140℉)
Operating Humidity ≤95% RH
Storage Temperature -30°C to 60°C
Storage Humidity 10% to 95% RH (non-condensing)
Power Supply DC12V±25%, Max. 6.5W / PoE (IEEE 802.3af), Max. 7W
Protection IP66, Surge: 4000V, ESD: 6000V

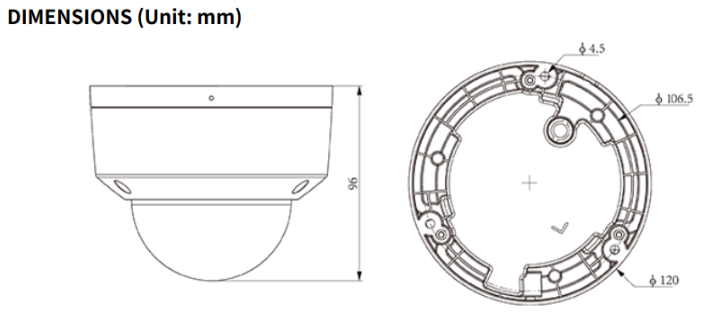

Dimensions (Camera) 120×120×96mm
Dimensions (Package) 140×140×120mm
Weight (Gross) 0.5kg
