TC-C32PS Spec:I3/E/Y/M/H/2.8mm/V4.2 Tiandy Pro SMD Mini Dome 2MP Fixed 2.8mm IP67 Support Tripwire, perimeter+Human Vehicle Classification, Full Metal
TC-C32PS Spec:I3/E/Y/M/H/2.8mm/V4.2 Tiandy Pro SMD Mini Dome 2MP Fixed 2.8mm IP67 Support Tripwire, perimeter+Human Vehicle Classification, Full Metal
Sold by: MA Tech

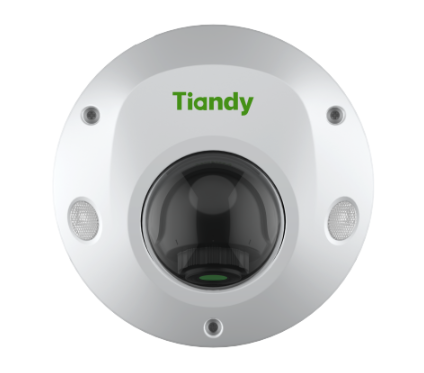

Tiandy TC-C32PS – 2MP Fixed IR Dome Camera
Model: I3/E/Y/M/H/4mm/V4.2 | Pro Series
The Tiandy TC-C32PS is a professional-grade 2MP fixed dome IP camera designed to deliver high-quality surveillance with intelligent features in a compact and robust form factor. Featuring a 1/2.8" CMOS sensor, it captures sharp 1080p Full HD video at up to 30fps, even in low-light environments, thanks to its 0.002Lux sensitivity and integrated Smart IR illumination with a range of up to 30 meters.
Encased in a durable metal housing with IP66 weatherproof and IK08 vandal-resistant ratings, this camera is suitable for harsh outdoor environments, operating in extreme temperatures from -40°C to 65°C. The built-in microphone enables audio capture, while edge storage via microSD card support up to 512GB ensures local video backup.
It supports S+265/H.265/H.264 video compression for efficient streaming, and its AI-driven analytics include face capture, human/vehicle classification, tripwire, and perimeter intrusion detection. With rich alarm features, flexible event linkage, and compatibility with major VMS platforms via ONVIF (Profiles S/T/G/M), the TC-C32PS is ideal for smart surveillance deployments in commercial and public spaces.
Tiandy TC-C32PS aik professional-grade 2MP fixed dome IP camera hai jo compact aur mazboot design ke sath high-quality surveillance aur intelligent features provide karta hai. Is mein 1/2.8" CMOS sensor laga hua hai jo 1080p Full HD video 30fps tak record karta hai — chahe roshni kam ho, iska 0.002Lux low-light sensitivity aur Smart IR (30 meter range) ensure karta hai ke footage hamesha clear ho.
Yeh camera metal housing mein enclosed hai, aur IP66 weatherproof aur IK08 vandal-resistant rating ke sath aata hai, jo ise outdoor installations ke liye perfect banata hai — extreme temperature range -40°C se 65°C tak easily handle karta hai. Built-in microphone audio capture ka option deta hai, jabke microSD card slot (512GB tak support) edge recording ke liye available hai.
Is camera mein S+265, H.265 aur H.264 video compression technology use ki gayi hai jo bandwidth aur storage dono efficiently use karta hai. Advanced AI-based analytics features jese face capture, human/vehicle classification, tripwire, aur perimeter intrusion detection is camera ko smart surveillance ke liye ideal banate hain.
Ismein rich alarm triggers, flexible event linkage aur ONVIF (Profiles S, T, G, M) compatibility bhi hai — jis ki wajah se yeh camera commercial aur public areas jese offices, plazas, ya educational institutes ke liye ek reliable aur intelligent choice hai.
📋 Specification Table
| Category | Specification |
| Model | TC-C32PS Spec: I3/E/Y/M/H/4mm/V4.2 |
| Series | Pro Series |
| Camera Type | Fixed IR Dome |
| Housing Material | Metal |
| Image Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.002Lux @ F1.6 (AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day/Night | IR-cut filter with auto switch (ICR) |
| WDR | 120dB |
| S/N Ratio | >42dB |
| Smart IR | Yes |
| IR LEDs | 2 |
| IR Distance | Up to 30m |
| IR Wavelength | 850nm |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Aperture | F1.6 (Fixed) |
| Lens Mount | M12 |
| Field of View | H: 85.2°, V: 44.9°, D: 95.5° |
| DORI Distance | Detect: 55m, Observe: 22m, Recognize: 11m, Identify: 5.5m |
| Video Compression | S+265, H.265, H.264B/M/H, Motion JPEG |
| Audio Compression | G.711A/U, ADPCM_D, AAC_LC |
| Audio Sampling Rates | 8kHz / 32kHz / 48kHz |
| Max Resolution | 2MP (1920×1080) @30fps |
| Main Stream (PAL) | 25fps @ 1920×1080, 1280×720, 640×480, 704×576 |
| Main Stream (NTSC) | 30fps @ same resolutions |
| Sub Stream (PAL) | 25fps @ 704×576, 704×288, 640×360, 352×288 |
| Sub Stream (NTSC) | 30fps @ same resolutions |
| Third Stream (PAL) | 25fps @ 704×576, 704×288, 352×288 |
| Third Stream (NTSC) | 30fps @ same resolutions |
| Image Enhancements | BLC, HLC, AGC, 3D DNR, Defog |
| White Balance | Auto, Semi-Auto, Manual, presets (e.g., Daylight, Warm Light, etc.) |
| OSD | 5 regions, up to 127 characters or 42 Chinese characters |
| Picture Overlay | 1 BMP image (200x200px, 16-color) |
| Privacy Mask | 4 regions |
| ROI (Regions of Interest) | 8 rectangular static areas |
| Corridor Mode | Yes |
| Audio I/O | 1 input / 1 output |
| Alarm I/O | 1 input (TTL, 3mA, 3.3VDC), 1 output (TTL, 30mA, 12VDC) |
| Built-in Mic | Yes |
| Reset Button | Yes (Built-in) |
| Storage Support | microSD/microSDHC/microSDXC (up to 512GB) |
| RTC (Real-Time Clock) | Yes |
| Alarm Features | Motion Detection, Mask Alarm, Disk Full/Error, IP/MAC Conflict, FTP Exception |
| Linkage Actions | Email, Sound, Recording, Snapshot, Notify CMS, Alarm Output |
| Video Analytics | Human/Vehicle Classification, Tripwire, Perimeter, Video/Audio Abnormalities |
| Face Detection | Up to 8 faces detected, 4 faces captured in same scene |
| Face Mode | Face Capture |
| Scene Behavior Rules | Up to 8 |
| ANR | Yes |
| Network Protocols | HTTP, HTTPS, TCP/IP, UDP, SNMP, IGMP, UPnP, DNS, DDNS, FTP, SFTP, SRTP, NTP, etc. |
| System Compatibility | ONVIF (Profile S/T/G/M), SDK, CGI, Milestone, RTSP, RTMP |
| Remote Access | Max 7 connections |
| VMS Client | Easy7 |
| Mobile App | EasyLive Plus |
| Web Browser Support | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Operating Temp | -40°C ~ +65°C (-40°F ~ +149°F) |
| Storage Temp | -40°C ~ +65°C |
| Humidity | ≤95% RH (Operating), 10%~95% RH (Storage, non-condensing) |
| Power Supply | DC12V ±25%, Max 6.5W; PoE (802.3af), Max 8W |
| Protection Rating | IP66 (weatherproof), IK08 (vandal-resistant), Surge: 4000V, ESD: 6000V |

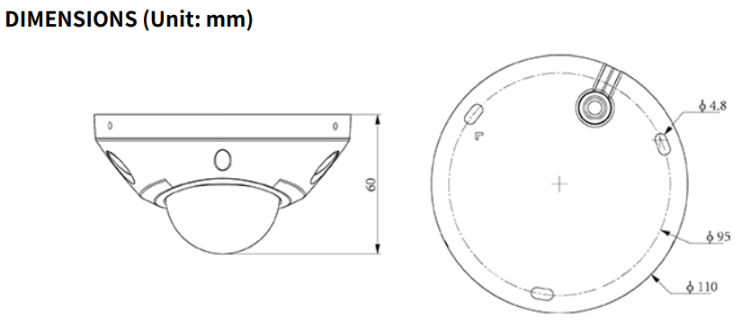

| Dimensions (Camera) | 110 × 110 × 60 mm |
| Dimensions (Package) | 140 × 140 × 120 mm |
| Weight | 0.5kg |
| Languages Supported | 19 (English, Chinese, Spanish, Korean, Turkish, Arabic, etc.) |
