TC-C32QN Spec:I3/E/Y/2.8mm/V5.1 Tiandy Spark S+265 Bullet 2MP Fixed 2.8mm IP67 PoE DC Cable
TC-C32QN Spec:I3/E/Y/2.8mm/V5.1 Tiandy Spark S+265 Bullet 2MP Fixed 2.8mm IP67 PoE DC Cable
Sold by: MA Tech

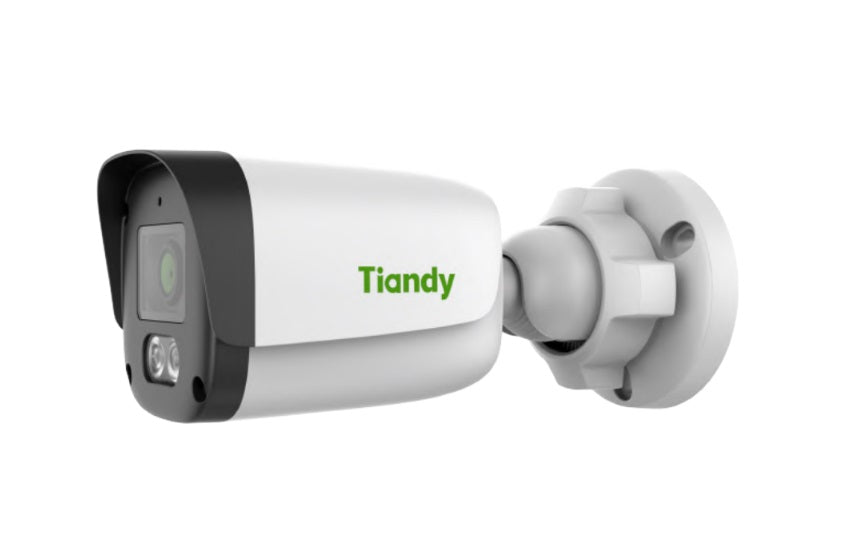

SuperLite Series 2MP Fixed Lens Color Maker Bullet Camera
Model: TC-C32QN Spec:I5W/E/Y/2.8mm/V4.2
Brand: Tiandy
Product Description
The SuperLite Series 2MP Bullet Camera delivers exceptional image clarity and reliable performance in a compact form. Engineered for challenging outdoor conditions, it features a rugged metal + plastic housing, IP67 weatherproof rating, and infrared night vision up to 50 meters.
Equipped with a 2.8mm wide-angle lens, built-in microphone, and advanced S+265 compression, this camera is perfect for business or home security. It supports PoE or 12V DC, has a smart IR-cut filter, DWDR, 3D DNR, and intelligent video analytics to provide round-the-clock surveillance with crisp video and audio performance.
SuperLite Series ka yeh 2MP Bullet Camera aik compact aur durable design ke saath aata hai jo outstanding image clarity aur reliable performance deta hai. Yeh camera specially outdoor surveillance ke liye design kiya gaya hai, jisme metal aur plastic ka strong housing use hua hai, aur IP67 weatherproof rating ke saath har mausam ka muqabla karta hai. Is mein infrared night vision bhi hai jo andheray mein bhi 50 meters tak clear nazar deta hai.
Camera mein 2.8mm wide-angle lens laga hua hai jo zyada area cover karta hai, aur built-in microphone ke zariye audio bhi record hoti hai. Advanced S+265 video compression technology se data storage efficient hoti hai. Yeh camera PoE ya 12V DC dono power options support karta hai. Is ke features mein smart IR-cut filter, DWDR (Digital Wide Dynamic Range), 3D DNR (Digital Noise Reduction), aur intelligent video analytics shamil hain, jo 24/7 crisp video aur audio monitoring ko ensure karte hain—ghar ya business dono ke liye behtareen choice hai.
Key Features
- 2MP (1920×1080) Full HD video @30fps
- Fixed 2.8mm lens with 104.9° wide horizontal view
- IR range up to 50m with Smart IR technology
- Built-in microphone for live audio monitoring
- S+265/H.265/H.264 compression standards
- Power: 12V DC ±25% or PoE (IEEE 802.3af)
- Weatherproof IP67-rated housing
- DWDR, 3D DNR, Defog, BLC, HLC
- Motion detection & video analytics (Tripwire, Perimeter)
- Supports ONVIF, RTSP, Easy7 VMS, and mobile app (EasyLive Plus)
- Multi-language web client (19 languages supported)
Technical Specifications
Camera
- Image Sensor: 1/2.8" CMOS
- Min. Illumination:
- Color: 0.02Lux @ (F1.6, AGC ON)
- B/W: 0Lux with IR
- Shutter Speed: 1s to 1/100000s
- Day/Night: IR-Cut (ICR Auto Switch)
- WDR: DWDR
- S/N Ratio: >39dB
- Angle Adjustment: Pan 0–360°, Tilt 0–80°, Rotation 0–360°
Lens
- Lens Type: Fixed
- Focal Length: 2.8mm
- Aperture: F1.6
- Mount: M12
- Field of View:
- H: 104.9°
- V: 56.5°
- D: 119.2°
DORI Distance
- Detect: 38.6m
- Observe: 15.3m
- Recognize: 7.7m
- Identify: 3.8m
Illuminator
- IR LEDs: 2
- IR Distance: Up to 50 meters
- White Light LEDs: 2
- White Light Range: 15 meters
- Wavelength: 850nm
Audio/Video
- Compression: S+265 / H.265 / H.264B/M/H
- Audio Compression: G.711A/U, ADPCM_D
- Sampling Rates: 8kHz, 32kHz, 48kHz
- Max. Resolution: 2MP (1920×1080)
- Streaming:
- Main: 1080p/720p/640x480 (PAL 25fps / NTSC 30fps)
- Sub: 704x576, 640x360, etc.
- Image Features: BLC, HLC, AGC, 3D DNR, Defog
- White Balance Modes: Auto/Manual + Light Source Presets
- Privacy Mask: 4 Zones
- ROI: 8 Configurable Regions
- OSD Overlay: 1 Region, 48 Characters
Smart Video & Alarms
- Motion Detection
- Mask Alarm
- IP Conflict Warning
- Trigger Capture / Warmlight
- Video Analytics: Tripwire, Perimeter
- Behavioral Rules: 1 Scene / 2 Rule Sets
Network Features
- Protocols: HTTP, HTTPS, TCP/IP, UDP, DHCP, DNS, FTP, NTP, IPv4, SSH, TLS v1.2
- ONVIF Profiles: S / T
- Compatibility: Easy7 VMS, Milestone, RTSP, CGI, SDK
- Remote Connections: ≤2
- Browser Support: Chrome 57+, Edge 89+, IE10+, Safari 11+, Firefox 52+
- Mobile App: EasyLive Plus
Interface & Power
- Network Port: 1× RJ-45 (10/100 Mbps)
- Built-in Microphone: Yes
- Power Supply:
- DC12V ±25% Max 6.5W
- PoE (IEEE 802.3af), Max 7W
- Protection:
- Surge: 4000V
- ESD: 6000V
Product Dimensions & Weight
- Camera Dimensions: 164 × 73 × 73 mm
- Packaging Dimensions: 180 × 90 × 95 mm
- Gross Weight: 0.3 kg
DIMENSIONS (Unit: mm)
Assembly diagram of Junction Box
Why Choose This Camera?
This camera is an ideal choice for users who need:
- Reliable 24/7 surveillance with IR and white light
- High image clarity even in poor lighting
- Easy installation with PoE and wide compatibility
- Built-in microphone for real-time audio
- Intelligent video analytics for proactive monitoring
