TC-C32QN Spec:I3/E/Y/4mm/V5.1 Tiandy Spark S+265 Bullet 2MP Fixed 4mm IP67 PoE with DC Cable
TC-C32QN Spec:I3/E/Y/4mm/V5.1 Tiandy Spark S+265 Bullet 2MP Fixed 4mm IP67 PoE with DC Cable
Sold by: MA Tech

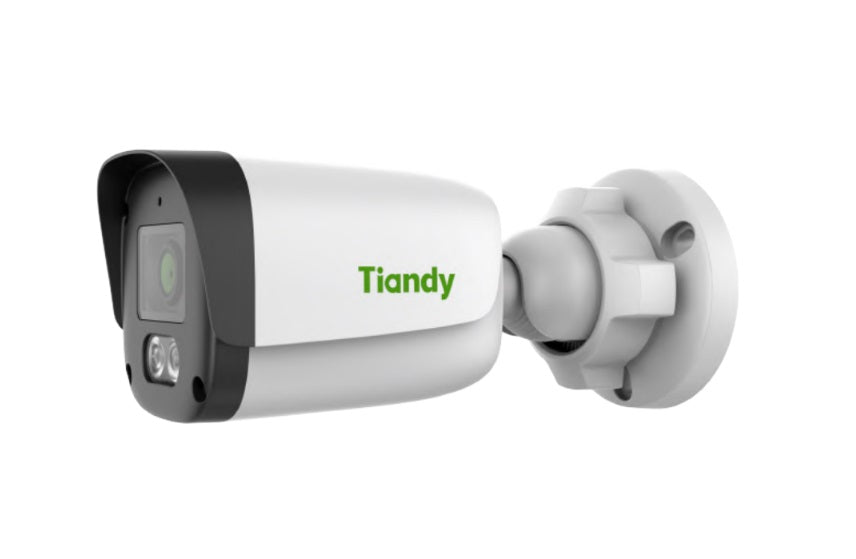

Tiandy TC-C32QN 2MP SuperLite Series S+265 Bullet Camera – 4mm Fixed Lens, PoE, IP67, Mic
Product Description
The Tiandy TC-C32QN Spec:I3/E/Y/4mm/V5.1 is part of the SuperLite Series, delivering exceptional performance in a compact, durable body. With a 4mm fixed lens, 2MP full HD resolution, built-in mic, and Smart IR up to 50m, this camera ensures reliable video and audio surveillance in all lighting conditions.
The device features S+265 compression, minimizing bandwidth without sacrificing quality. Engineered for extreme environments with an IP67 rating, metal+plastic housing, and wide operating temperatures, this bullet camera is ideal for home, office, and industrial security.
Tiandy TC-C32QN Spec:I3/E/Y/4mm/V5.1 camera, SuperLite Series ka hissa hai jo chhoti si body mein zabardast performance deta hai. Is mein 4mm ka fixed lens laga hai jo 2MP Full HD resolution ke sath clear aur sharp video provide karta hai. Built-in microphone ke zariye audio bhi record hoti hai, jabke Smart IR technology andheray mein bhi 50 meters tak ki range cover karti hai.
Yeh camera advanced S+265 compression technology use karta hai, jo video quality compromise kiye baghair bandwidth aur storage dono bachata hai. IP67 weatherproof rating, metal+plastic housing, aur wide temperature tolerance ki wajah se yeh camera har tarah ke environment mein kaam karne ke liye tayar hai. Ghar, office, ya industrial surveillance—yeh camera har jaga ke liye ek reliable aur durable solution hai.
✔️ Key Features
- 2MP Full HD resolution (1920×1080@30fps)
- 4mm fixed focal lens for focused coverage
- Built-in microphone for real-time audio monitoring
- Smart IR with up to 50m night vision
- S+265/H.265/H.264 compression standards
- IP67-rated weatherproof metal+plastic housing
- 3D DNR, DWDR, BLC, HLC for optimized image quality
- Motion detection & perimeter video analytics
- DC12V ±25% and PoE (IEEE 802.3af) power options
- Supports ONVIF, RTSP, SDK, CGI, Easy7 VMS & EasyLive Plus
📊 Technical Specifications
Category | Specification |
Model | TC-C32QN Spec:I3/E/Y/4mm/V5.1 |
Image Sensor | 1/2.8" CMOS |
Min. Illumination | Color: 0.02Lux @ (F1.6, AGC ON) |
B/W: 0Lux with IR | |
Shutter Time | 1s to 1/100000s |
Day/Night Mode | IR-Cut Filter (ICR) Auto Switch |
Smart IR | Yes |
WDR | DWDR |
S/N Ratio | >39dB |
Lens Type | Fixed Focal Lens |
Focal Length | 4mm |
Lens Mount | M12 |
Aperture | F1.6 (Fixed) |
Field of View | ~85° (H) *Estimated for 4mm lens |
IR Range | Up to 50m |
White LEDs | 2 LEDs (15m range) |
IR Wavelength | 850nm |
Max. Resolution | 1920×1080 @30fps |
Main Stream | PAL: 25fps / NTSC: 30fps (1080p, 720p, D1) |
Sub Stream | Multiple low-res formats supported (704x576 to 352x240) |
Compression | Video: S+265, H.265, H.264 (B/M/H) |
Audio: G.711A/U, ADPCM_D | |
Audio Sampling | 8kHz / 32kHz / 48kHz |
Built-in Mic | Yes |
Image Enhancements | BLC, HLC, AGC, 3D DNR, Defog, DWDR |
White Balance | Auto, Semi-Auto, Manual, Preset Light Modes |
Privacy Mask | 4 Configurable Zones |
ROI | 8 Static Regions |
OSD Overlay | 1 Region, Max 48 characters |
Video Analytics | Tripwire, Perimeter Detection |
Smart Alarms | Motion Detection, Mask Alarm, IP Conflict |
Linkage Methods | Trigger Warmlight, Trigger Capture |
Protocols Supported | HTTP, HTTPS, TCP/IP, UDP, DHCP, DNS, NTP, FTP, RTSP, SSH, TLS v1.2, etc. |
ONVIF Compatibility | Profile S/T |
System Integration | Easy7 VMS, EasyLive Plus, Milestone, SDK, CGI |
Browser Support | Chrome, Firefox, Safari, Edge, IE10+ |
Mobile App | EasyLive Plus |
Network Interface | 1× RJ-45 (10/100 Base-T) |
Remote Access | ≤2 Simultaneous Connections |
Power Supply | DC12V ±25%, Max. 6.5W |
PoE IEEE 802.3af, Max. 7W | |
Surge Protection | 4000V |
ESD Protection | 6000V |
Ingress Rating | IP67 (Water & Dust Resistant) |
Operating Temp | -30℃ to +60℃ (-22℉ to +140℉) |
Operating Humidity | ≤95% RH (non-condensing) |
Storage Conditions | -30℃ to +60℃ / 10–95% RH |
Camera Dimensions | 164 × 73 × 73 mm |
Package Dimensions | 180 × 90 × 95 mm |
Gross Weight | 0.3 kg |
Languages Supported | 19 Languages (EN, CN, RU, AR, FR, ES, DE, PT, etc.) |
📏 Product Dimensions & Weight
Metric | Value |
Camera Dimensions | 164 × 73 × 73 mm |
Package Dimensions | 180 × 90 × 95 mm |
Gross Weight | 0.3 kg |
Why Choose Tiandy TC-C32QN?
- ✅ Reliable Surveillance: 2MP full HD clarity with true day/night vision.
- ✅ Rugged for Any Environment: IP67 weatherproofing with surge and ESD protection.
- ✅ Affordable Yet Powerful: High-end features like video analytics, audio, and IR in a budget-friendly model.
- ✅ Simple Setup: Plug & Play PoE with flexible network and remote monitoring options.
- ✅ Trusted Brand: Tiandy is a globally recognized name in AIoT surveillance solutions.
DIMENSIONS (Unit: mm)
Assembly diagram of Junction Box
