TC-C32QN Spec:I5W/E/Y/4mm/V4.2 Tiandy Spark Bullet 2MP Fixed 4mm
TC-C32QN Spec:I5W/E/Y/4mm/V4.2 Tiandy Spark Bullet 2MP Fixed 4mm
Sold by: MA Tech

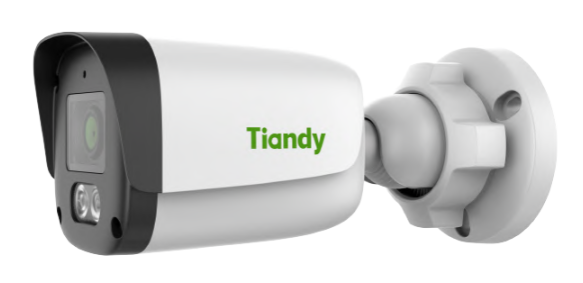

TC-C32QN 2MP Fixed Color Maker Bullet Camera (2.8mm)
SuperLite Series | Model: I5W/E/Y/2.8mm/V4.2
✅ Key Features
- Up to 2MP (1920×1080 @ 30fps)
- Starlight: 0.02 Lux @ F1.6 (Color)
- Smart IR (Up to 50m) & Whitelight (Up to 15m)
- S+265 / H.265 / H.264B/M/H Compression
- Built-in Mic for Audio Monitoring
- Tripwire & Perimeter Video Analytics
- Weatherproof (IP67) with Metal+Plastic Housing
- PoE & DC12V Power Options
- DWDR, BLC, HLC, 3D DNR, Defog
- Operating Temp: -30°C ~ 60°C
📸 Camera Specs
Image Sensor | 1/2.8" CMOS |
Min. Illumination | Color: 0.02 Lux @ F1.6 (AGC ON) |
B/W: 0 Lux (IR On) | |
Shutter Time | 1s ~ 1/100,000s |
Day/Night | IR-Cut Filter with Auto Switch (ICR) |
Smart IR | Yes |
Wide Dynamic Range | DWDR |
S/N Ratio | >39dB |
Angle Adjustment | Pan: 0–360°; Tilt: 0–80°; Rotate: 0–360° |
🔍 Lens
Type | Fixed |
Focal Length | 2.8mm |
Mount | M12 |
Aperture | F1.6 (Fixed) |
Field of View | Horizontal: 104.9° |
Vertical: 56.5° | |
Diagonal: 119.2° |
📏 DORI Distance
Detect | 38.6m |
Observe | 15.3m |
Recognize | 7.7m |
Identify | 3.8m |
💡 Illumination
IR LEDs | 2 |
IR Distance | Up to 50m |
IR Wavelength | 850nm |
White LEDs | 2 |
Whitelight Distance | Up to 15m |
🎞️ Video & Audio
Max. Resolution | 1920×1080 @ 30fps |
Main Stream | PAL: 25fps (1080p, 720p, 640×480, 704×576) |
NTSC: 30fps (1080p, 720p, 640×480, 704×480) | |
Sub Stream | PAL: 25fps (704×576 to 352×288) |
NTSC: 30fps (704×480 to 352×240) | |
Video Compression | S+265 / H.265 / H.264B/M/H |
Bitrate | 32Kbps – 6Mbps |
Audio Compression | G.711A / G.711U / ADPCM_D |
Audio Sample Rates | 8kHz / 32kHz / 48kHz |
Audio Input | Built-in Microphone |
🖼️ Image Features
Enhancement | BLC / HLC / AGC / 3D DNR / Defog |
White Balance | Auto, Semi-Auto, Manual, Light Source Presets |
ROI | 8 Fixed Rectangular Zones |
Privacy Mask | 4 Black Static Regions |
OSD | 1 Region, 1 Line, Up to 48 Characters or 16 Chinese Characters (Fonts: 16×16 / 32×32 / 48×48) |
🧠 Smart Features
Alarms | Motion Detection, Mask Alarm |
Exception Alarms | IP Address Conflict |
Linkage Methods | Trigger Whitelight, Trigger Capture |
Video Analytics | Tripwire, Perimeter |
Scene Behavior Rules | Analyze In 1 Scene |
🌐 Network
Protocols | HTTP, HTTPS, TCP/IP, UDP, FTP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, TLS v1.2, QoS, IPv4, SSH, Unicast |
Compatibility | ONVIF (Profiles S/T), SDK, CGI, Milestone, P2P (exclusive with Profile G), RTSP |
Remote Connections | ≤ 2 |
Client Software | Easy7 (VMS), EasyLive Plus (Mobile) |
Web Browser Support | IE10+, Firefox 52+, Chrome 57+, Edge 89+, Safari 11+ |
🔌 Interfaces
Network Port | 1 × RJ45 (10/100 Mbps) |
Built-in Mic | Yes |
Reset Button | Not specified |
⚙️ General
Housing Material | Metal + Plastic (SuperLite Series) |
Ingress Protection | IP67, Surge: 4000V, ESD: 6000V |
Operating Temp | -30℃ ~ 60℃ (-22℉ ~ 140℉) |
Humidity | ≤ 95% RH |
Power Supply | DC12V ±25%, Max. 6.5W |
PoE (802.3af), Max. 7W | |

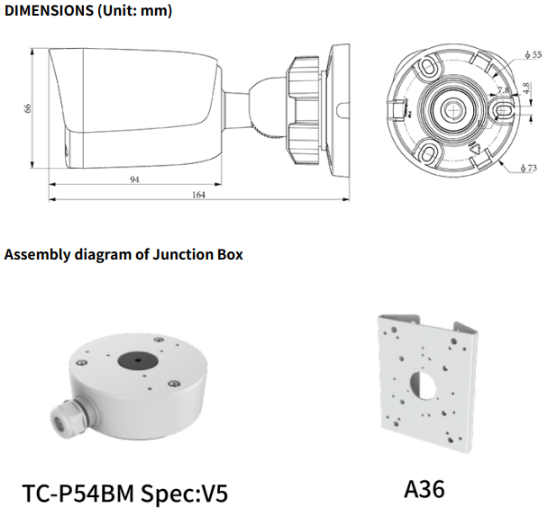

Dimensions | 164 × 73 × 73 mm |
Package Dimensions | 180 × 90 × 95 mm |
Gross Weight | 0.3kg |
🌍 Language Support (19 Languages)
English, Simplified Chinese, Traditional Chinese, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebrew, Arabic, Vietnamese, German, Ukrainian, Portuguese, Albanian
