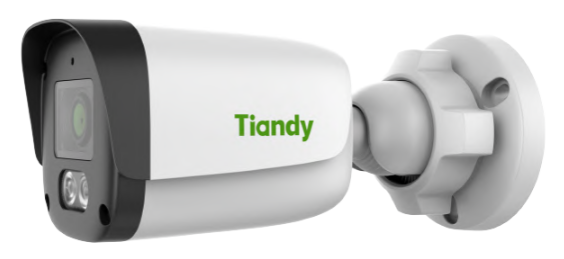

TC-C32QN Spec: I5W/WIFI/2.8mm/V4.0 Wi-Fi Bullet Color Maker 2MP Fixed 2.8mm IP67 (New Arrival)

TC-C32QN Spec: I5W/WIFI/2.8mm/V4.0 Wi-Fi Bullet Color Maker 2MP Fixed 2.8mm IP67 (New Arrival)

Sold by: MA Tech

Regular price PKR 13,923
Regular price Sale price PKR 13,923
Sale Sold out
Shipping calculated at checkout.

📄 Product Description

The Tiandy TC-C32QN (Spec: I5W/E/Y/2.8mm/V4.2) is a cost-effective yet powerful bullet camera from the SuperLite Series, designed for reliable performance in both residential and commercial surveillance applications. With a 2MP resolution (1920×1080 @30fps) and support for advanced compression technologies like S+265, H.265, and H.264, it delivers crisp, bandwidth-efficient video. Equipped with a 1/2.8" CMOS sensor, the camera provides enhanced visibility even in low-light conditions, down to 0.02Lux (Color) and 0Lux (B/W with IR).

Its 2.8mm fixed lens offers a wide horizontal field of view of 104.9°, making it ideal for general monitoring. Integrated Smart IR LEDs provide up to 50m of night vision, and white light LEDs extend coverage to 15m. The device supports tripwire and perimeter intrusion detection, along with motion and mask alarms, making it suitable for proactive surveillance. With IP67-rated weatherproof housing, integrated microphone, built-in microphone, and support for PoE or DC12V power, the TC-C32QN is ready for deployment in challenging outdoor environments. Its compact design and versatile mounting options make it ideal for use on walls, poles, or ceilings.


Tiandy TC-C32QN (I5W/E/Y/2.8mm/V4.2) ek cost-effective magar powerful SuperLite Series ka bullet camera hai, jo residential aur commercial dono surveillance applications ke liye reliable performance provide karta hai.

Is camera mein 2MP resolution (1920×1080 @30fps) hai, aur yeh advanced video compression technologies jaise S+265, H.265, aur H.264 ko support karta hai, jis se crisp aur bandwidth-efficient video milti hai.

Iska 1/2.8" CMOS sensor low-light conditions mein bhi behtareen visibility deta hai, jisme minimum illumination hota hai 0.02Lux (color mode) aur 0Lux (B/W with IR).

  • 2.8mm fixed lens wide horizontal field of view provide karta hai jo 104.9° tak hai, jis se yeh general monitoring ke liye ideal hai.
  • Integrated Smart IR LEDs raat ko 50 meters tak ki night vision dete hain,
  • Aur white light LEDs 15 meters tak ki illumination extend karti hain.

Camera mein tripwire aur perimeter intrusion detection ke sath motion aur mask alarms bhi hain, jo proactive surveillance ke liye suitable hain.

Iska IP67-rated weatherproof housing outdoor environment mein deployment ke liye perfect hai.
Is mein built-in microphone bhi hai, aur power ke liye PoE ya DC12V dono options available hain.

Compact design aur versatile mounting options ki wajah se yeh walls, poles, ya ceilings par aasani se lagaya ja sakta hai.


📊 Technical Specification Table

Category Specification
Series SuperLite Series
Model TC-C32QN Spec: I5W/E/Y/2.8mm/V4.2
Image Sensor 1/2.8" CMOS
Max. Resolution 2MP (1920×1080) @30fps
Min. Illumination Color: 0.02Lux@(F1.6, AGC ON); B/W: 0Lux with IR
WDR DWDR
S/N Ratio >39dB
Day/Night ICR (IR-cut filter with auto switch)
Shutter Time 1s ~ 1/100000s
Lens Type Fixed
Focal Length 2.8mm
Aperture F1.6 (Fixed)
Field of View (FoV) H: 104.9°, V: 56.5°, D: 119.2°
DORI Distance Detect: 38.6m, Observe: 15.3m, Recognize: 7.7m, Identify: 3.8m
IR LEDs / Distance 2 pcs / Up to 50m
White LEDs / Distance 2 pcs / Up to 15m
IR Wavelength 850nm
Video Compression S+265 / H.265 / H.264B / H.264M / H.264H
Video Bitrate 32Kbps ~ 6Mbps
Audio Compression G.711A / G.711U / ADPCM_D
Audio Sampling Rate 8kHz / 32kHz / 48kHz
Max. Frame Rates PAL: 25fps, NTSC: 30fps
Main Stream Resolutions 1920×1080, 1280×720, 640×480, 704×576
Sub Stream Resolutions 704×576, 704×288, 640×360, 352×288
3D DNR / BLC / HLC Yes
White Balance Modes Auto / Semi-Auto / Manual / Preset (Sunshine, Warm Light, Daylight, etc.)
ROI 8 static rectangular regions
OSD Support 1 region, 1 line, 48 characters or 16 Chinese characters
Privacy Masking 4 black static regions
Defog Yes
Smart Features Tripwire, Perimeter, Motion Detection, Mask Alarm
Alarm Triggers Motion Detection, Mask Alarm, IP Conflict
Alarm Linkage Trigger capture, trigger white light
Network Protocols HTTP, HTTPS, TCP/IP, UDP, FTP, NTP, DHCP, DNS, DDNS, QoS, SSH, TLS v1.2, etc.
ONVIF Compatibility Profile S / T (mutually exclusive with Profile G if P2P enabled)
Client Software Easy7 VMS, EasyLive Plus
Remote Access ≤2 users simultaneously
Web Browser Support IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
Audio Interface Built-in microphone
Network Port 1× RJ45 (10/100 Base-T)
Operating Temp -30℃ to 60℃ (-22℉ to 140℉)
Operating Humidity ≤95% RH
Storage Conditions -30℃ to 60℃; 10%~95% RH (non-condensing)
Power Supply DC12V ±25%, Max. 6.5W; PoE (IEEE 802.3af), Max. 7W
Surge / ESD Protection 4000V / 6000V
Ingress Protection IP67
Housing Material Metal + Plastic

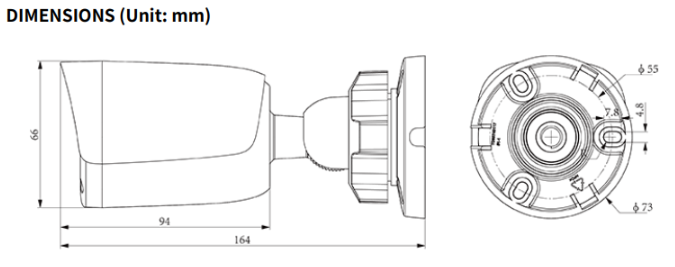

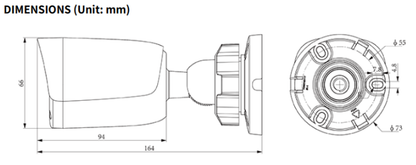

Dimensions (Camera) 164mm (L) × 73mm (W) × 73mm (H)
Package Dimensions 180mm (L) × 90mm (W) × 95mm (H)
Weight Net: 0.3kg
