TC-C32RN Spec:I5/E/Y/QX/2.8mm/V4.2 Tiandy Spark 2MP Fixed 2.8mm
TC-C32RN Spec:I5/E/Y/QX/2.8mm/V4.2 Tiandy Spark 2MP Fixed 2.8mm
Sold by: MA Tech
📷 Tiandy TC-C32RN – 2MP Fixed IR Bullet Camera
Model: TC-C32RN Spec: I5/E/Y/QX/2.8mm/V4.2
Series: Spark Series
Description:
The TC-C32RN is a high-performance 2MP fixed bullet camera from Tiandy’s Spark Series. Designed with a durable plastic housing and rated IP67 for weatherproof protection, it is ideal for demanding outdoor environments. With Smart IR support (up to 50m), wide field of view, DWDR, and built-in mic, it delivers clear and reliable video even in challenging lighting. It supports advanced video compression, smart surveillance features, and a variety of network protocols, making it a versatile and cost-effective solution for 24/7 monitoring.
TC-C32RN Tiandy ke Spark Series ka ek high-performance 2MP fixed bullet camera hai. Yeh camera mazboot plastic housing ke sath design kiya gaya hai aur IP67 weatherproof rating rakhta hai, jo ise har tarah ke outdoor environment ke liye behtareen banata hai.
Is camera mein Smart IR ki support hai jo andheray mein bhi 50 meter tak clear video provide karta hai. Iska wide field of view aur DWDR (Digital Wide Dynamic Range) technology mushkil roshni ke halat mein bhi behtar tasveer dikhata hai. Built-in microphone ki wajah se audio monitoring bhi mumkin hai.
Camera advanced video compression (jaise H.265/S+265), smart surveillance features, aur mukhtalif network protocols ko support karta hai, jis se yeh ek flexible aur cost-effective solution ban jata hai 24/7 security monitoring ke liye — chahe woh ghar ho, daftar ya kisi commercial jagah.
📋 Specifications Table
Category | Specification |
Model | TC-C32RN Spec: I5/E/Y/QX/2.8mm/V4.2 |
Series | Spark Series |
Housing | Plastic |
Image Sensor | 1/3" CMOS |
Min. Illumination | Color: 0.02Lux @ (F1.6, AGC ON), B/W: 0Lux with IR |
Shutter Time | 1s ~ 1/100,000s |
Day & Night | IR-cut filter with auto switch (ICR) |
WDR | DWDR |
S/N Ratio | >36dB |
Angle Adjustment | Pan: 0350°, Tilt: 090°, Rotate: 0~360° |
Lens Type | Fixed focal lens |
Focal Length | 2.8mm |
Lens Mount | M12 |
Aperture | F1.6 (Fixed) |
Field of View | H: 92.8°, V: 52.2°, D: 106.5° |
DORI Distance | Detect: 42.26m, Observe: 16.77m, Recognize: 8.45m, Identify: 4.23m |
IR LEDs | 6 |
IR Distance | Up to 50m |
Wavelength | 850nm |
White LEDs | Not Available |
Max. Resolution | 1920 × 1080 (2MP) |
Main Stream | PAL: 25fps (1920×1080, 1280×720, 640×480, 704×576) |
NTSC: 30fps (1920×1080, 1280×720, 640×480, 704×480) | |
Sub Stream | PAL: 704×576, 704×288, 640×360, 352×288 |
NTSC: 704×480, 704×240, 640×360, 352×240 | |
Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
Video Bit Rate | 32Kbps ~ 4Mbps |
Audio Compression | G.711A / G.711U |
Audio Sampling Rate | 8kHz / 16kHz |
Built-in Mic | Yes |
Image Features | BLC, HLC, AGC, 3D DNR, Defog |
White Balance Modes | Auto / Semi-Auto / Manual / Sunshine / Nature Light / Warm Light / Daylight Lamp / Filament Lamp / Lock |
OSD | 1 region, 1 line, max 48 characters or 16 Chinese characters, 16×16/32×32/48×48 fonts |
Privacy Mask | 4 Regions |
Smart Features | Smart Surveillance Supported (Tripwire, Perimeter) |
Alarm Triggers | Motion Detection, IP Address Conflict |
Linkage Method | Trigger Capture |
Network Protocols | HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH, Unicast, RTSP, FTP |
System Compatibility | ONVIF (Profile S/T), CGI, Milestone, SDK, P2P (exclusive with Profile G) |
Remote Connection | Up to 2 |
Client Software | Easy7 Smart Client, EasyLive Plus |
Web Browser Support | IE, Firefox, Edge, Safari, Chrome |
Interface | 1 × RJ45 (10/100 Mbps self-adaptive Ethernet port) |
Alarm I/O | Not Available |
Reset Button | Not specified |
Onboard Storage | Not specified (no SD slot listed) |
Languages | 18 Languages: English, Chinese (Simplified/Traditional), Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebrew, Arabic, Vietnamese, German, Ukrainian, Portuguese |
Operating Temperature | -30°C ~ 60°C (no light activation) |
Operating Humidity | ≤ 95% RH (non-condensing) |
Storage Temperature | -30°C ~ 60°C |
Storage Humidity | ≤ 95% RH (non-condensing) |
Power Supply | DC 12V ±25%, Max 7.5W; PoE IEEE 802.3af, Max 8.5W |
Protection | Surge 4000V, IP67 |

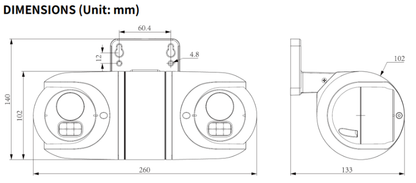

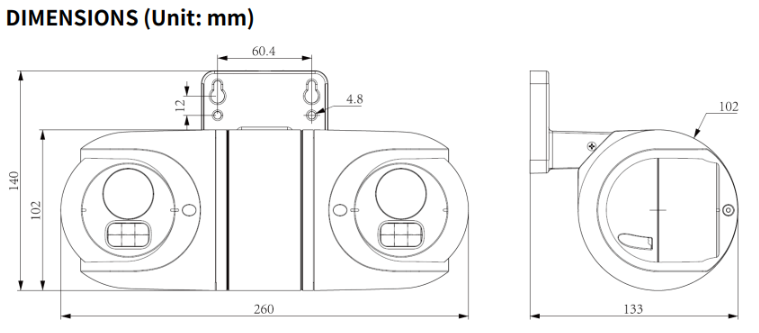

Dimensions (Body) | 260mm (L) × 133mm (W) × 140mm (H) |
Package Dimensions | 315mm × 145mm × 140mm |
Gross Weight | 0.87kg |
