TC-C32UN Spec:I8/A/E/Y/2.8-12mm/V4.2 Tiandy Superlite Bullet 2MP Motorized Lens 2.8-12mm Smart IR, IR Range: 80m Built-in Mic, SD Card Slot, Reset Button ·POE, IP67
TC-C32UN Spec:I8/A/E/Y/2.8-12mm/V4.2 Tiandy Superlite Bullet 2MP Motorized Lens 2.8-12mm Smart IR, IR Range: 80m Built-in Mic, SD Card Slot, Reset Button ·POE, IP67
Sold by: MA Tech

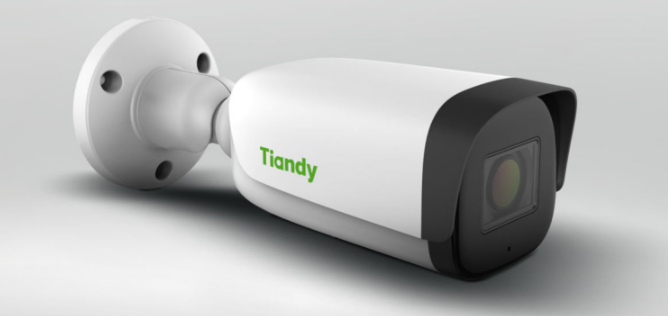

📷 Tiandy TC-C32UN – 2MP Motorized IR Bullet Camera
Model: TC-C32UN Spec: I8/A/E/Y/M/2.8-12mm
Series: Lite Series
Description:
The TC-C32UN is a professional-grade 2MP bullet camera designed for long-range surveillance with full metal housing, IP67 weather protection, and an 80m Smart IR range. It features a motorized 2.8–12mm lens, built-in microphone, and advanced analytics like tripwire and perimeter detection. Ideal for outdoor security deployments requiring flexibility and clarity, this model supports ONVIF protocols, PoE power, and local SD card storage up to 512GB.
TC-C32UN ek professional-grade 2MP bullet camera hai jo long-range surveillance ke liye design kiya gaya hai. Is camera ka full metal housing use mazid durable banata hai, aur IP67 rating ki wajah se yeh har tarah ke outdoor mosamon mein kaam kar sakta hai. Ismein 80 meter tak Smart IR ki range hai jo andheray mein bhi wazeh tasveer faraham karta hai.
Yeh camera motorized 2.8–12mm lens ke sath aata hai jo flexible zoom aur focus ki sahulat deta hai. Built-in microphone ke zariye audio bhi record hoti hai. Ismein advanced analytics features bhi hain jaise ke tripwire detection aur perimeter monitoring, jo ise intelligent surveillance ke liye ideal banate hain.
Camera ONVIF protocols ko support karta hai, PoE (Power over Ethernet) se power le sakta hai, aur 512GB tak local SD card storage ka option bhi deta hai — jo ise outdoor security deployments ke liye aik flexible aur powerful solution banata hai.
📋 Specifications Table
Category | Specification |
Model | TC-C32UN Spec: I8/A/E/Y/M/2.8-12mm |
Series | Lite Series |
Housing | Full Metal Housing |
Image Sensor | 1/2.9" CMOS |
Signal System | PAL / NTSC |
Min. Illumination | Color: 0.02Lux @ (F1.6, AGC ON), B/W: 0Lux with IR |
Shutter Time | 1s ~ 1/100,000s |
Day & Night | Dual IR Cut Filter with Auto Switch |
Wide Dynamic Range | Digital WDR |
Angle Adjustment | Pan: 0360°, Tilt: 075°, Rotate: 0~360° |
Lens Type | Motorized |
Focal Length | 2.8 – 12mm |
Lens Mount | M14 |
Aperture Range | F1.6 ~ F3.3 (Fixed) |
Field of View | Horizontal: 98° ~ 28° |
IR LEDs | 4 |
IR Range | Up to 80m |
IR Wavelength | 850nm |
White LEDs | Not Available |
Video Compression | S+265 / H.265 / H.264 |
Video Bit Rate | 32Kbps ~ 6Mbps |
Audio Compression | G.711 / G.711U / ADPCM |
Audio Bit Rate | 8K ~ 48Kbps |
Max. Resolution | 1920 × 1080 (2MP) |
Main Stream (PAL) | 25fps @ 1920×1080, 1280×720, 704×576, 640×480 |
Main Stream (NTSC) | 30fps @ 1920×1080, 1280×720, 704×480, 640×480 |
Sub Stream (PAL) | 25fps @ 704×576, 704×288, 640×360, 352×288 |
Sub Stream (NTSC) | 30fps @ 704×480, 704×240, 640×360, 352×240 |
Third Stream | Not Available |
Image Adjustments | Saturation, Brightness, Contrast, Sharpness (via client/web) |
Image Enhancements | BLC, 3D DNR, HLC, Smart Defog |
ROI | Not Available |
OSD | Up to 3 regions; 16×16, 32×32, 48×48 font sizes; Week/Date/Time display |
Picture Overlay | Not Available |
Privacy Mask | Yes, 4 regions |
Smart Features | Tripwire, Perimeter |
Alarm Triggers | Motion Detection, Mask Alarm, IP Conflict |
Early Warning (EW) | Not Available |
ANR (Edge Storage) | Yes (with Tiandy ANR NVR only) |
Protocols | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPv4, NTP, UDP, Telnet |
System Compatibility | ONVIF (Profile S/T/G), SDK, CGI (IE), P2P (mutually exclusive with Profile G) |
Remote Connections | Up to 7 simultaneous users |
Client Software | Easy7, EasyLive |
Web Version | Web5 |
Ethernet Interface | 1 × RJ45 (10/100 Mbps, self-adaptive) |
Audio I/O | Mic in |
Alarm I/O | Not Available |
Built-in Mic | Yes |
Reset Button | Yes |
SD Card Slot | MicroSD, up to 512GB |
Languages | 16 Languages incl. English, Chinese, Russian, Arabic, Spanish, Turkish, etc. |
Operating Temperature | -35°C ~ 65°C |
Operating Humidity | 0% ~ 95% RH (non-condensing) |
Power Supply | DC 12V ±25% / PoE (IEEE 802.3af) |
Power Consumption | Max. 9W (DC) / Max. 10W (PoE) |
Protection Level | IP67, Surge/Lightning Protection, Meets EN 55035:2017 |
Heater | Not Available |

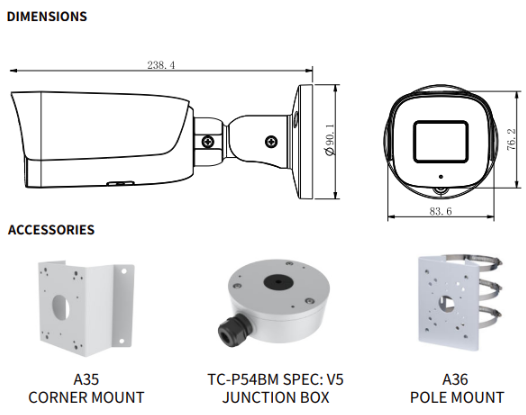

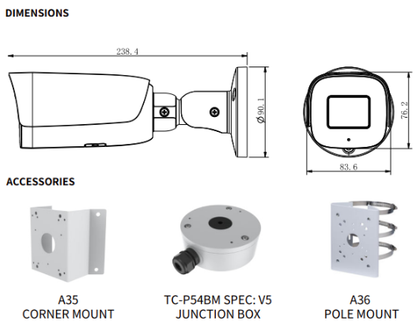

Dimensions | 239mm × 90mm × 90mm |
Weight | 0.93kg (2.05 lbs) |
