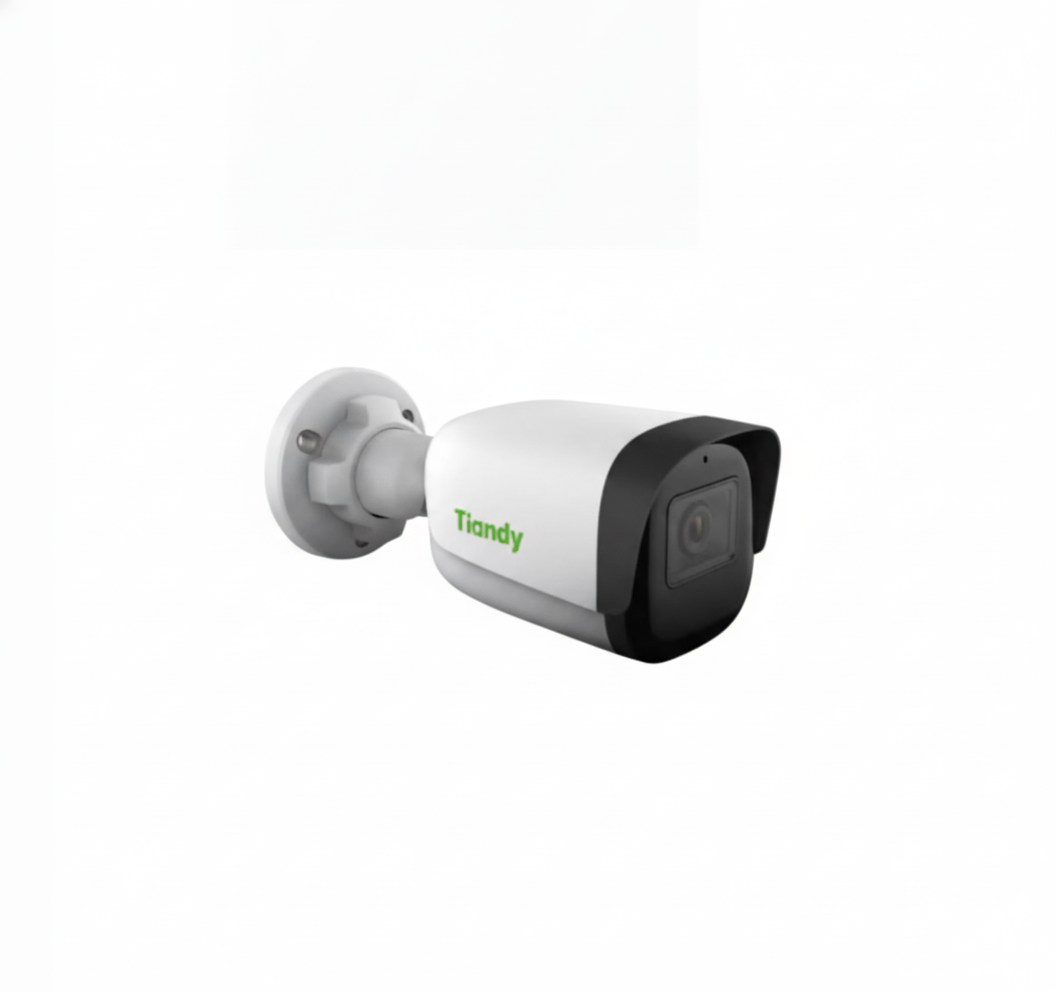

TC-C32WN Spec:I5/Y/WIFI/4mm/V4.1 Tiandy Spark Wi-Fi Bullet 2MP Fixed 4mm IP67

TC-C32WN Spec:I5/Y/WIFI/4mm/V4.1 Tiandy Spark Wi-Fi Bullet 2MP Fixed 4mm IP67

Sold by: MA Tech

Regular price PKR 12,317
Regular price Sale price PKR 12,317
Sale Sold out
Shipping calculated at checkout.

📄 Product Description

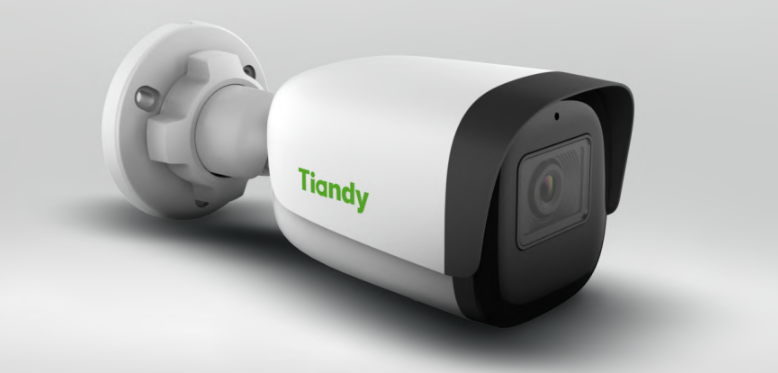

The Tiandy TC-C32WN from the Lite Series is a robust 2MP fixed-lens bullet camera designed for efficient and affordable surveillance. Delivering 1920×1080 resolution at 30fps, it combines clarity and performance with smart video compression using S+265, H.265, and H.264 standards to optimize bandwidth and storage.

Equipped with Smart IR LEDs providing up to 50 meters of night vision, the camera captures high-quality images even in low-light conditions down to 0.02 Lux (color). It supports intelligent video analytics such as tripwire and perimeter detection, making it suitable for basic perimeter security applications.

The housing is available in metal+plastic by default, with an optional full-metal build (denoted by "M"). It features a built-in microphone, reset button, and microSD card slot (up to 512GB) for local storage. With a weatherproof IP67 rating, wide operating temperature range (-35°C to 65°C), and PoE support, it’s ideal for outdoor deployments in diverse environments.


Tiandy TC-C32WN, jo ke Lite Series ka camera hai, ek mazboot aur reliable 2MP fixed-lens bullet camera hai jo surveillance ke liye efficient aur affordable solution provide karta hai.

Yeh camera 1920×1080 resolution @ 30fps par video deta hai, jisme clarity aur performance dono shaamil hain. Is mein advanced video compression standards jaise S+265, H.265, aur H.264 use hotay hain, jo bandwidth aur storage ki behtareen bachat karte hain.

Is mein Smart IR LEDs lage hain jo raat ko 50 meters tak clear night vision dete hain, aur low-light conditions mein 0.02 Lux (color) tak acha image capture karta hai.

Yeh camera intelligent video analytics ko support karta hai, jese ke tripwire aur perimeter detection, jis ki wajah se yeh basic perimeter security applications ke liye perfect hai.

Housing mein aam tor par metal+plastic use hota hai, magar full-metal housing bhi available hai (jo "M" se denote hota hai).

Is camera mein built-in microphone, reset button, aur microSD card slot (512GB tak storage ke liye) bhi maujood hai.

IP67 weatherproof rating, wide operating temperature range (-35°C se 65°C tak), aur PoE support ke sath, yeh camera outdoor aur mushkil environments mein install karne ke liye ideal hai.


📊 Technical Specifications – TC-C32WN (Lite Series)

Category Specification
Model TC-C32WN Spec: I5/E/Y/(M)/2.8mm(4mm)
Series Lite Series
Image Sensor 1/2.9" CMOS
Signal System PAL/NTSC
Max. Resolution 1920×1080 @30fps
Min. Illumination Color: 0.02Lux@F2.0, B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day/Night Mode Dual IR Cut Filter with Auto Switch
WDR Digital WDR
S/N Ratio -
IR LEDs / Range 2 pcs / Up to 50m
IR Wavelength 850nm
Lens Type Fixed
Focal Length Options 2.8mm / 4mm
Lens Mount M12
Aperture F2.0 (Fixed)
Field of View (FOV) 2.8mm: H: 97.4° / 4mm: H: 82.1°
Image Settings Saturation, Brightness, Contrast, Sharpness (via web/client)
Image Enhancements BLC, HLC, 3D DNR, Smart Defog
OSD 3 regions; Adjustable font (16×16, 32×32, 48×48)
Privacy Mask Yes, 4 regions
Video Compression S+265 / H.265 / H.264
Video Bitrate 32Kbps ~ 6Mbps
Audio Compression G.711 / G.711U / ADPCM
Audio Bitrate 8Kbps ~ 48Kbps
Main Stream PAL: 25fps (1920×1080 to 640×480), NTSC: 30fps (1920×1080 to 640×480)
Sub Stream PAL: 25fps, NTSC: 30fps (704×576 to 352×240)
Third Stream Not Available
Smart Features Tripwire, Perimeter
Alarm Triggers Motion Detection, Mask Alarm, IP Conflict
Reset Button Yes
Built-in Mic Yes
SD Card Slot Yes, up to 512GB
Audio I/O Mic in only
Alarm I/O N/A
Network Interface 1× RJ-45 (10/100M Ethernet)
Network Protocols TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, Multicast, IPv4, NTP, UDP, Telnet
System Compatibility ONVIF (S/T/G), SDK, P2P (excl. Profile G)
Remote Users Up to 7
Client Software Easy7, EasyLive
Web Access Web5
Web Client Languages 15 languages including English, Chinese, Russian, Arabic, etc.
Operating Temperature -35°C ~ 65°C
Operating Humidity 0 ~ 95% RH
Power Supply DC12V ±25%, PoE (IEEE 802.3af)
Power Consumption Max: 6W (12V); Max: 7W (PoE)
Protection IP67, Lightning, Surge & Voltage Transient (EN 55035:2017)
Housing Material Default: Metal + Plastic; Optional: Full Metal (M)

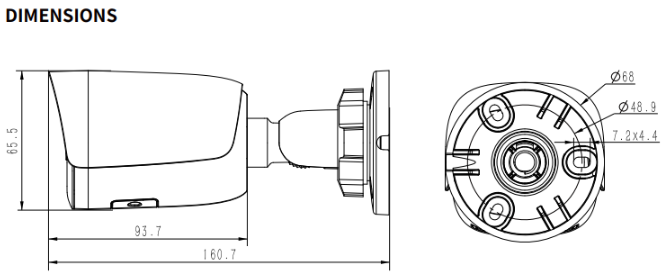

Dimensions 160.8×68×74.5mm (6.33"×2.68"×2.93")
Weight Metal+Plastic: 0.3kg; Metal: 0.48kg
Available Models TC-C32WN I5/E/Y/2.8MM / 4MM / M/2.8MM / M/4MM
