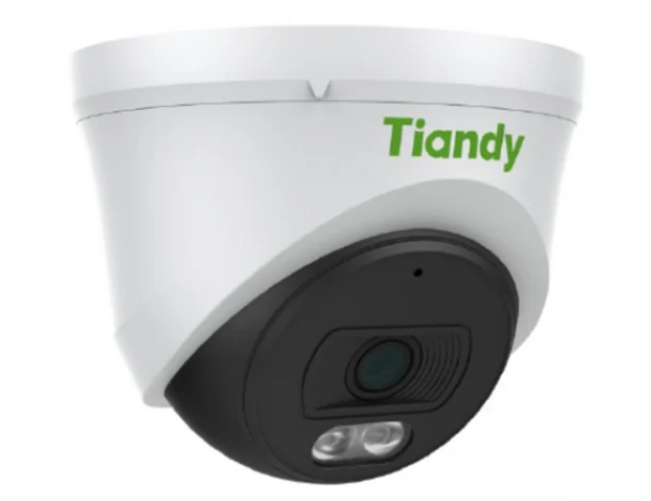

Tiandy TC‑C32XN — 2MP Fixed IR Turret Camera
Tiandy TC‑C32XN — 2MP Fixed IR Turret Camera
Sold by: MA Tech
TC-C32XN Spec:I3/E/Y/2.8mm/V5.1 Tiandy Spark S+265 Turret 2MP Fixed 2.8mm PoE with DC Cable
Lite Series | Model: TC-C32XN SPEC: I3/E/Y/(M)/2.8mm
🔑 Key Features
- 2MP Full HD (1920×1080 @ 30fps)
- Smart IR – Up to 30m night vision
- Compression: S+265 / H.265 / H.264
- Built-in Microphone
- Analytics: Tripwire & Perimeter Detection
- Weatherproof: IP67-rated
- Wide Viewing Angle: 97.4° horizontal (2.8mm lens)
- Power: PoE (802.3af) or DC 12V
- Onboard Storage: Up to 512 GB microSD
- Operating Temperature: -35°C ~ +65°C
📊 Specifications
🖼️ Camera
- Sensor: 1/2.9″ CMOS
- Min. Illumination:
- Color: 0.02Lux @ F2.0 (AGC ON)
- B/W: 0Lux (with IR on)
- WDR: Digital WDR
- IR Range: 30m
- IR LEDs: 2
- IR Wavelength: 850nm
🔍 Lens
- Type: Fixed 2.8mm (M12 mount)
- Aperture: F2.0
- FOV: 97.4° horizontal
📹 Video
-
Resolutions:
- Main Stream: 1920×1080, 1280×720, etc. @ 25/30fps
- Sub Stream: 704×576, 640×360, etc.
- Bitrate: 32Kbps ~ 6Mbps
- Audio Compression: G.711A/U, ADPCM
- SNR: >85dB
- THD: <0.1%
🔐 Smart Functions
- Motion Detection
- Tripwire Detection
- Perimeter Intrusion
- Privacy Masking (up to 4 zones)
- Smart Defog
🔌 Interfaces
- Network Port: 1x RJ45 (10/100M Ethernet)
- Audio: Built-in mic
- Reset Button: Yes
- MicroSD Slot: Up to 512 GB
- Protocols: ONVIF (Profile S/T/G), TCP/IP, FTP, HTTP, DNS, P2P, etc.
⚙️ Power & Environmental
-
Power Supply:
- DC 12V ±25%
- PoE (IEEE 802.3af)
-
Consumption:
- 6W (DC)
- 7W (PoE)
- Operating Temp: -35°C ~ +65°C
- Humidity: 0 ~ 95% RH
- Protection: IP67, surge & lightning protection
📏 Dimensions & Weight
- Size: Ø116.6 × 83.7 mm
- Weight:
- Metal+Plastic: 0.34kg
- Full Metal: 0.47kg
🧩 Mounting Accessories (Optional)
- A29: Wall Mount
- A29 + TC-P54BM: Junction Box
- A36: Pole Mount
- A35: Corner Mount
Quick Overview Table
Feature | Specification |
Image Sensor | 1/2.8″ CMOS (2 MP) |
Video | 1080p @ 30 fps, S+265/H.265/H.264 |
Low-Light Performance | 0.02 Lux (Color), 0 Lux with IR (B/W) |
Night Vision | Up to 30 m via Smart IR |
Audio | Built-in mic, G.711A/U, ADPCM |
Analytics | Tripwire, Perimeter Detection |
Housing | Metal + Plastic (metal variant available) |
Operating Temp | -30 °C to +60 °C, ≤95% RH |
Protection | IP67, lightning & surge protected |
Lens (FOV) | 2.8 mm, ~103° H × ~57° V × ~118° Diagonal |
Power | DC 12 V / PoE (802.3af) |
Storage | MicroSD up to 512 GB |
Network Support | ONVIF Profile S/T/G, P2P, RJ45 |
